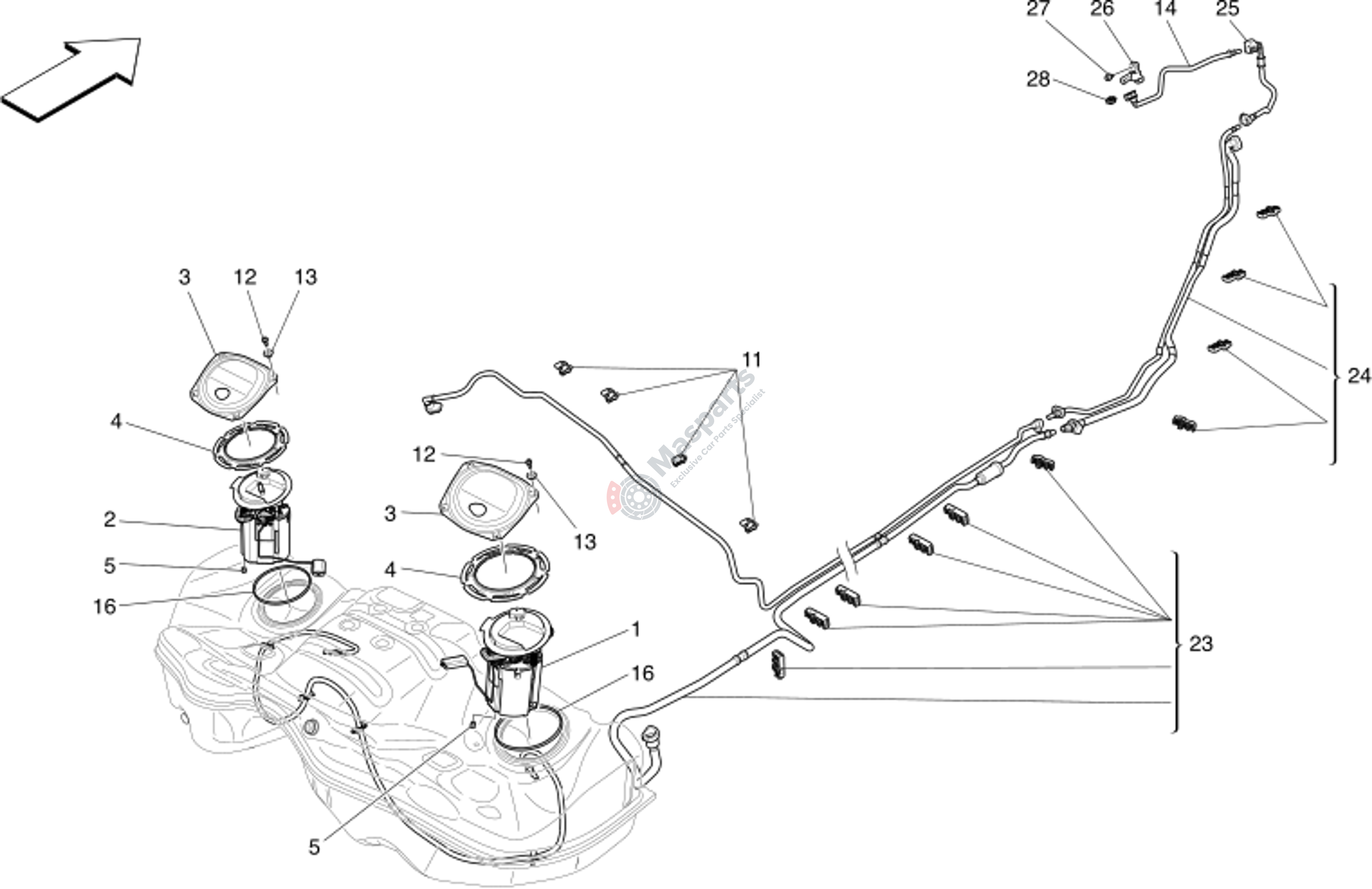

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670003733 | Rh Fuel Level Indicator (V8 |
€385,28 |
|
|
| 2 | M-670178911 | Lh Fuel Pump (V6 Gasoline) |
€483,65 |
|
|
| 3 | M-670003258 | Fuel Tank Slot Cover |
€15,27 |
|
|
| 4 | M-670001397 | Fastening Ring Nut |
€38,18 |
|
|
| 5 | M-670009292 | Fuel Adjustment Dowel |
€2,80 |
|
|
| 11 | M-670005082 | Spring |
€1,35 |
|
|
| 13 | M-675000452 | Small Block Trim Screw Retai |
€1,04 |
|
|
| 14 | M-675001000 | Engine Compartment Fuel Pipe |
€80,16 |
|
|
| 16 | M-670001398 | Gasoline Pump Gasket |
€17,11 |
|
|
| 23 | M-670105399 | Pipe |
€159,80 |
|
|
| 24 | M-670174690 | Underfloor Fuel Pipe |
€105,40 |
|
|
| 25 | M-670174691 | Pipe |
€33,07 |
|
|
| 26 | M-675000998 | Bracket |
€3,01 |
|
|
| 27 | M-675000999 | Screw |
€0,60 |
|
|
| 28 | M-675000076 | Clip |
€0,74 |
|
