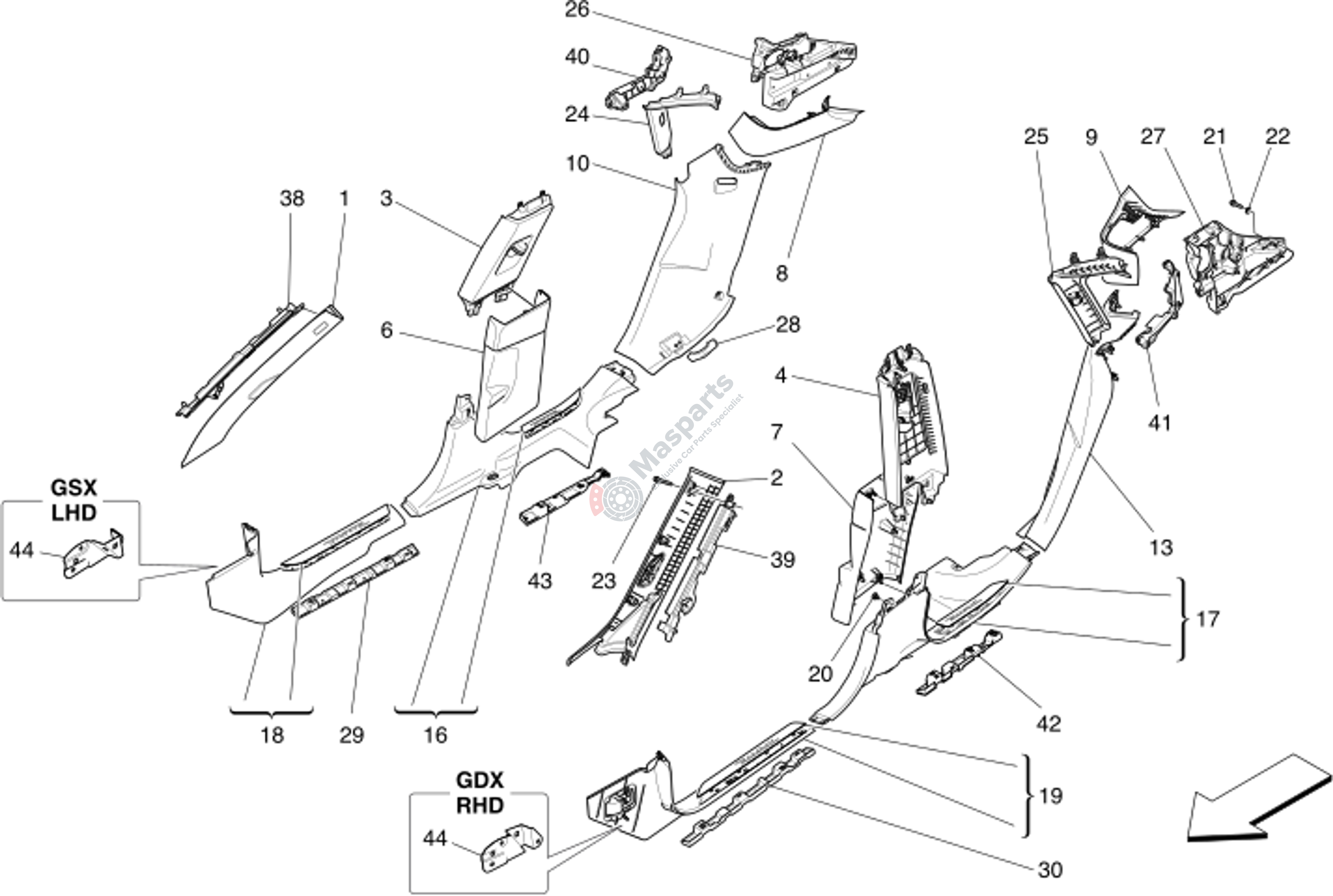

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 20 | M-675000294 | Pin |
$2.45 |
|
|
| 21 | M-675000432 | Screw |
$2.23 |
|
|
| 22 | M-675000647 | Washer |
$2.96 |
|
|
| 23 | M-675000245 | Screw |
$1.72 |
|
|
| 26 | M-670034584 | Rh Rear Bracket |
$34.11 |
|
|
| 27 | M-670174723 | Lh Rear Bracket |
$45.76 |
|
|
| 38 | M-670034617 | Rh Front Post Covering Brack |
$34.11 |
|
|
| 39 | M-670034618 | Lh Front Post Covering Brack |
$34.11 |
|
|
| 40 | M-670035050 | Rh Pillar Trim Bracket |
$28.07 |
|
|
| 41 | M-670035051 | Lh Pillar Trim Bracket |
$28.07 |
|
|
| 42 | M-670032821 | Lh Bracket |
$13.98 |
|
|
| 43 | M-670032820 | Rh Bracket |
$13.98 |
|
