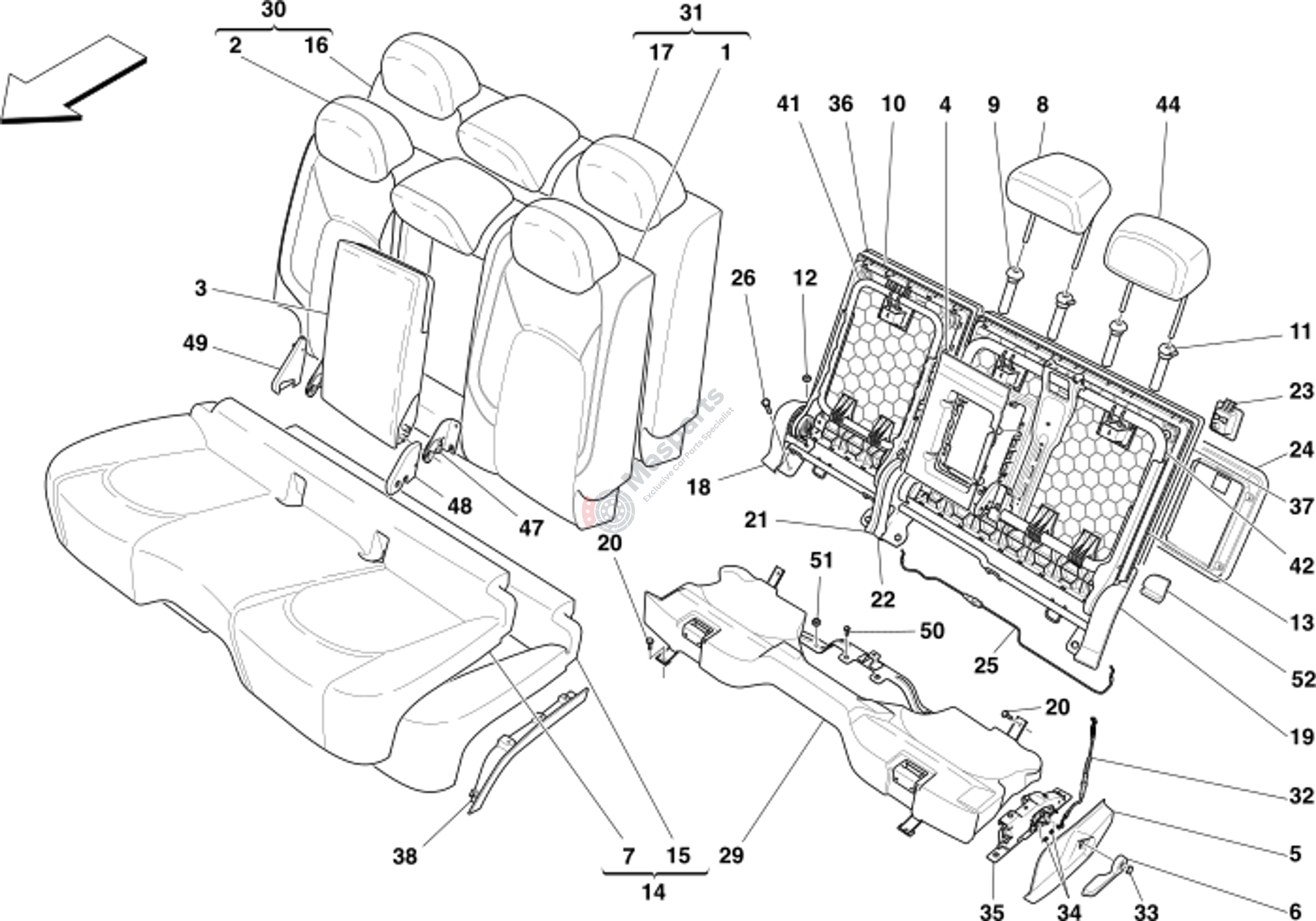

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 10 | M-673005531 | Rear Plastic Panel Rh Black |
$77.43 |
|
|
| 12 | M-675000184 | Nut |
$1.74 |
|
|
| 13 | M-673005532 | Rear Plastic Panel Lh Black |
$77.43 |
|
|
| 15 | M-673012880 | Rear Cushion Padding |
$216.27 |
|
|
| 16 | M-673005521 | Rh Seatback Padding |
$176.15 |
|
|
| 17 | M-673005522 | Lh Seatback Padding |
$251.50 |
|
|
| 20 | M-675000655 | Screw |
$1.86 |
|
|
| 25 | M-673005551 | Bowden Cable |
$22.18 |
|
|
| 26 | M-675000655 | Screw |
$1.86 |
|
|
| 29 | M-670176440 | Rear Cushion Structure Epp |
$455.45 |
|
|
| 32 | M-673006855 | Bowden Cable |
$22.18 |
|
|
| 34 | M-673005517 | End Stop Rubber |
$6.88 |
|
|
| 35 | M-673005552 | Rh Recliner Mechanism |
$179.00 |
|
|
| 41 | M-673005519 | Rh Seatback Structure 40% |
$547.60 |
|
|
| 42 | M-673012879 | Lh Seatback Structure |
$895.02 |
|
|
| 47 | M-673005565 | Armrest Bracket |
$25.95 |
|
|
| 50 | M-675000111 | Screw |
$2.57 |
|
|
| 51 | M-675000043 | Nut |
$1.07 |
|
