Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

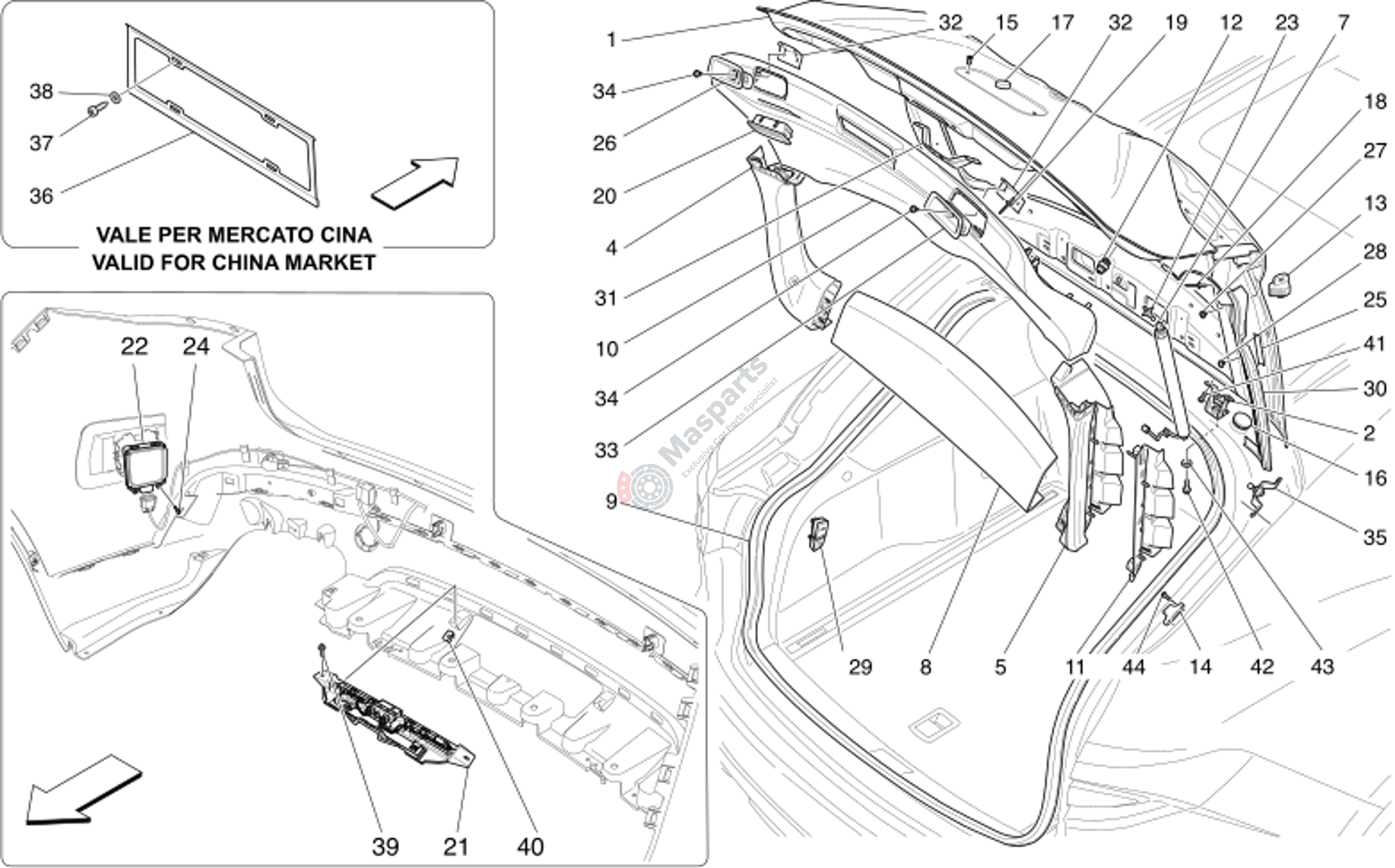

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673005572 | Rear Liftgate |
$1,639.22 |
|
|
| 2 | M-675000594 | Hinge |
$22.67 |
|
|
| 7 | M-670034958 | Decklid Gas Spring (Jrc-) |
$48.09 |
|
|
| 9 | M-670101139 | Luggage Compartment Seal |
$140.87 |
|
|
| 11 | M-670035095 | Rh Bracket |
$17.05 |
|
|
| 12 | M-675000595 | Antivibrating Pad |
$4.53 |
|
|
| 13 | M-670220974 | Pad |
$5.40 |
|
|
| 14 | M-670038107 | Pad |
$4.45 |
|
|
| 15 | M-670005149 | Rivet |
$2.93 |
|
|
| 16 | M-670039357 | Cap None |
$4.45 |
|
|
| 17 | M-675000516 | Rubber For Rear License Plat |
$1.32 |
|
|
| 18 | M-675000323 | Rivet |
$1.82 |
|
|
| 19 | M-675000404 | Cpl. Tv Control Station Fixi |
$1.43 |
|
|
| 21 | M-670109049 | Levante Hfa Sensor |
$434.66 |
|
|
| 22 | M-670174821 | Ecu Buy Lbss-Left Blind Spot |
$790.16 |
|
|
| 23 | M-670035040 | Ball Pin |
$19.38 |
|
|
| 24 | M-675000693 | Screw |
$1.01 |
|
|
| 25 | M-675000630 | Rubber |
$2.29 |
|
|
| 27 | M-670036725 | Screw |
$2.88 |
|
|
| 28 | M-675000629 | Fastening Clip |
$2.08 |
|
|
| 31 | M-670034970 | Fastening Bracket |
$5.61 |
|
|
| 32 | M-670038078 | Bracket |
$7.94 |
|
|
| 34 | M-670006846 | Screw |
$2.11 |
|
|
| 39 | M-675000742 | Screw |
$0.61 |
|
|
| 40 | M-675000741 | Bracket |
$1.09 |
|
|
| 41 | M-675000087 | Screw |
$3.46 |
|
|
| 42 | M-675000801 | Screw With Washer |
$1.81 |
|
|
| 43 | M-675000798 | Washer |
$1.11 |
|
|
| 44 | M-675001957 | Screw |
$1.48 |
|
