The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

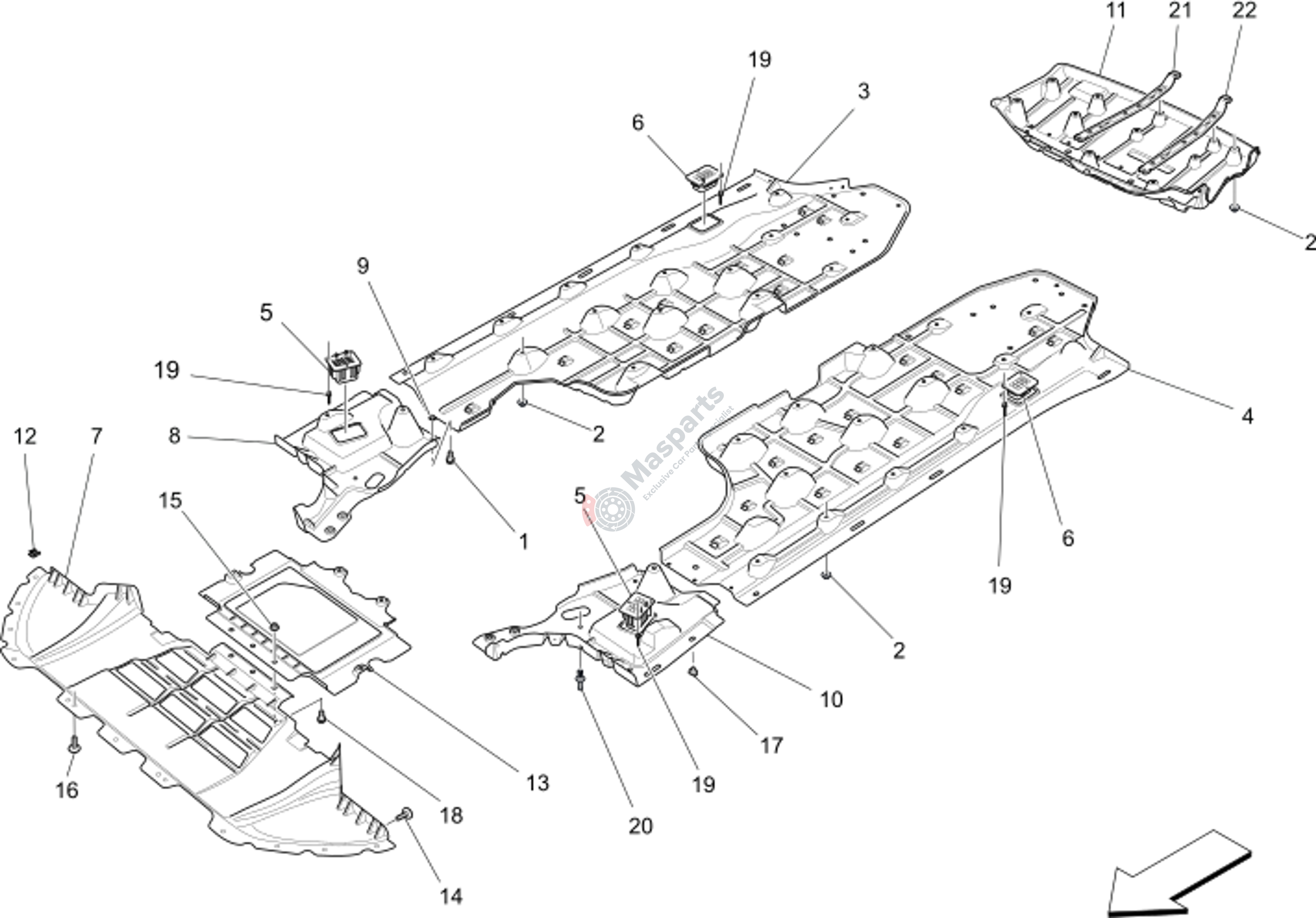

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675000228 | Screw |
$2.23 |
|
|
| 2 | M-675000324 | Special Nut |
$1.24 |
|
|
| 5 | M-670034356 | Vehicle Lifting Front Suppor |
$14.83 |
|
|
| 6 | M-670034358 | Vehicle Lifting Rear Support |
$11.86 |
|
|
| 7 | M-670032424 | Front Underbody Guard |
$309.29 |
|
|
| 8 | M-670032420 | Rh Front Underbody Guard |
$37.18 |
|
|
| 9 | M-675000341 | Undercover Screw Fixing Brac |
$2.05 |
|
|
| 10 | M-670032421 | Lh Front Underbody Guard |
$37.18 |
|
|
| 11 | M-670107814 | Rear Aerodynamic Cover |
$87.81 |
|
|
| 12 | M-675000020 | Lower Shield Fastening Clip |
$6.95 |
|
|
| 13 | M-670102908 | Shield |
$108.04 |
|
|
| 14 | M-670009112 | Fastening Pin |
$3.60 |
|
|
| 15 | M-675000442 | Nut |
$1.44 |
|
|
| 16 | M-670036972 | Special Screw |
$2.88 |
|
|
| 17 | M-675000058 | Fastening Clip |
$2.75 |
|
|
| 18 | M-675000342 | Special Screw With Washer |
$2.58 |
|
|
| 19 | M-675000323 | Rivet |
$1.82 |
|
|
| 20 | M-675000150 | Fixing Button. |
$0.96 |
|
|
| 21 | M-670037056 | Strap Urea Tank |
$18.43 |
|
|
| 22 | M-670037057 | Strap Urea Tank |
$18.43 |
|
