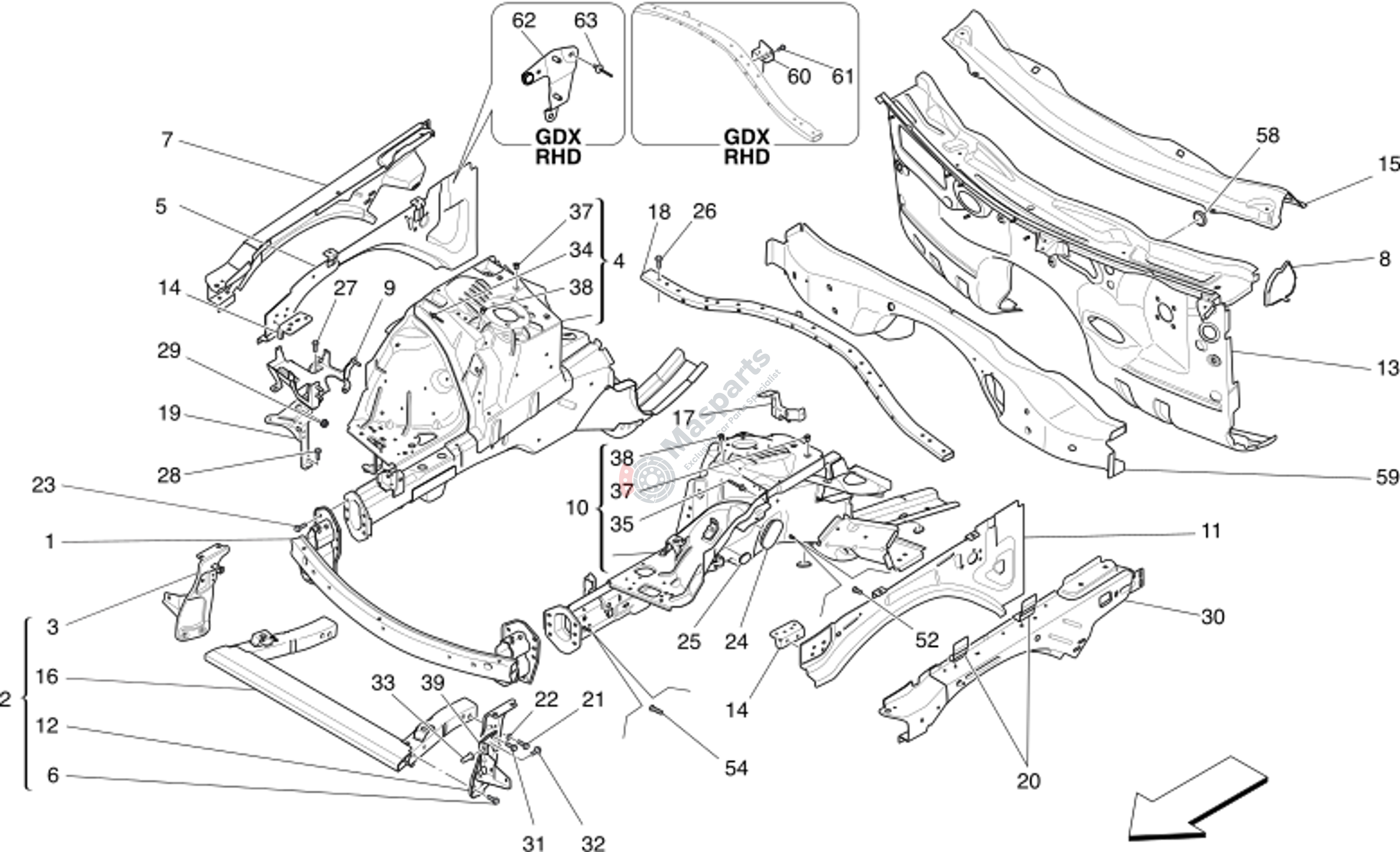

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673007200 | Front Cross Member Ass. |
$548.02 |
|
|
| 3 | M-670175518 | Rh Bracket |
$36.22 |
|
|
| 4 | M-673010951 | Rh Complete Front Control Ro |
$2,215.56 |
|
|
| 5 | M-673005729 | Rh Upper Strut Frame Assembl |
$167.34 |
|
|
| 6 | M-675000469 | Screw |
$1.20 |
|
|
| 7 | M-673010873 | Rh Upper Strut Box Section |
$180.06 |
|
|
| 9 | M-670104471 | Fuse Box Mounting Bracket |
$34.95 |
|
|
| 10 | M-673014099 | Lh Complete Front Control Ro |
$2,367.25 |
|
|
| 11 | M-673005658 | Lh Upper Rail Frame Assembly |
$180.06 |
|
|
| 12 | M-670175519 | Lh Bracket |
$34.11 |
|
|
| 13 | M-673009450 | Lower Instrument Panel |
$427.92 |
|
|
| 14 | M-670034251 | Headlamp Support Bracket |
$28.07 |
|
|
| 15 | M-673005662 | Windscreen Lower Cross Membe |
$82.40 |
|
|
| 16 | M-670175522 | Pedestrian Impact Crossmembe |
$405.14 |
|
|
| 18 | M-670222382 | Lhd Suspension Connecting Cr |
$89.35 |
|
|
| 20 | M-670034858 | Fender Bracket |
$3.01 |
|
|
| 21 | M-670036974 | Special Screw |
$4.93 |
|
|
| 22 | M-675000105 | Washer |
$2.17 |
|
|
| 23 | M-670035227 | Screw And Washer |
$2.40 |
|
|
| 24 | M-670004843 | Plug |
$3.60 |
|
|
| 25 | M-670004844 | Plug |
$3.01 |
|
|
| 26 | M-675000470 | Screw |
$1.30 |
|
|
| 27 | M-675000382 | Screw |
$2.41 |
|
|
| 28 | M-675000421 | Screw |
$2.04 |
|
|
| 29 | M-675000095 | Nut |
$0.76 |
|
|
| 30 | M-673010874 | Lh Upper Strut Box Section |
$177.13 |
|
|
| 31 | M-675000469 | Screw |
$1.20 |
|
|
| 32 | M-675000469 | Screw |
$1.20 |
|
|
| 33 | M-670002185 | Rivet |
$2.88 |
|
|
| 37 | M-670005395 | Rivet |
$3.60 |
|
|
| 38 | M-670006571 | Rivet |
$2.88 |
|
|
| 39 | M-670034982 | Bracket |
$4.45 |
|
|
| 52 | M-675000623 | Special Screw |
$1.68 |
|
|
| 58 | M-670030073 | Rubber Plug |
$1.68 |
|
|
| 59 | M-673008198 | Front Crossmember |
$225.08 |
|
