Diagram image not available

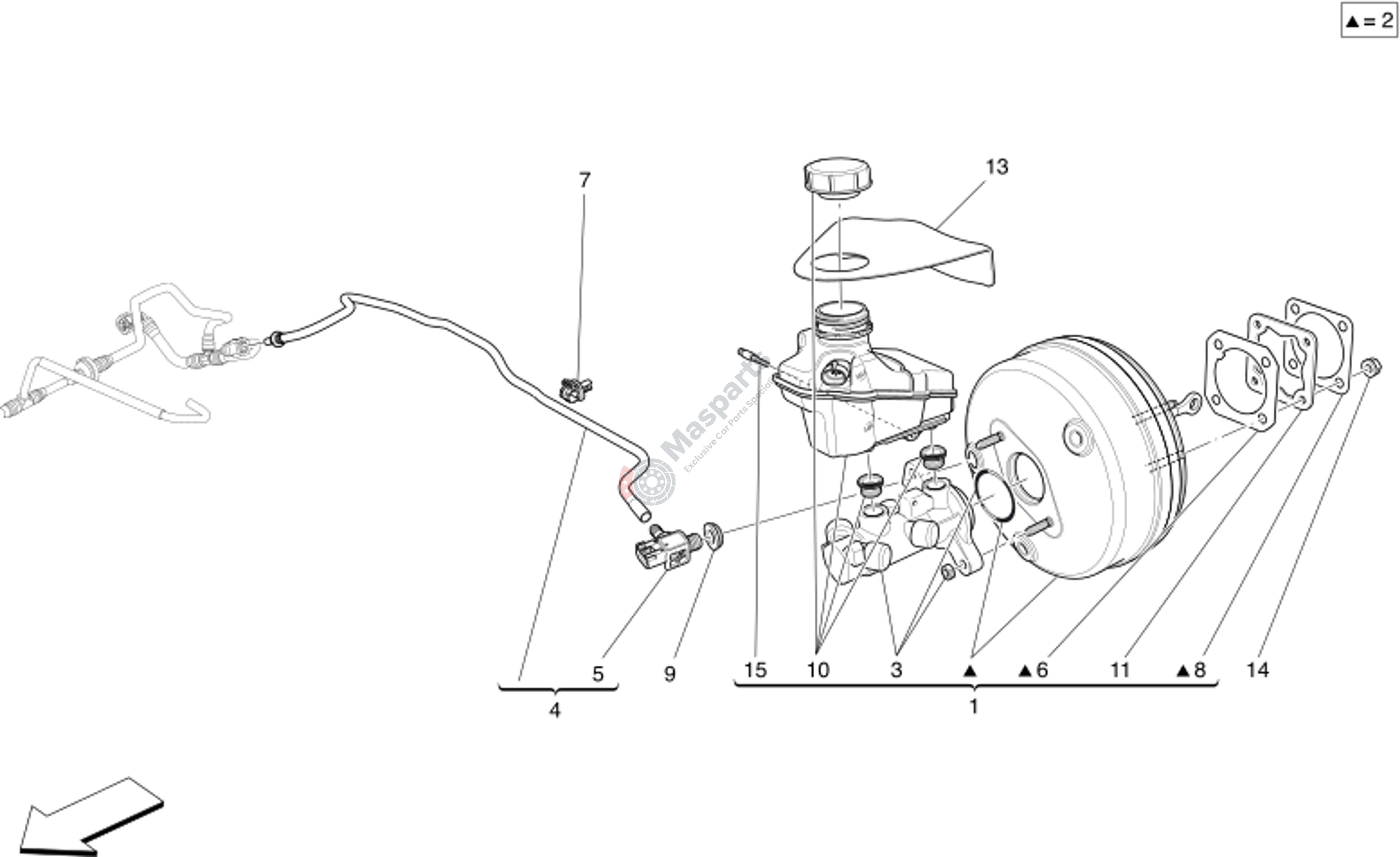

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670036704 | Power Brakes Assy |
$417.61 |
|
|
| 2 | M-673005988 | Servo Brake M161 |
$611.04 |
|
|
| 3 | M-673005989 | Brake Pump Lhd M161 |
$448.36 |
|
|
| 4 | M-670006381 | Complete Vacuum Pipe (Lhd) |
$73.68 |
|
|
| 5 | M-675000038 | Pressure Transmitter |
$72.89 |
|
|
| 6 | M-673002019 | Brake Booster Gasket |
$40.32 |
|
|
| 7 | M-675000013 | Clip |
$1.00 |
|
|
| 8 | M-673009227 | Gasket |
$2.47 |
|
|
| 9 | M-673002073 | Gasket |
$12.24 |
|
|
| 10 | M-673007334 | Brake Booster Tank |
$187.48 |
|
|
| 11 | M-673009226 | Spacer |
$43.27 |
|
|
| 13 | M-670153081 | Water Shield |
$7.00 |
|
|
| 14 | M-675001939 | Nut M8 With Washer |
$2.03 |
|
