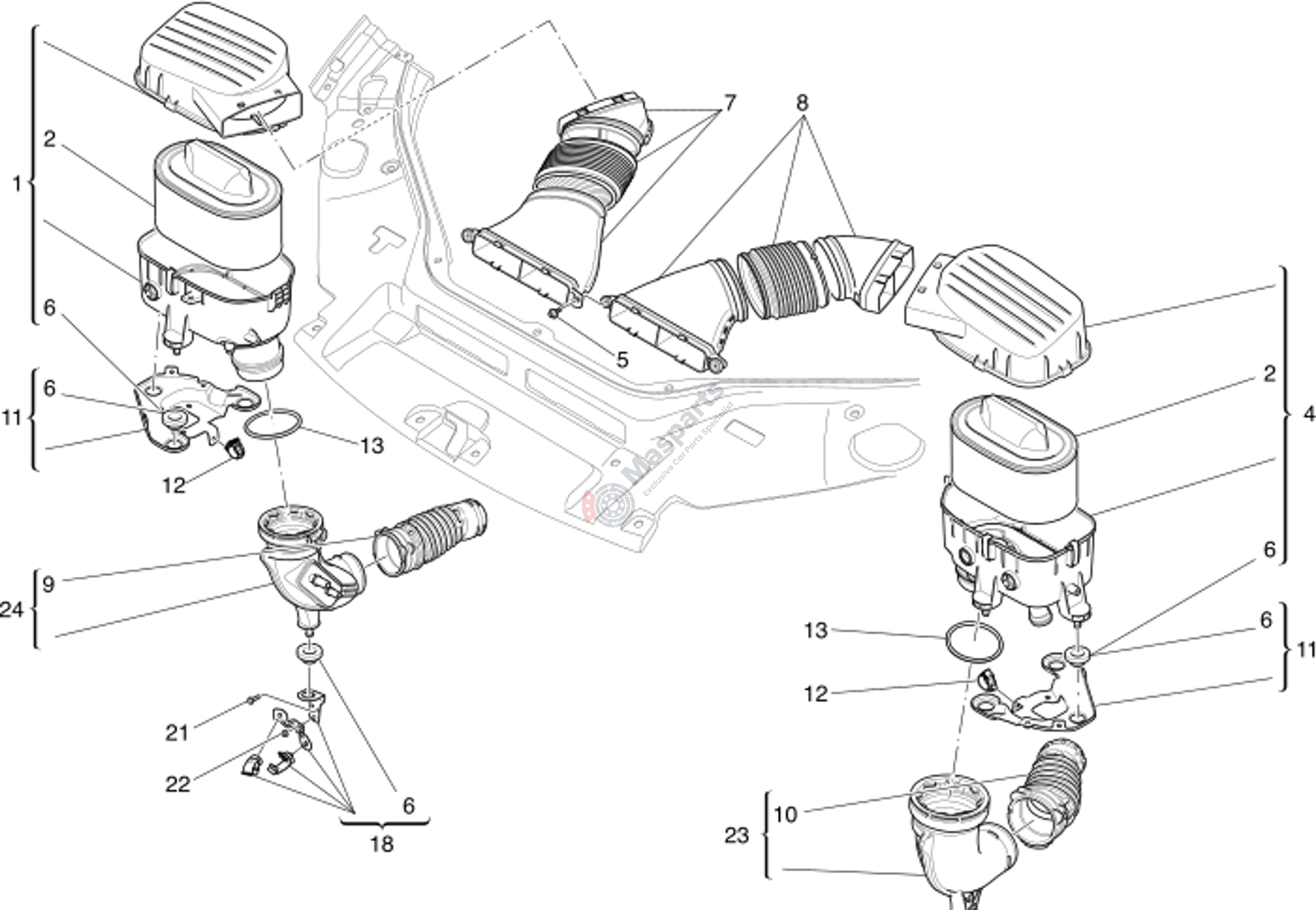

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670038725 | Rh Filter Box Assembly |
$418.84 |
|
|
| 2 | M-670001545 | Air Filter |
$59.32 |
|
|
| 4 | M-670038727 | Lh Filter Box Assembly |
$418.84 |
|
|
| 5 | M-675000776 | Screw |
$2.05 |
|
|
| 6 | M-670005249 | Bushing |
$14.30 |
|
|
| 7 | M-670031925 | Upper Rh Air Intake Sleeve |
$130.15 |
|
|
| 8 | M-670031926 | Upper Lh Air Intake Sleeve |
$130.15 |
|
|
| 11 | M-670038730 | Filter Box Bracket |
$15.57 |
|
|
| 12 | M-675000135 | Clip |
$0.96 |
|
|
| 13 | M-670005248 | Circlip |
$95.22 |
|
|
| 18 | M-670102965 | Rh Clean Air Intake Sleeve B |
$14.30 |
|
|
| 19 | M-670102966 | Lh Clean Air Intake Sleeve B |
$3.01 |
|
|
| 21 | M-675000308 | Screw |
$1.63 |
|
|
| 23 | M-670105377 | Lh Clean Air Intake Sleeve |
$339.58 |
|
|
| 24 | M-670105374 | Lower Rh Air Intake Sleeve |
$339.58 |
|
