Diagram image not available

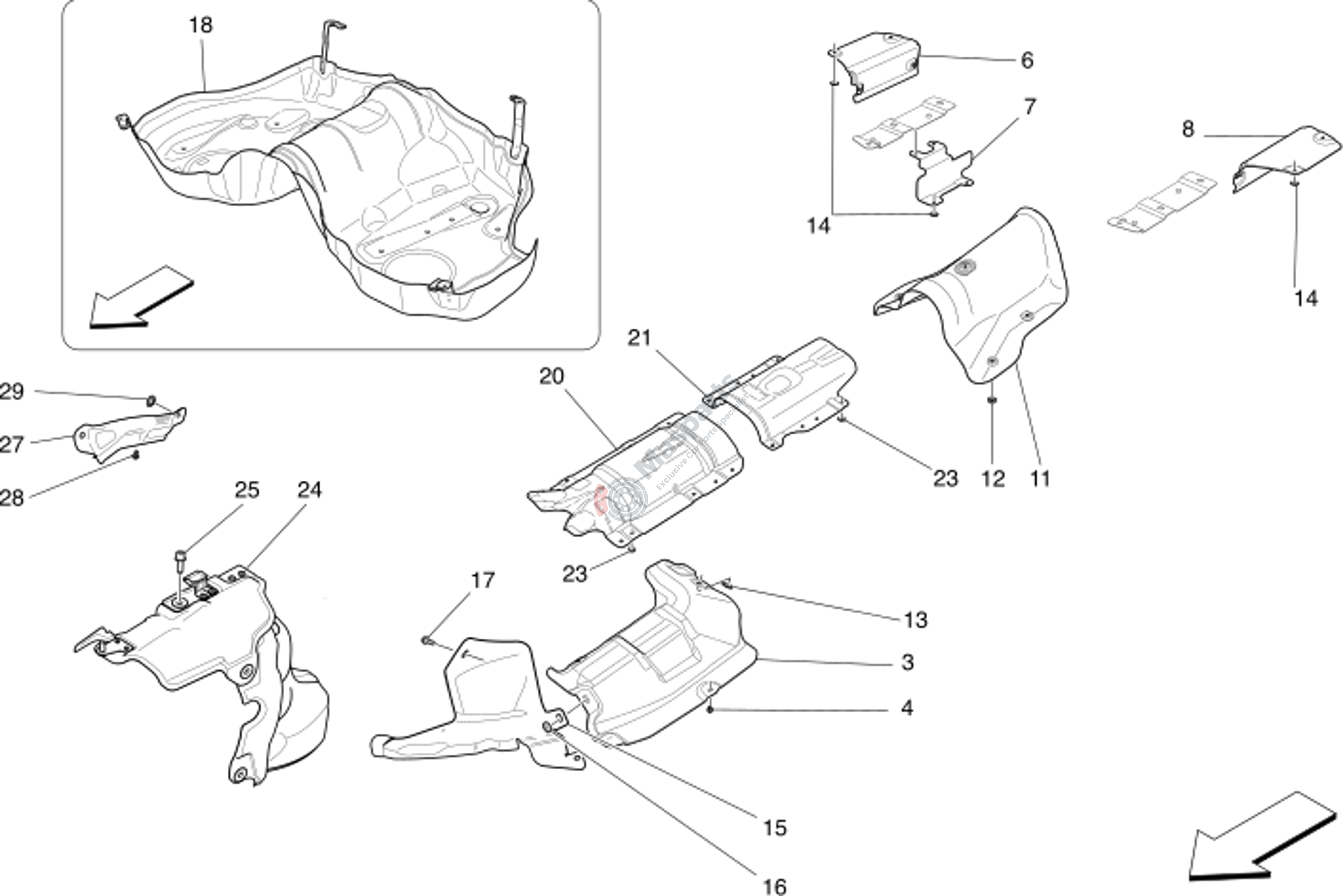

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 3 | M-670160340 | L.H.Silencer Heat Shield |
€34,22 |
|
|
| 4 | M-675000136 | Screw |
€1,99 |
|
|
| 6 | M-670182575 | Heat Shield |
€25,12 |
|
|
| 7 | M-670031941 | Rh Silencer Heat Shield |
€19,14 |
|
|
| 8 | M-670182574 | Heat Shield |
€25,12 |
|
|
| 11 | M-670037228 | Tank Heat Shield |
€70,11 |
|
|
| 12 | M-670003758 | Fixing Button |
€2,50 |
|
|
| 13 | M-675000047 | Washer |
€4,88 |
|
|
| 14 | M-675000047 | Washer |
€4,88 |
|
|
| 15 | M-670106027 | Shield |
€30,54 |
|
|
| 16 | M-675000047 | Washer |
€4,88 |
|
|
| 17 | M-675000136 | Screw |
€1,99 |
|
|
| 20 | M-670031970 | Front Drive Shaft Guard |
€47,75 |
|
|
| 21 | M-670162239 | Drive Shaft Central Guard |
€24,56 |
|
|
| 23 | M-675000047 | Washer |
€4,88 |
|
|
| 24 | M-670154504 | Heat Shield |
€28,80 |
|
|
| 25 | M-675000088 | Screw |
€2,24 |
|
