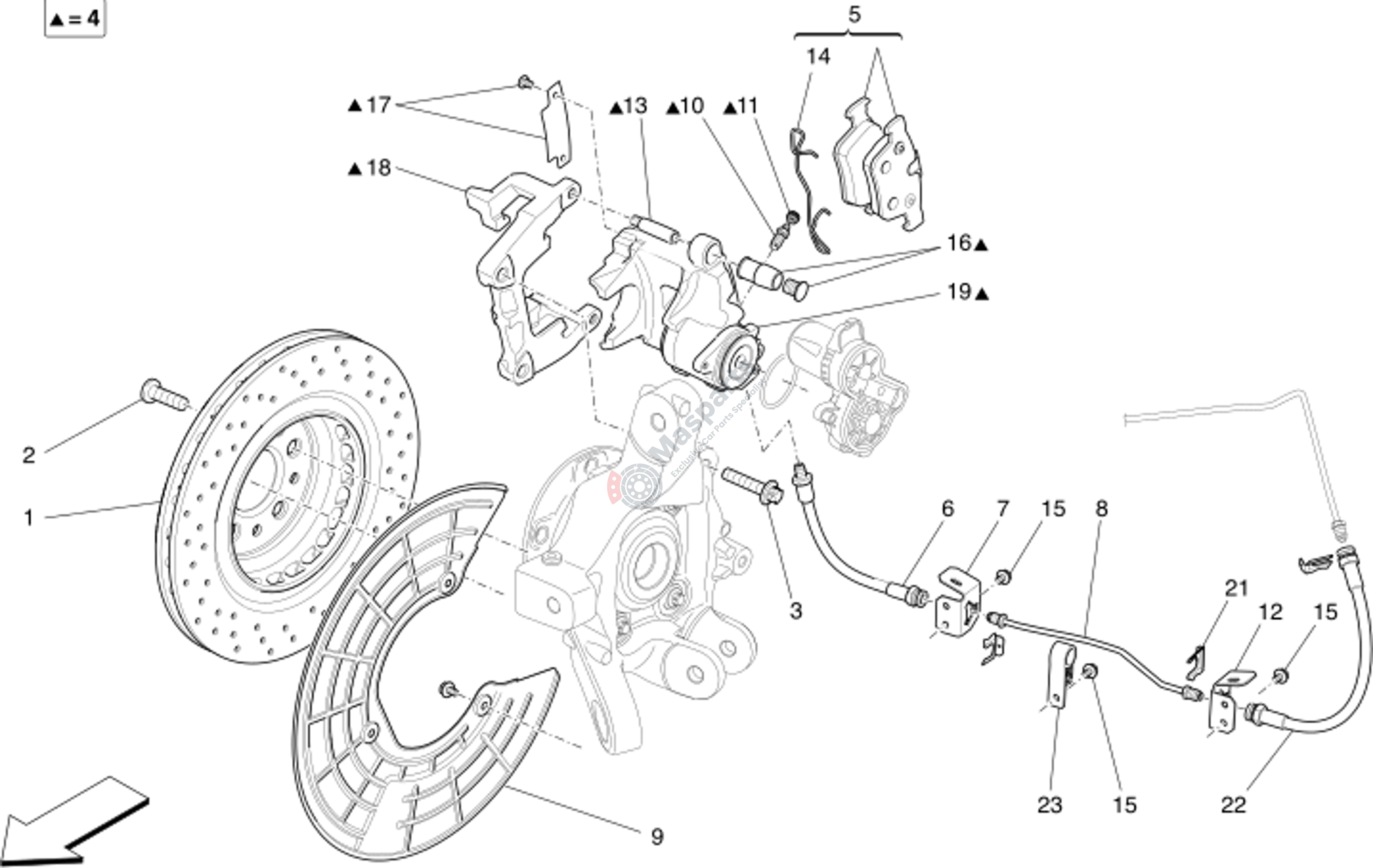

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-675000081 |
Screw
|
€4,28 |
|
|
| 3 | M-670005715 | Screw |
€3,34 |
|
|
| 5 | M-673012303 | Rear Pads Kit |
€150,00 |
|
|
| 6 | M-670155393 | Flexible Pipe To Rear Calipe |
€9,01 |
|
|
| 7 | M-670035058 | Brake Pipe Bracket |
€2,61 |
|
|
| 8 | M-670032067 | Rh Rear Caliper Rigid Pipe |
€38,51 |
|
|
| 10 | M-673004422 | Bleed Screw |
€24,93 |
|
|
| 11 | M-673004423 | Dust Cap |
€17,11 |
|
|
| 12 | M-670033831 | Bracket |
€6,90 |
|
|
| 13 | M-673005441 | Locating Pin |
€15,46 |
|
|
| 14 | M-673005442 | Housing Clip |
€20,91 |
|
|
| 15 | M-675000126 | Screw |
€1,42 |
|
|
| 16 | M-673005434 | Bushing Kit |
€14,81 |
|
|
| 21 | M-675000276 | Plate |
€0,81 |
|
|
| 22 | M-670155392 | Flexible Pipe To Rear Calipe |
€10,20 |
|
|
| 23 | M-670039482 | Bracket |
€3,13 |
|
