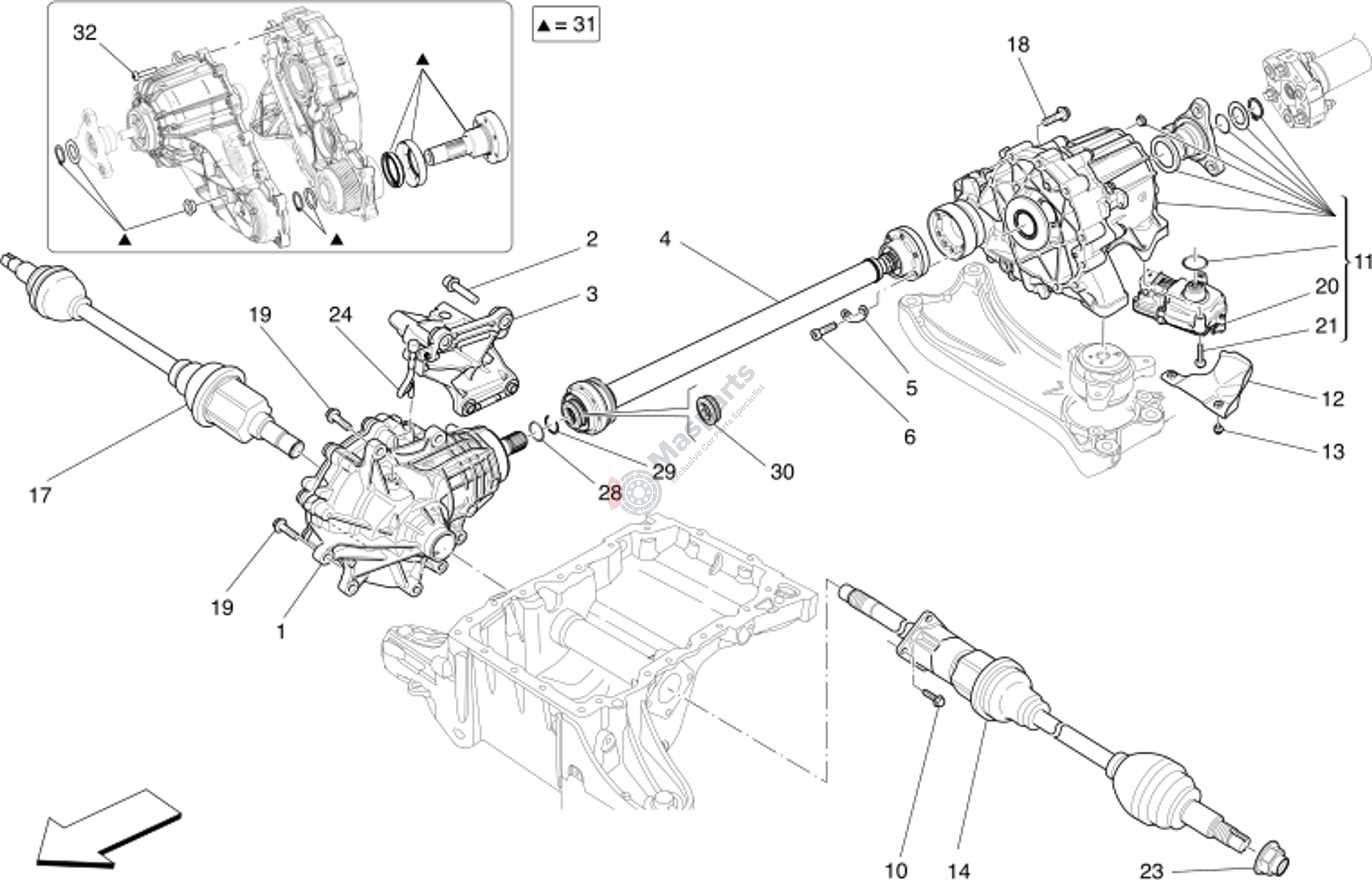

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670104057 | Cpl Front Differential |
$1,971.15 |
|
|
| 2 | M-675001128 | Screw |
$2.52 |
|
|
| 3 | M-670162242 | Bracket |
$112.61 |
|
|
| 4 | M-670162240 | Front Transmission Crankshaf |
$685.29 |
|
|
| 5 | M-670003772 | Plate |
$3.76 |
|
|
| 6 | M-675000583 | Screw |
$2.48 |
|
|
| 10 | M-675000384 | Screw |
$5.20 |
|
|
| 11 | M-670162248 | Transfer Case |
$1,449.94 |
|
|
| 12 | M-670162241 | Heat Shield |
$33.10 |
|
|
| 13 | M-675000365 | Screw |
$2.70 |
|
|
| 14 | M-670301924 | Semiasse Compl. Asse Ant. Sx |
$1,008.10 |
|
|
| 17 | M-670301923 | Semiasse Compl. Asse Ant. Dx |
$739.99 |
|
|
| 18 | M-675000386 | Screw |
$3.79 |
|
|
| 19 | M-675000385 | Screw |
$3.72 |
|
|
| 20 | M-670181796 | Tc Ecu |
$566.25 |
|
|
| 21 | M-673009049 | Hexalobular Screw |
$5.79 |
|
|
| 23 | M-675000138 | Nut |
$9.11 |
|
|
| 24 | M-670162243 | Pipe |
$22.49 |
|
|
| 28 | M-673008007 | O-Ring |
$5.27 |
|
|
| 29 | M-673008008 | Snap-Ring |
$5.68 |
|
|
| 30 | M-675000719 | Gasket |
$2.90 |
|
