Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

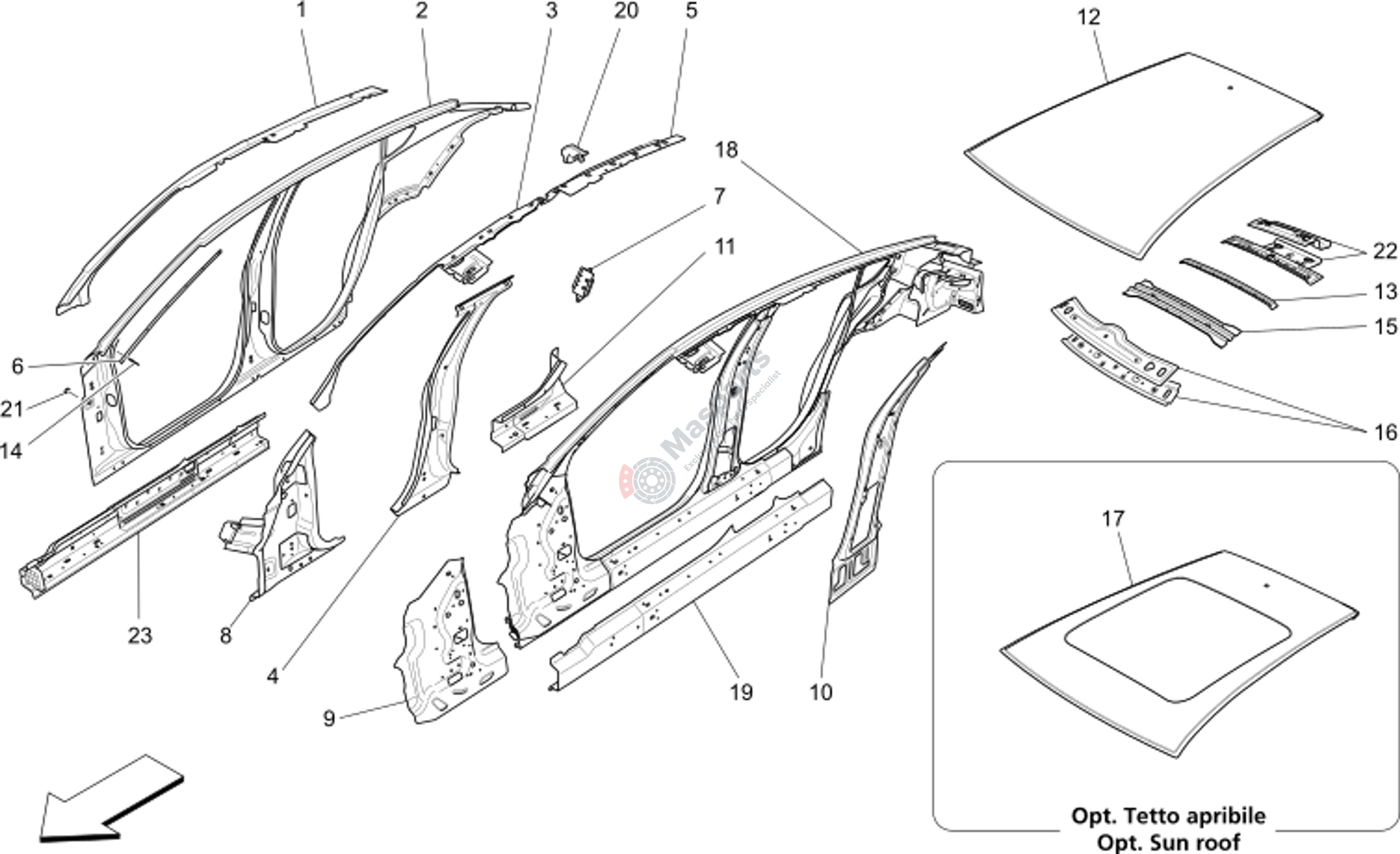

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673006978 | Rh Front Pillar Member Reinf |
$268.05 |
|
|
| 2 | M-673008249 | Rh External Body Side Assemb |
$2,441.56 |
|
|
| 3 | M-673006976 | Rh Front Pillar Side Rail As |
$150.78 |
|
|
| 4 | M-673006979 | Rh Central Pillar Reinforcem |
$452.34 |
|
|
| 5 | M-673006974 | Rh Rear Upper Side Rail Asse |
$152.75 |
|
|
| 7 | M-673005637 | Rh Rear Door Striker Plate C |
$22.62 |
|
|
| 8 | M-673005639 | Rh Front Pillare Reinforceme |
$341.97 |
|
|
| 9 | M-673011061 | Cpl Rh Body Side Framing |
$103.48 |
|
|
| 10 | M-673006982 | Rh Central Pillar Frame |
$221.74 |
|
|
| 11 | M-673005643 | Rh B-Pillar Lower Framework |
$95.61 |
|
|
| 12 | M-673007935 | Ext Roofpanel Cover |
$522.66 |
|
|
| 13 | M-673005646 | Central Cross Member |
$50.34 |
|
|
| 14 | M-670105701 | Rivet |
$2.35 |
|
|
| 15 | M-673005647 | Central Cross Member |
$66.49 |
|
|
| 16 | M-673005648 | Windscreen Upper Cross Membe |
$96.13 |
|
|
| 17 | M-673007936 | Ext Roof Panel Cover (399+) |
$753.05 |
|
|
| 18 | M-673010875 | Cpl Rh Body Side Framing |
$2,092.20 |
|
|
| 19 | M-673011062 | Rh Side Member Assembly |
$309.44 |
|
|
| 20 | M-670034917 | R.H. Diaphragm |
$14.11 |
|
|
| 21 | M-670031350 | Plug |
$5.23 |
|
|
| 22 | M-673005654 | Rear Cross Member |
$82.63 |
|
|
| 23 | M-673006847 | Rh Reinforcement |
$312.40 |
|
