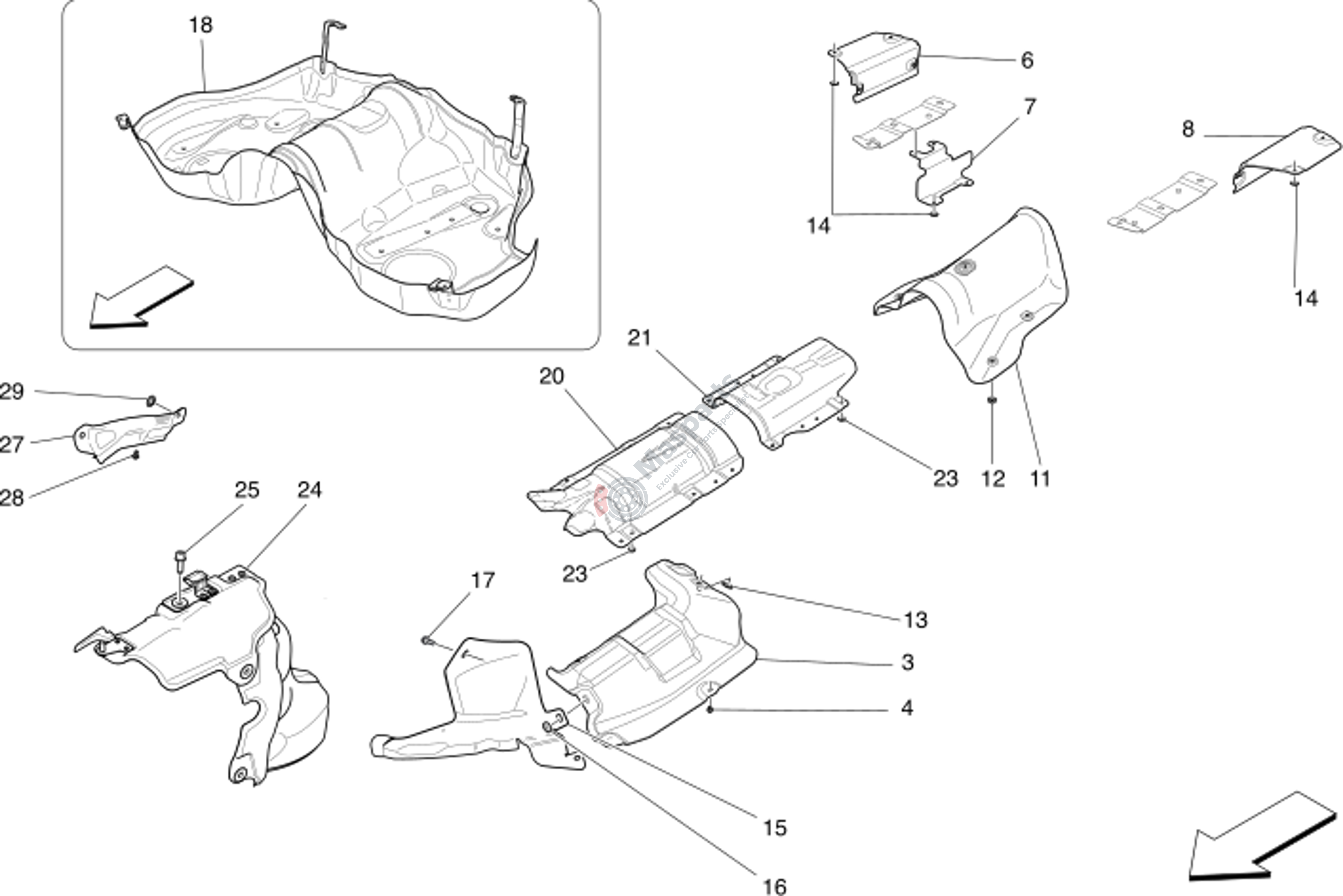

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 3 | M-670160340 | L.H.Silencer Heat Shield |
$40.19 |
|
|
| 4 | M-675000136 | Screw |
$2.33 |
|
|
| 6 | M-670182575 | Heat Shield |
$29.68 |
|
|
| 7 | M-670031941 | Rh Silencer Heat Shield |
$22.45 |
|
|
| 8 | M-670182574 | Heat Shield |
$29.68 |
|
|
| 11 | M-670037228 | Tank Heat Shield |
$85.29 |
|
|
| 12 | M-670003758 | Fixing Button |
$2.88 |
|
|
| 13 | M-675000047 | Washer |
$5.77 |
|
|
| 14 | M-675000047 | Washer |
$5.77 |
|
|
| 15 | M-670106027 | Shield |
$35.20 |
|
|
| 16 | M-675000047 | Washer |
$5.77 |
|
|
| 17 | M-675000136 | Screw |
$2.33 |
|
|
| 20 | M-670031970 | Front Drive Shaft Guard |
$55.99 |
|
|
| 21 | M-670162239 | Drive Shaft Central Guard |
$28.84 |
|
|
| 23 | M-675000047 | Washer |
$5.77 |
|
|
| 24 | M-670154504 | Heat Shield |
$33.19 |
|
|
| 25 | M-675000088 | Screw |
$2.65 |
|
