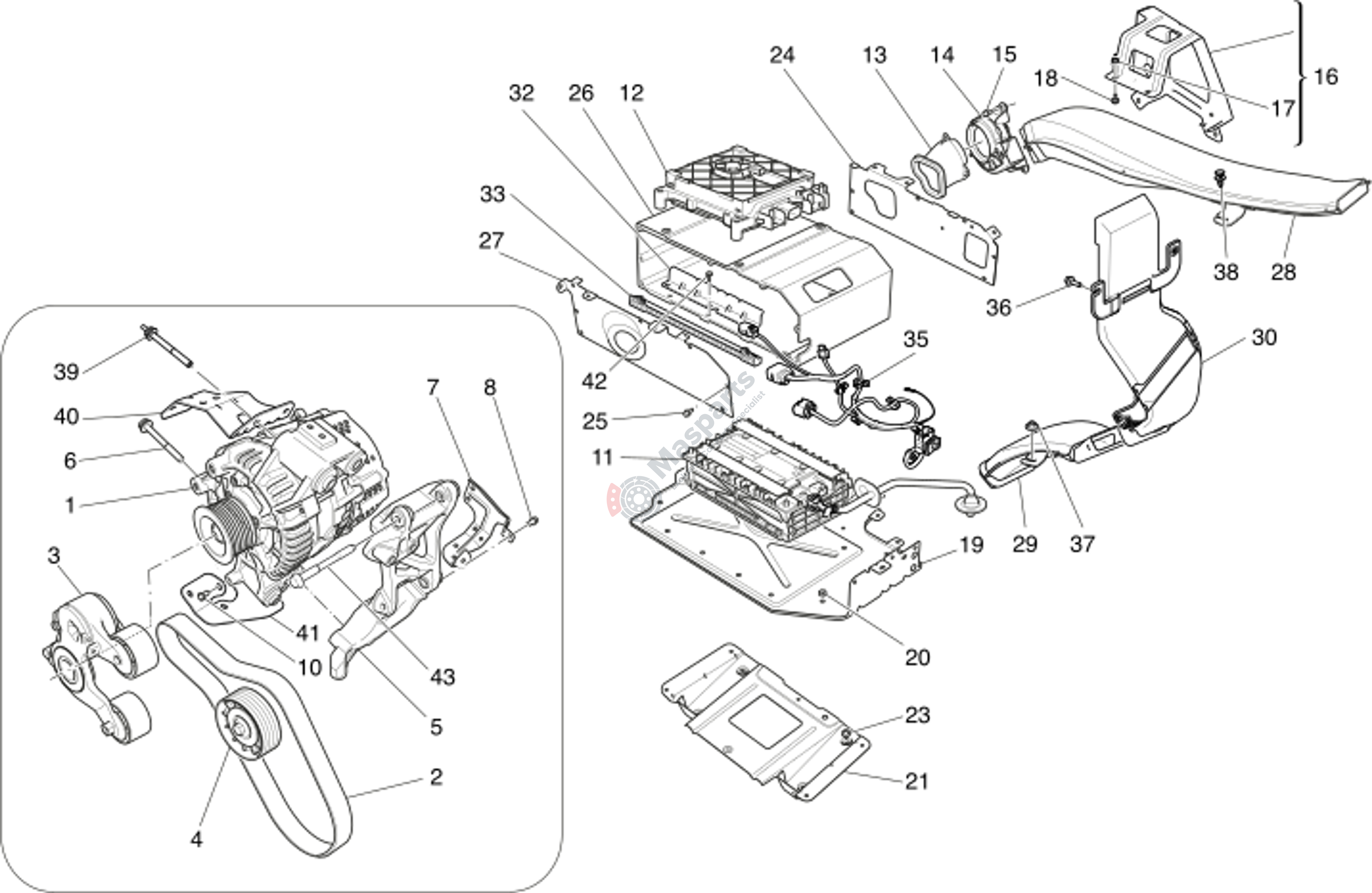

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670219336 | Electric Motor-Generator |
€1.869,64 |
|
|
| 3 | M-670054306 | Automatic Access.Drive Belt |
€182,16 |
|
|
| 4 | M-670053819 | Pulley |
€48,39 |
|
|
| 5 | M-670154512 | Bracket |
€218,96 |
|
|
| 6 | M-670181578 | Screw |
€4,08 |
|
|
| 7 | M-670154513 | Cable Guide Bracket |
€7,45 |
|
|
| 8 | M-675000172 | Screw |
€0,88 |
|
|
| 11 | M-670162269 | 48V Battery |
€1.124,02 |
|
|
| 12 | M-670154698 | Converter |
€632,04 |
|
|
| 13 | M-670174908 | Ventilation Shaft Connection |
€11,99 |
|
|
| 14 | M-670156431 | Fan |
€2.655,68 |
|
|
| 15 | M-675001444 | Screw |
€2,09 |
|
|
| 16 | M-670222541 | Bracket |
€32,84 |
|
|
| 17 | M-675000273 | Nut |
€0,83 |
|
|
| 18 | M-675000436 | Screw |
€2,09 |
|
|
| 19 | M-670157157 | Bracket |
€65,50 |
|
|
| 20 | M-675000273 | Nut |
€0,83 |
|
|
| 21 | M-670293144 | Bracket |
€18,95 |
|
|
| 23 | M-675001132 | Screw |
€0,75 |
|
|
| 24 | M-670159054 | Closing Plate |
€14,35 |
|
|
| 25 | M-675000308 | Screw |
€1,42 |
|
|
| 26 | M-670157158 | Battery Support |
€389,16 |
|
|
| 27 | M-670157159 | Closing Plate |
€16,19 |
|
|
| 28 | M-670174909 | Air Ducting |
€80,67 |
|
|
| 29 | M-670174910 | Air Ducting |
€73,10 |
|
|
| 30 | M-670174907 | Air Ducting |
€158,95 |
|
|
| 32 | M-670157161 | Bracket |
€20,79 |
|
|
| 33 | M-670158538 | Spacer |
€11,04 |
|
|
| 35 | M-670155072 | Connecting Cable |
€71,12 |
|
|
| 36 | M-675000556 | Screw |
€1,78 |
|
|
| 37 | M-675000325 | Plastic Nut |
€1,04 |
|
|
| 38 | M-675001447 | Pin |
€1,25 |
|
|
| 39 | M-670175070 | Screw |
€4,88 |
|
|
| 40 | M-670174653 | Bracket |
€8,74 |
|
|
| 41 | M-670174652 | Bracket |
€8,74 |
|
|
| 42 | M-670160349 | Screw M5X12 |
€1,40 |
|
|
| 43 | M-670173139 | Screw |
€4,54 |
|
