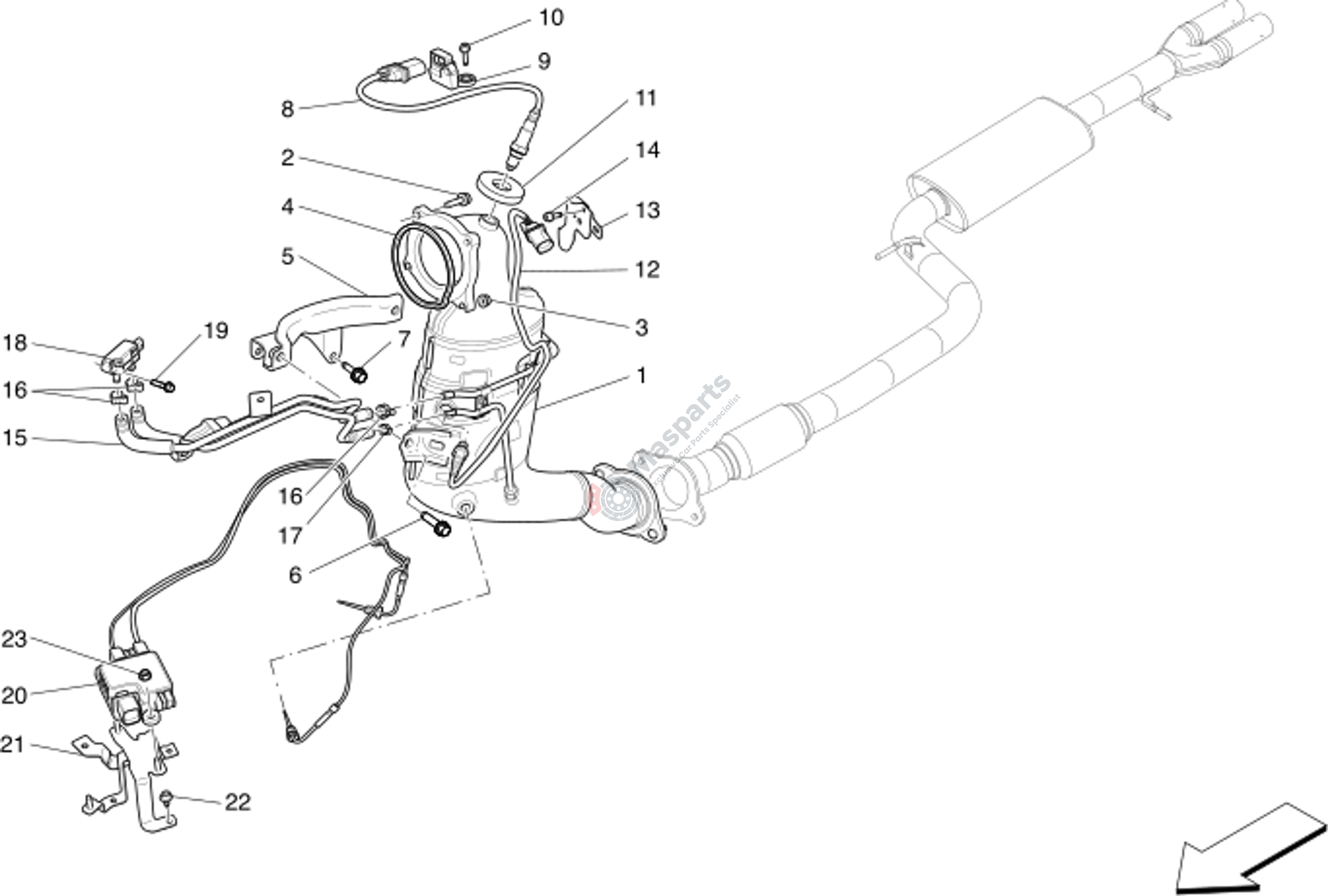

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-675001006 | Screw |
$4.59 |
|
|
| 3 | M-675000780 | Nut |
$2.47 |
|
|
| 4 | M-675001005 | Gasket |
$25.19 |
|
|
| 5 | M-675001002 | Bracket |
$30.49 |
|
|
| 6 | M-675001007 | Screw |
$1.80 |
|
|
| 7 | M-675001011 | Screw |
$2.99 |
|
|
| 8 | M-675001146 | Upper Lambda Sensor |
$109.27 |
|
|
| 9 | M-675001152 | Bracket |
$2.96 |
|
|
| 10 | M-675000432 | Screw |
$2.33 |
|
|
| 11 | M-675001010 | Gasket |
$10.77 |
|
|
| 12 | M-46335923 | Lower Lambda Sensor |
$92.22 |
|
|
| 13 | M-670174650 | Bracket |
$11.68 |
|
|
| 14 | M-675000662 | Screw |
$1.81 |
|
|
| 15 | M-670182192 | Rigid Pipe Exhaust Gas Press |
$89.28 |
|
|
| 16 | M-675000369 | Strap Collar |
$1.73 |
|
|
| 17 | M-675000368 | Strap Collar |
$1.97 |
|
|
| 18 | M-670175163 | Pressure Sensor |
$129.32 |
|
|
| 19 | M-675000468 | Screw |
$2.31 |
|
|
| 20 | M-670174657 | Nox Ecu |
$344.25 |
|
|
| 21 | M-670154521 | Bracket |
$19.23 |
|
|
| 22 | M-675000088 | Screw |
$2.68 |
|
|
| 23 | M-675000182 | Nut |
$1.14 |
|
