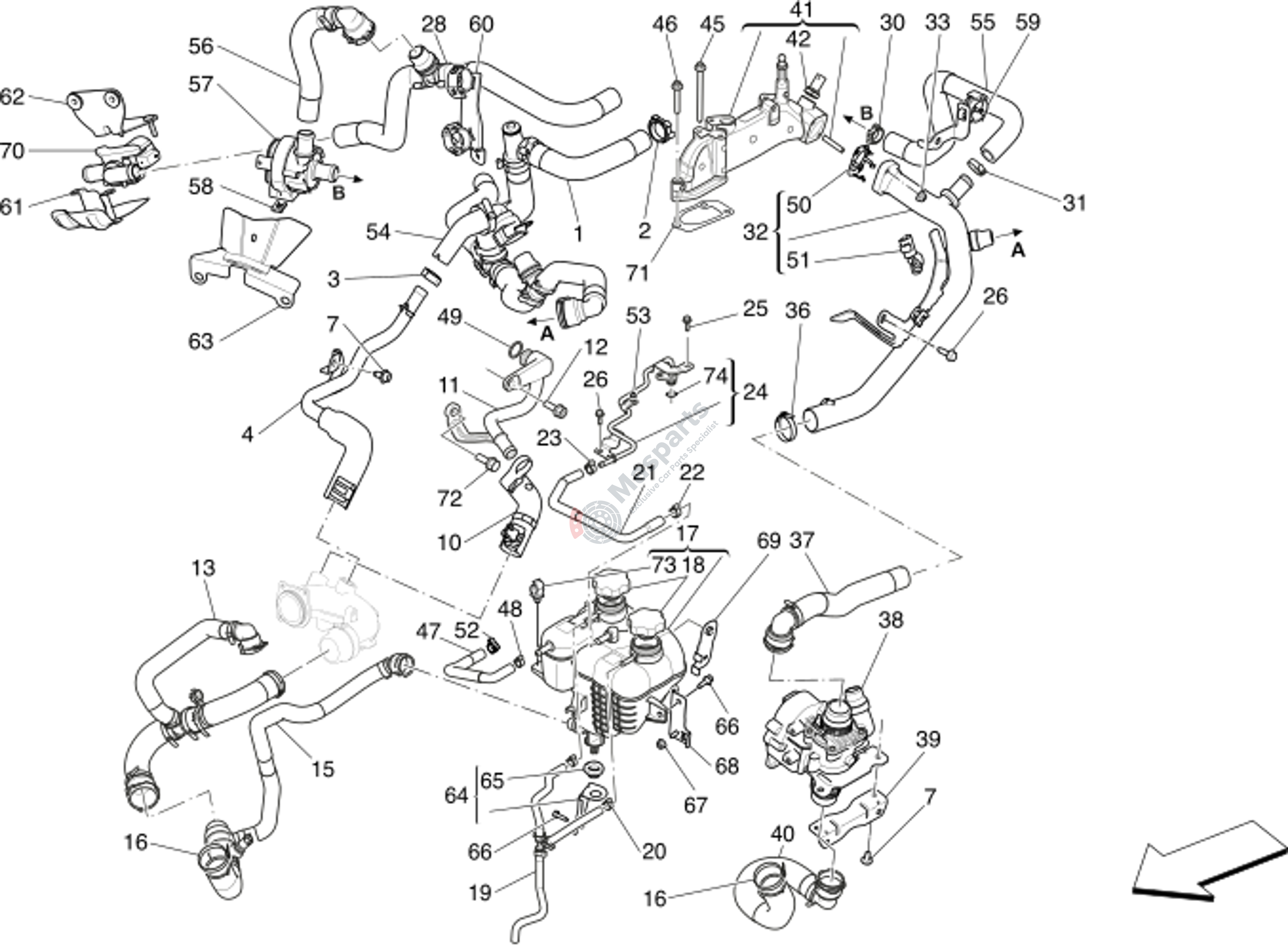

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670215363 | Sleeve |
$321.32 |
|
|
| 2 | M-670030325 | Clip |
$2.17 |
|
|
| 3 | M-675000334 | Collar Clip |
$2.53 |
|
|
| 4 | M-670053671 | Tube |
$331.11 |
|
|
| 7 | M-675000662 | Screw |
$1.79 |
|
|
| 10 | M-675001472 | Flexible Tube |
$24.65 |
|
|
| 11 | M-675000958 | Pipe |
$79.12 |
|
|
| 12 | M-675000960 | Screw |
$3.28 |
|
|
| 13 | M-670214080 | Sleeve |
$72.97 |
|
|
| 15 | M-670174742 | Sleeve |
$83.84 |
|
|
| 16 | M-675000345 | Screw Collar |
$3.79 |
|
|
| 17 | M-670154621 | Expansion Tank Assembly |
$270.38 |
|
|
| 18 | M-675001143 | Tank Plug |
$18.68 |
|
|
| 19 | M-670174763 | Sleeve |
$31.80 |
|
|
| 20 | M-675001122 | Collar |
$2.22 |
|
|
| 21 | M-670174743 | Pipe |
$6.26 |
|
|
| 22 | M-675001008 | Collar |
$1.65 |
|
|
| 23 | M-675000369 | Strap Collar |
$1.71 |
|
|
| 24 | M-670154634 | Vent Pipe |
$172.41 |
|
|
| 25 | M-675001119 | Screw |
$0.80 |
|
|
| 26 | M-675000111 | Screw |
$2.63 |
|
|
| 28 | M-670174757 | Sleeve |
$40.07 |
|
|
| 30 | M-670030325 | Clip |
$2.17 |
|
|
| 31 | M-670030327 | Clip |
$2.47 |
|
|
| 32 | M-670174648 | Pipe |
$144.00 |
|
|
| 33 | M-675001004 | Nut |
$2.08 |
|
|
| 36 | M-675001129 | Collar |
$2.05 |
|
|
| 37 | M-670174744 | Pipe |
$26.62 |
|
|
| 38 | M-675001144 | Thermostatic Valve |
$372.26 |
|
|
| 39 | M-670154511 | Bracket |
$17.51 |
|
|
| 40 | M-670213890 | Radiator Water Inlet Pipe |
$32.82 |
|
|
| 41 | M-675000946 | Outlet Manifold |
$127.35 |
|
|
| 42 | M-675000947 | Temperature Sensor |
$101.10 |
|
|
| 45 | M-675000949 | Screw |
$2.82 |
|
|
| 46 | M-675000950 | Screw |
$2.01 |
|
|
| 47 | M-670174764 | Pipe |
$33.70 |
|
|
| 48 | M-675001008 | Collar |
$1.65 |
|
|
| 49 | M-675000959 | Sealing Ring |
$3.95 |
|
|
| 50 | M-675001003 | Water Pipe Seal |
$21.20 |
|
|
| 51 | M-670156920 | Clip |
$2.29 |
|
|
| 52 | M-675001121 | Collar |
$2.18 |
|
|
| 53 | M-675000794 | Flanged Nut |
$1.53 |
|
|
| 54 | M-670174751 | Sleeve |
$161.64 |
|
|
| 55 | M-670174948 | Sleeve |
$18.38 |
|
|
| 56 | M-670174753 | Sleeve |
$32.90 |
|
|
| 57 | M-670002071 | Water Pump Heating Sys. |
$182.21 |
|
|
| 58 | M-670006732 | Water Recycling Pump Plate |
$5.14 |
|
|
| 59 | M-670174941 | Bracket |
$11.98 |
|
|
| 60 | M-670174940 | Bracket |
$12.31 |
|
|
| 61 | M-670009570 | Solenoid Valve Shield |
$12.13 |
|
|
| 62 | M-670002637 | Solenoid Valve Bracket |
$16.61 |
|
|
| 63 | M-670174904 | Bracket |
$19.01 |
|
|
| 64 | M-670174739 | Bracket |
$12.63 |
|
|
| 65 | M-675000018 | Rubber Bushing |
$4.97 |
|
|
| 66 | M-675000088 | Screw |
$2.65 |
|
|
| 67 | M-675000794 | Flanged Nut |
$1.53 |
|
|
| 68 | M-670213667 | Bracket |
$13.38 |
|
|
| 69 | M-670175543 | Bracket |
$9.50 |
|
|
| 70 | M-670002070 | Water Solenoid Valve Heating |
$137.15 |
|
|
| 71 | M-675000945 | Gasket |
$3.97 |
|
|
| 72 | M-675000961 | Screw |
$2.49 |
|
|
| 73 | M-675002347 | Clip |
$1.27 |
|
|
| 74 | M-673013793 | O-Ring 1/44568/81 |
$9.39 |
|
