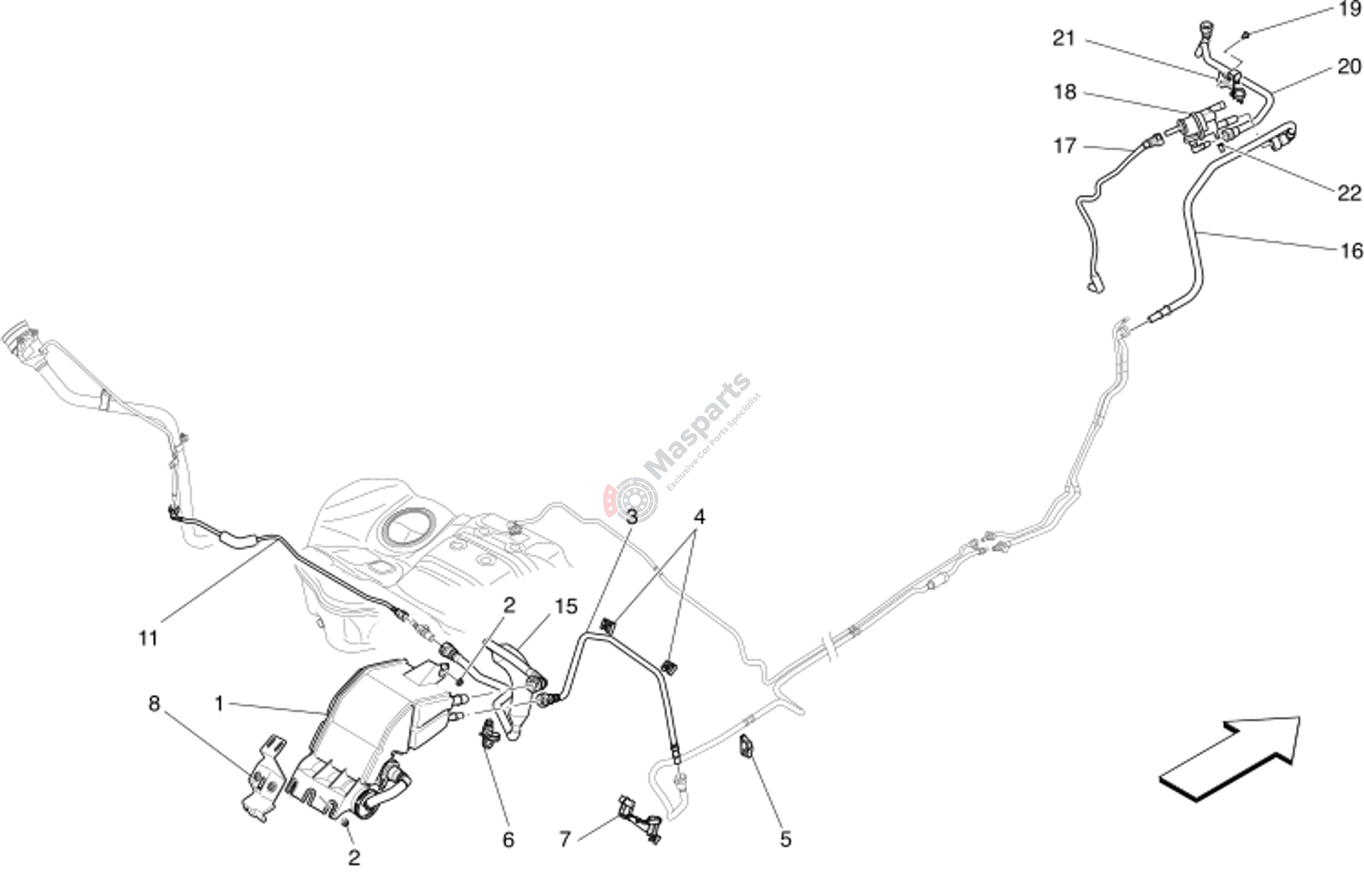

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670033287 | Fuel Vapour Filter |
$199.67 |
|
|
| 2 | M-675000095 | Nut |
$0.78 |
|
|
| 3 | M-670033294 | Canister Pipe |
$32.80 |
|
|
| 4 | M-670033289 | Pipe Clip |
$3.10 |
|
|
| 5 | M-670033279 | Clip |
$2.84 |
|
|
| 6 | M-670100038 | Fuel Tank Bracket |
$3.18 |
|
|
| 7 | M-670031947 | Vapour System Clip |
$10.15 |
|
|
| 8 | M-670034699 | Canister Bracket |
$18.34 |
|
|
| 11 | M-670033572 | Flexible Vapour Pipe |
$35.88 |
|
|
| 15 | M-670033274 | Vent Pipe |
$93.40 |
|
|
| 16 | M-670174692 | Pipe |
$59.51 |
|
|
| 17 | M-675000981 | Flexible Pipe |
$192.99 |
|
|
| 18 | M-675000977 | Spurge Valve |
$195.93 |
|
|
| 19 | M-675000172 | Screw |
$1.02 |
|
|
| 20 | M-670174654 | Pipe |
$32.53 |
|
|
| 21 | M-670174656 | Pipe |
$7.02 |
|
|
| 22 | M-675000982 | Plug |
$13.96 |
|
