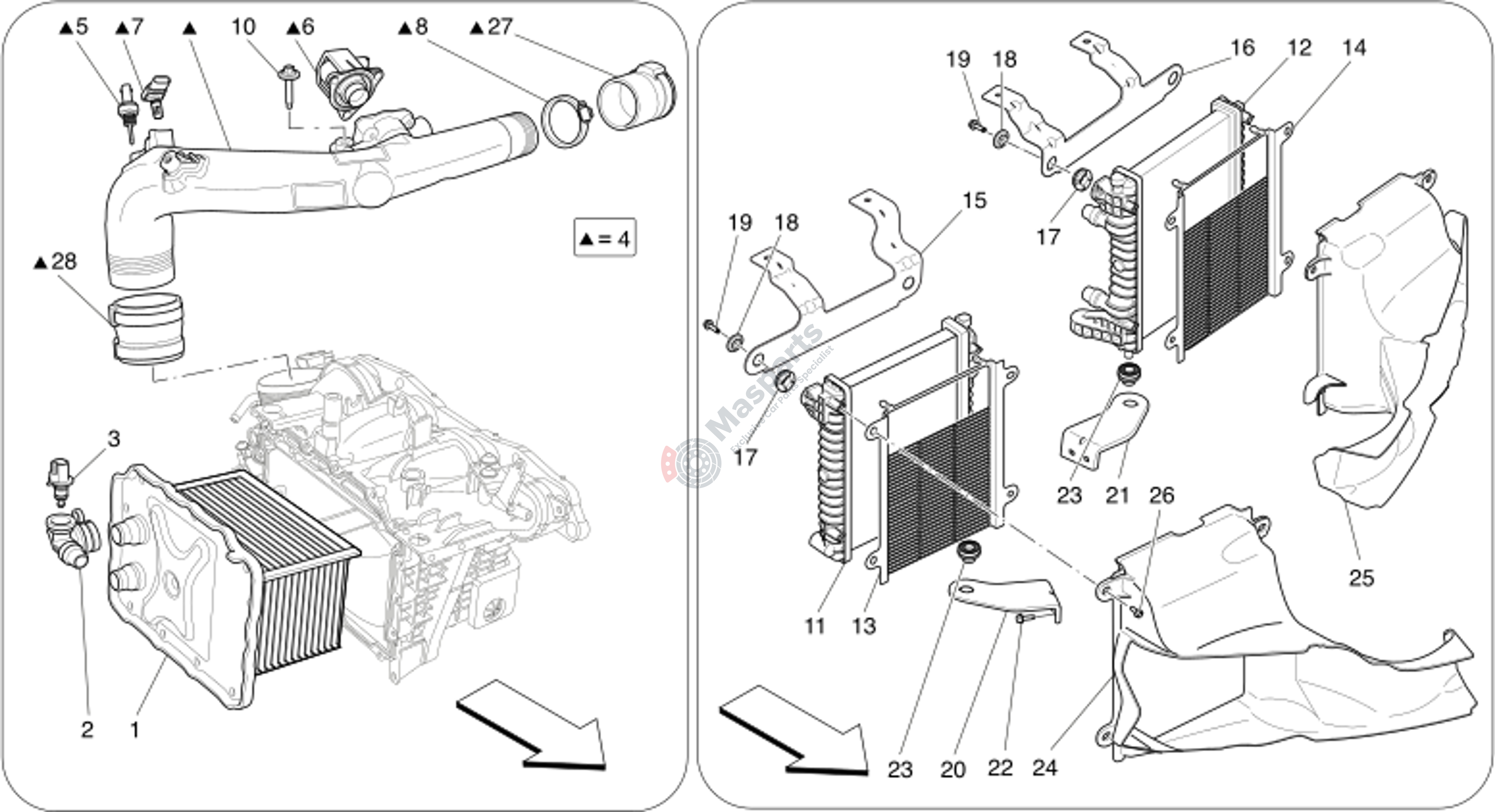

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-673013310 | Kit Sensor Housing And Screw |
€376,28 |
|
|
| 3 | M-675000985 | Temperature Sensor |
€17,54 |
|
|
| 5 | M-675000990 | Air Temperature Sensor |
€69,49 |
|
|
| 6 | M-675000991 | Valve |
€269,45 |
|
|
| 7 | M-675000992 | Pressure Sensor |
€334,54 |
|
|
| 8 | M-675000993 | Clamp |
€23,92 |
|
|
| 10 | M-675000986 | Screw |
€1,62 |
|
|
| 11 | M-675001056 | Intercooler |
€266,90 |
|
|
| 12 | M-675001057 | Engine Intercool Radiator |
€266,05 |
|
|
| 13 | M-675001083 | Front Rh Grille |
€36,98 |
|
|
| 14 | M-675001082 | Front Lh Grille |
€36,98 |
|
|
| 15 | M-670174931 | Bracket |
€52,35 |
|
|
| 16 | M-670174933 | Bracket |
€28,61 |
|
|
| 17 | M-675000201 | Small Block. |
€7,91 |
|
|
| 18 | M-675000409 | Washer |
€2,09 |
|
|
| 19 | M-675001048 | Screw |
€0,60 |
|
|
| 20 | M-670174934 | Bracket |
€11,68 |
|
|
| 21 | M-670174938 | Bracket |
€11,68 |
|
|
| 22 | M-675000088 | Screw |
€2,24 |
|
|
| 23 | M-675000545 | Rubber Bushing |
€2,40 |
|
|
| 26 | M-675000354 | Screw |
€2,29 |
|
