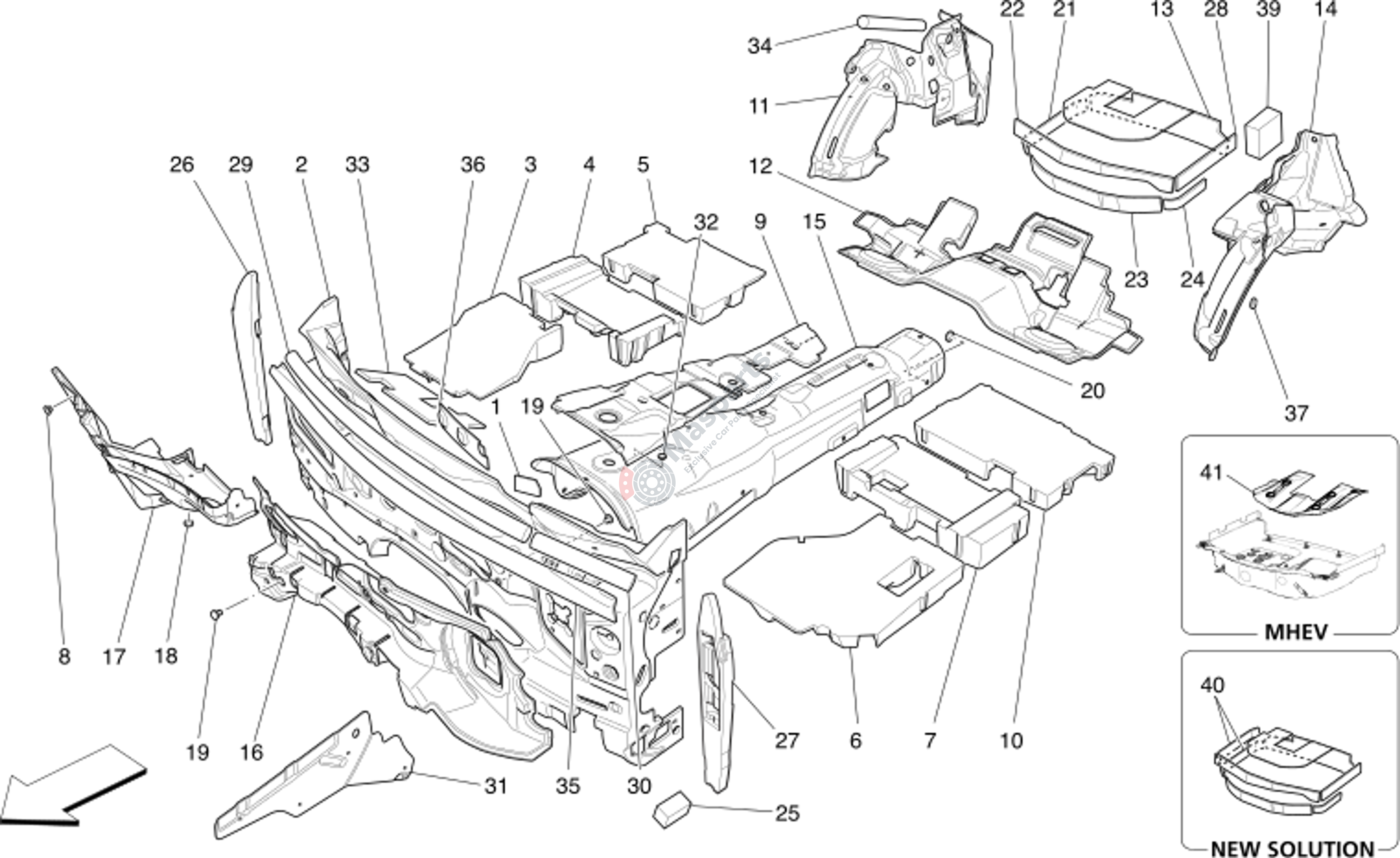

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675000151 | Seal Plug |
$1.69 |
|
|
| 2 | M-670104969 | Dashboard Soundproofing Pane |
$229.32 |
|
|
| 3 | M-670103999 | Rh Front Support |
$56.54 |
|
|
| 4 | M-670038499 | Rh Central Support |
$46.84 |
|
|
| 5 | M-670038501 | Rh Rear Support |
$35.09 |
|
|
| 6 | M-670038496 | Lh Front Support |
$48.22 |
|
|
| 7 | M-670038498 | Lh Central Support |
$37.64 |
|
|
| 9 | M-670032150 | Tunnel Insulation |
$53.87 |
|
|
| 10 | M-670038500 | Lh Rear Support |
$30.62 |
|
|
| 11 | M-670032146 | Rh Rear Sound-Proof Material |
$93.98 |
|
|
| 13 | M-670107542 | Luggage Compartment Soundpro |
$9.70 |
|
|
| 14 | M-670032147 | Lh Rear Sound-Proof Material |
$92.97 |
|
|
| 15 | M-670035038 | Tunnel External Soundproofin |
$67.99 |
|
|
| 16 | M-670004556 | Engine Compartment Insulatio |
$81.03 |
|
|
| 17 | M-670102939 | Engine Compartment Upr Insul |
$29.19 |
|
|
| 18 | M-675000453 | Plate |
$1.63 |
|
|
| 20 | M-675000411 | Washer |
$3.64 |
|
|
| 21 | M-670033536 | Rh Rear Longitudinal Member |
$5.04 |
|
|
| 22 | M-670107541 | Spare Wheel Housing Front So |
$6.67 |
|
|
| 23 | M-670033538 | Spare Wheel Housing Lower Fr |
$7.69 |
|
|
| 24 | M-670107544 | Lh Rear Longitudinal Member |
$3.85 |
|
|
| 26 | M-670033522 | R.H. Insulation |
$27.16 |
|
|
| 27 | M-670033524 | L.H. Insulation |
$27.16 |
|
|
| 28 | M-670033540 | Lh Rear Longitudinal Member |
$4.76 |
|
|
| 29 | M-670100307 | Rh Side Dashboard Insulation |
$9.30 |
|
|
| 30 | M-670100306 | Lh Side Dashboard Insulation |
$9.38 |
|
|
| 32 | M-675000679 | Sealing Plug 22Mm |
$10.40 |
|
|
| 33 | M-670161860 | Front Floor Insulation |
$15.84 |
|
|
| 34 | M-670039095 | Stuffer |
$13.04 |
|
|
| 35 | M-670039987 | Soundproof Panel Top Crossba |
$20.26 |
|
|
| 36 | M-670001855 | Lateral Soundproofing |
$2.16 |
|
|
| 37 | M-675000424 | Plug |
$8.60 |
|
|
| 39 | M-670039094 | Pad |
$11.82 |
|
|
| 41 | M-670156325 | Soundproofing Panel |
$8.97 |
|
