Diagram image not available

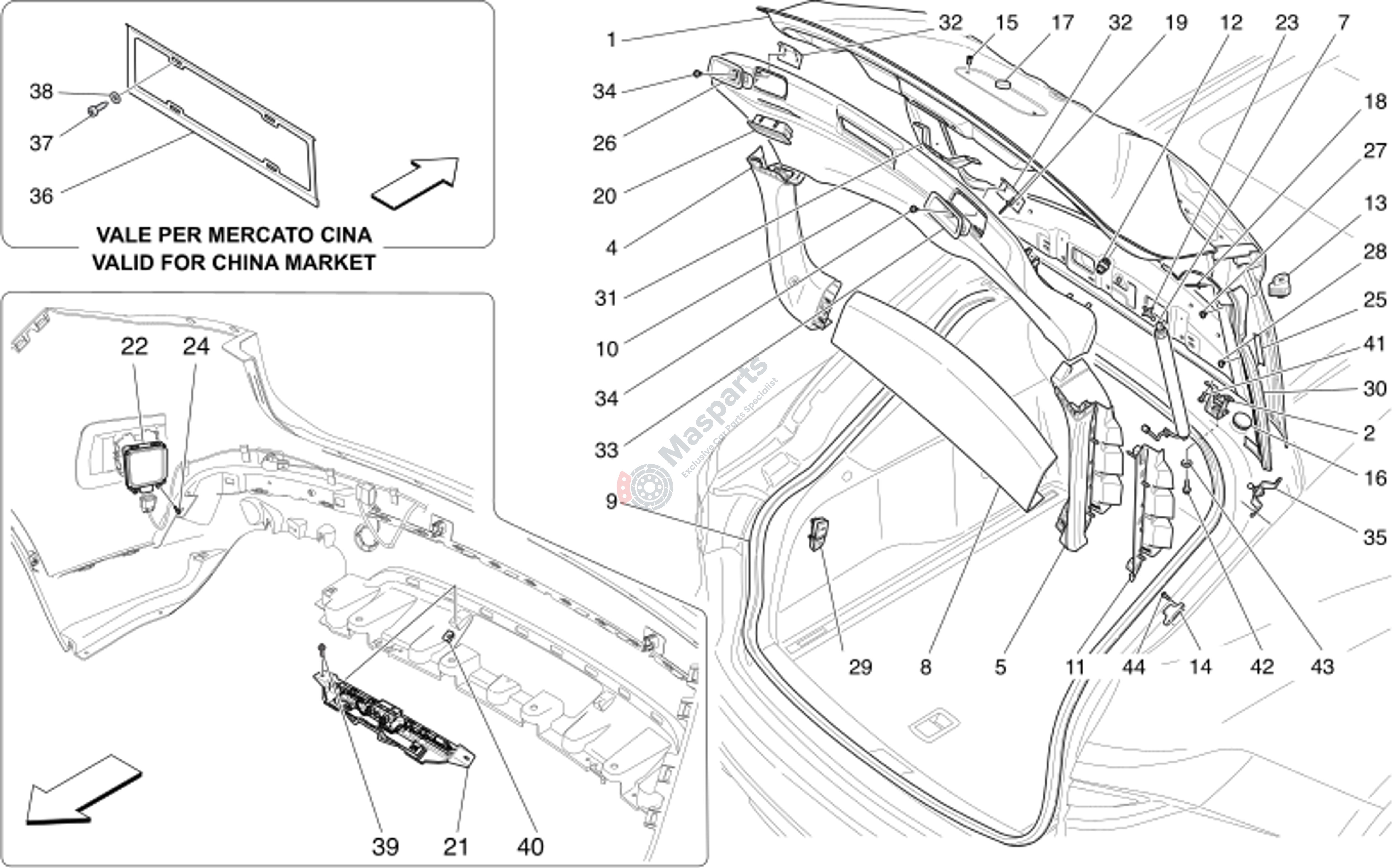

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673005572 | Rear Liftgate |
$1,662.00 |
|
|
| 2 | M-675000594 | Hinge |
$22.98 |
|
|
| 7 | M-670034958 | Decklid Gas Spring (Jrc-) |
$48.75 |
|
|
| 9 | M-670101139 | Luggage Compartment Seal |
$143.51 |
|
|
| 11 | M-670035095 | Rh Bracket |
$15.29 |
|
|
| 12 | M-675000595 | Antivibrating Pad |
$4.65 |
|
|
| 13 | M-670220974 | Pad |
$5.59 |
|
|
| 14 | M-670038107 | Pad |
$4.55 |
|
|
| 15 | M-670005149 | Rivet |
$2.92 |
|
|
| 16 | M-670039357 | Cap None |
$4.52 |
|
|
| 17 | M-675000516 | Rubber For Rear License Plat |
$1.36 |
|
|
| 18 | M-675000323 | Rivet |
$1.87 |
|
|
| 19 | M-675000404 | Cpl. Tv Control Station Fixi |
$1.48 |
|
|
| 21 | M-670109049 | Levante Hfa Sensor |
$440.93 |
|
|
| 22 | M-670174821 | Ecu Buy Lbss-Left Blind Spot |
$801.98 |
|
|
| 23 | M-670035040 | Ball Pin |
$19.31 |
|
|
| 24 | M-675000693 | Screw |
$1.02 |
|
|
| 25 | M-675000630 | Rubber |
$2.32 |
|
|
| 27 | M-670036725 | Screw |
$2.92 |
|
|
| 28 | M-675000629 | Fastening Clip |
$2.11 |
|
|
| 31 | M-670034970 | Fastening Bracket |
$5.74 |
|
|
| 32 | M-670038078 | Bracket |
$8.23 |
|
|
| 34 | M-670006846 | Screw |
$2.10 |
|
|
| 39 | M-675000742 | Screw |
$0.63 |
|
|
| 40 | M-675000741 | Bracket |
$1.11 |
|
|
| 41 | M-675000087 | Screw |
$3.55 |
|
|
| 42 | M-675000801 | Screw With Washer |
$1.84 |
|
|
| 43 | M-675000798 | Washer |
$1.15 |
|
|
| 44 | M-675001957 | Screw |
$1.53 |
|
