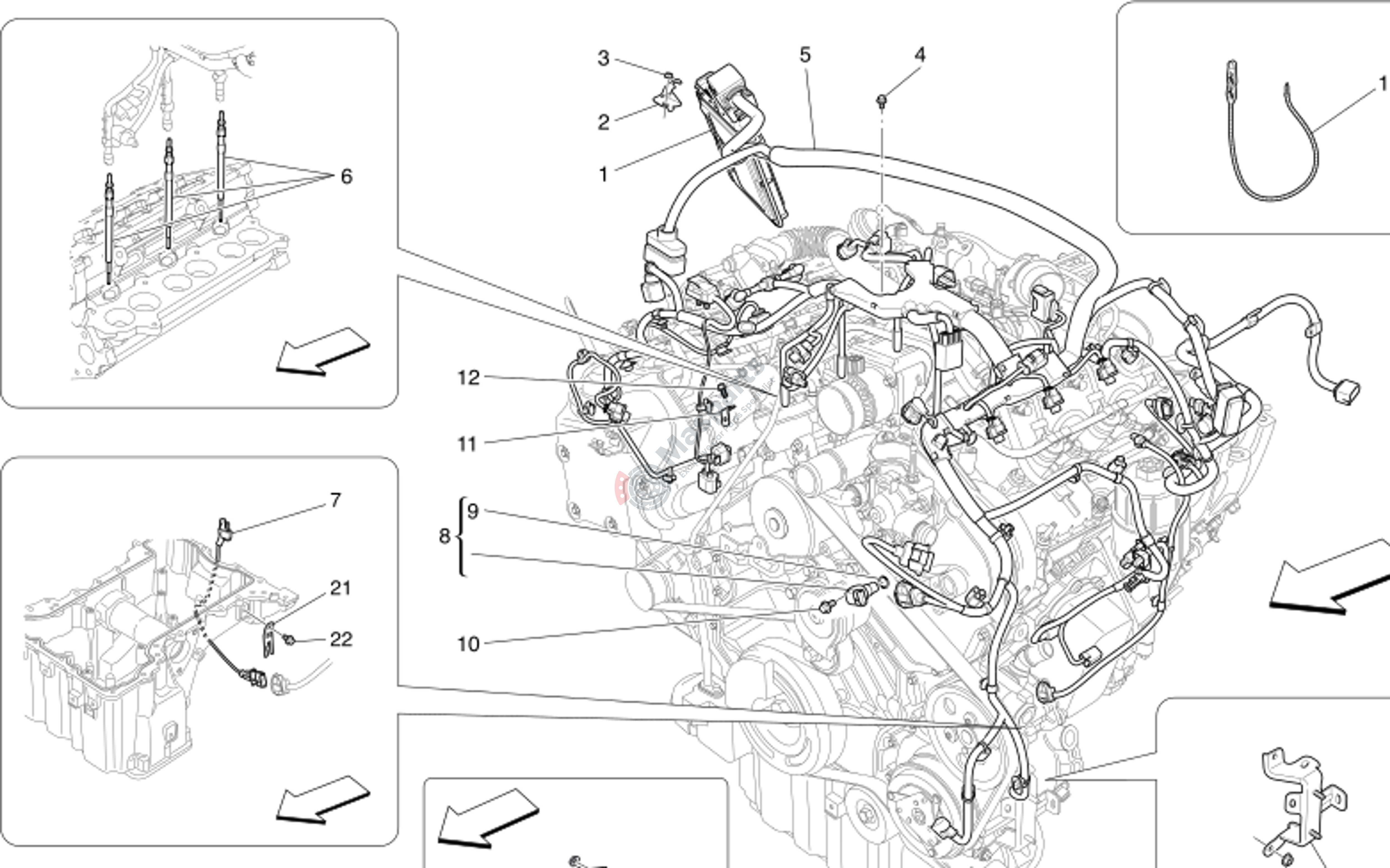

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670108936 | Diesel Ignition Ecu (Hw) |
$1,063.89 |
|
|
| 2 | M-670005090 | Control Unit Fixing Bracket |
$9.24 |
|
|
| 4 | M-46328709 | Flange Bolt |
$4.90 |
|
|
| 5 | M-46341721 | Engine And Gearbox Cable |
$963.45 |
|
|
| 6 | M-46341533 | Glow Plug |
$139.45 |
|
|
| 7 | M-46328171 | Sensor |
$235.99 |
|
|
| 8 | M-46328202 | Timing Sensor |
$117.02 |
|
|
| 9 | M-673001051 | O.R. Gasket |
$2.93 |
|
|
| 10 | M-46328681 | Flange Bolt |
$2.61 |
|
|
| 11 | M-46328769 | Support Bracket For Harness |
$4.50 |
|
|
| 12 | M-46328683 | Flange Bolt |
$1.15 |
|
|
| 13 | M-46329513 | Wiring Clamp |
$3.05 |
|
|
| 14 | M-46328825 | Cables Support |
$75.02 |
|
|
| 15 | M-673001154 | Flange Nut |
$1.50 |
|
|
| 16 | M-670005138 | Control Unit |
$170.04 |
|
|
| 21 | M-46329360 | Connector Bracket |
$20.49 |
|
|
| 22 | M-46328681 | Flange Bolt |
$2.61 |
|
|
| 23 | M-670039356 | Control Unit Support Bracket |
$12.00 |
|
