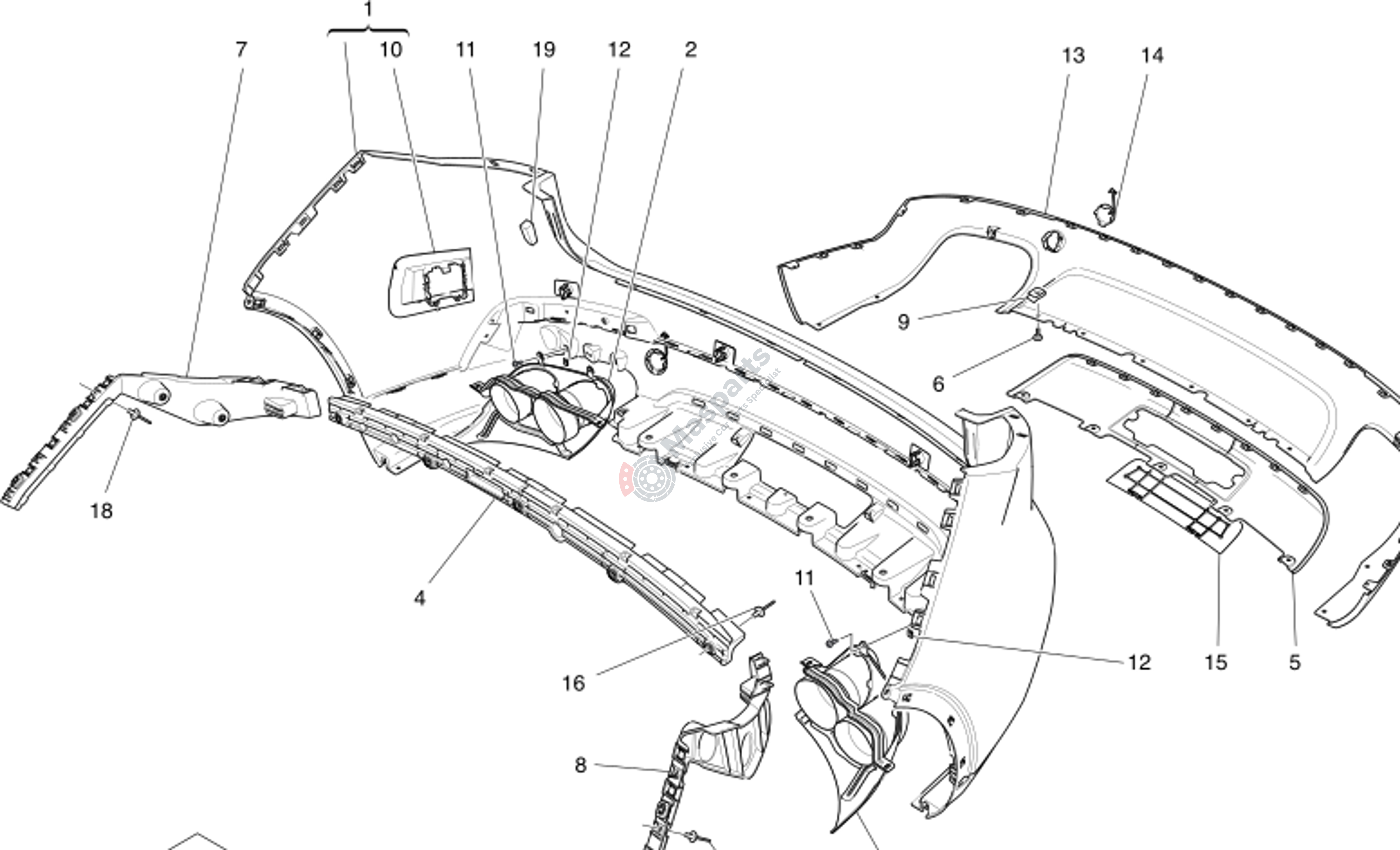

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 4 | M-670032729 | Central Bracket |
€35,14 |
|
|
| 6 | M-675000461 | Screw |
€1,16 |
|
|
| 8 | M-670108374 | Lh Bracket |
€26,22 |
|
|
| 9 | M-675000192 | Bracket |
€1,05 |
|
|
| 10 | M-670035052 | Rh Bumper Bracket (Xan) |
€16,47 |
|
|
| 11 | M-675000461 | Screw |
€1,16 |
|
|
| 12 | M-675000192 | Bracket |
€1,05 |
|
|
| 16 | M-675000323 | Rivet |
€1,58 |
|
|
| 17 | M-675000323 | Rivet |
€1,58 |
|
|
| 18 | M-675000323 | Rivet |
€1,58 |
|
|
| 19 | M-670038825 | Energy Absorbing Unit |
€12,88 |
|
