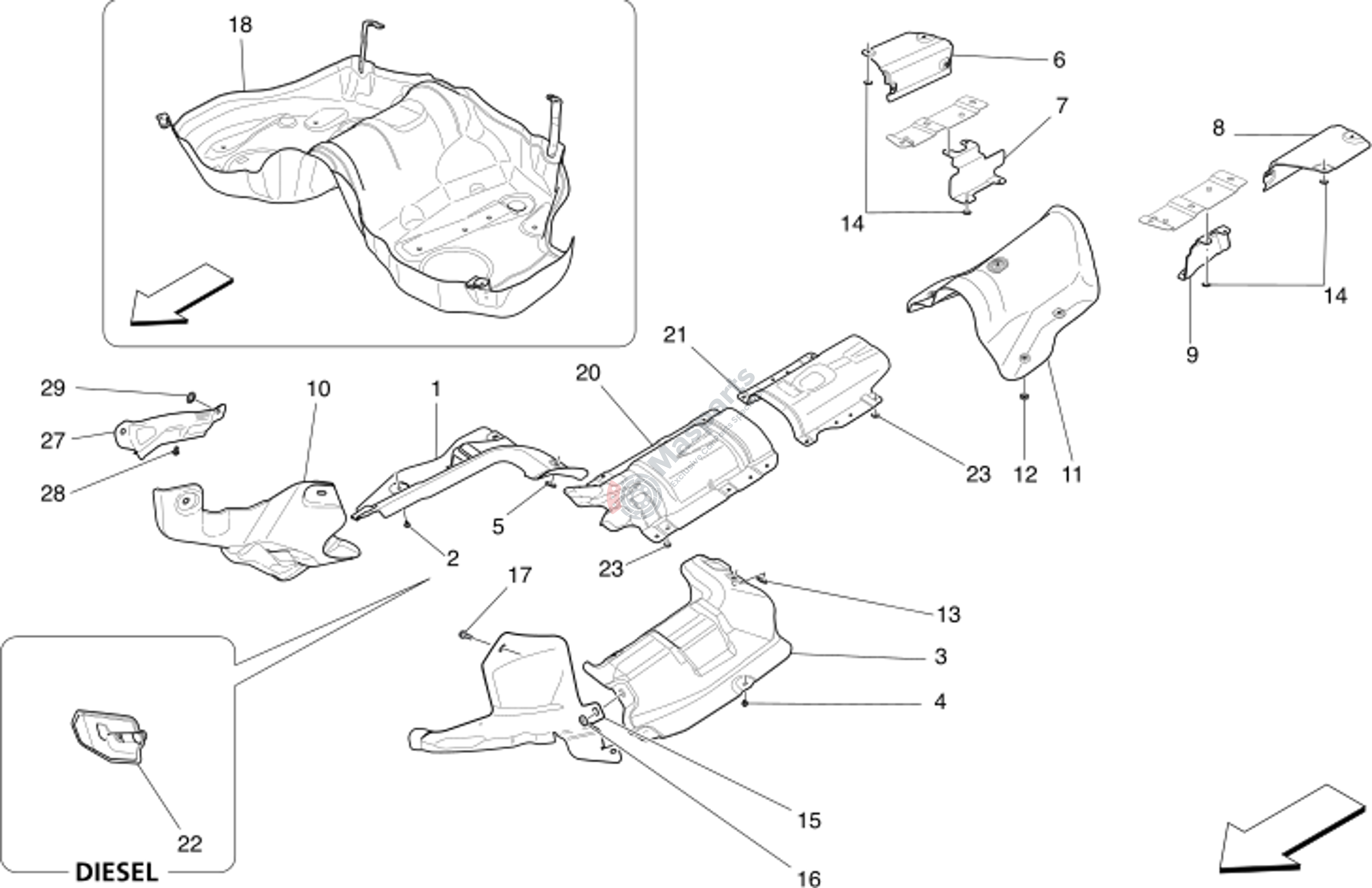

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670034569 | Rh Heat Shield |
$28.44 |
|
|
| 2 | M-675000136 | Screw |
$2.35 |
|
|
| 5 | M-675000047 | Washer |
$5.80 |
|
|
| 6 | M-670004545 | Rear R.H. Heat Shield |
$24.82 |
|
|
| 7 | M-670031941 | Rh Silencer Heat Shield |
$22.58 |
|
|
| 8 | M-670004542 | Rear L.H. Heat Shield |
$24.82 |
|
|
| 10 | M-670106172 | Front Fuel Pipe Guard |
$128.00 |
|
|
| 11 | M-670037228 | Tank Heat Shield |
$85.80 |
|
|
| 12 | M-670003758 | Fixing Button |
$2.90 |
|
|
| 14 | M-675000047 | Washer |
$5.80 |
|
|
| 15 | M-670106027 | Shield |
$35.41 |
|
|
| 16 | M-675000047 | Washer |
$5.80 |
|
|
| 17 | M-675000136 | Screw |
$2.35 |
|
|
| 20 | M-670031970 | Front Drive Shaft Guard |
$56.33 |
|
|
| 21 | M-670031973 | Drive Shaft Central Guard |
$29.01 |
|
|
| 22 | M-670030343 | Lh Heat Shield |
$22.86 |
|
|
| 23 | M-675000047 | Washer |
$5.80 |
|
