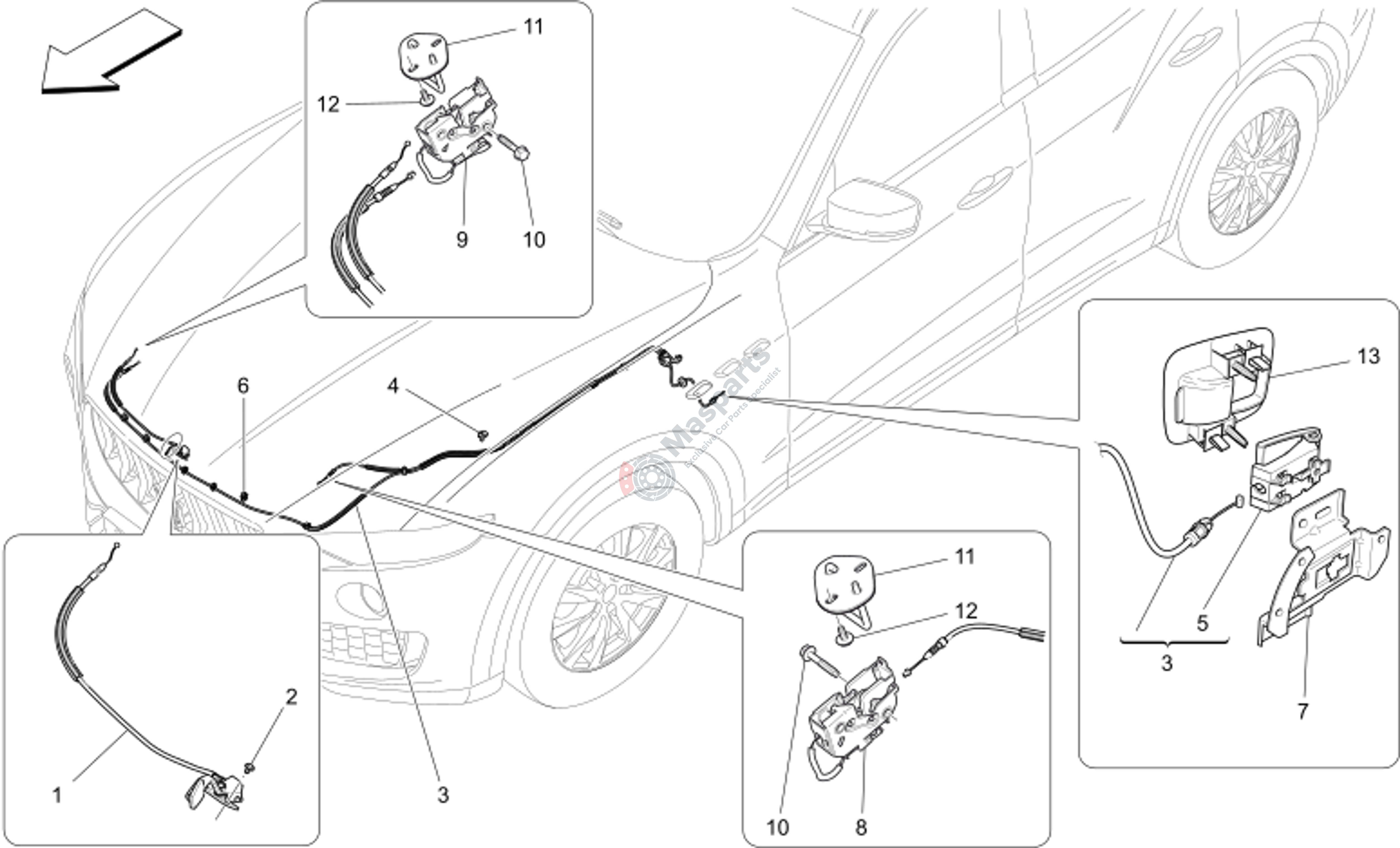

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670034075 | Safety Release Lever |
$17.36 |
|
|
| 2 | M-675000604 | Screw |
$3.36 |
|
|
| 3 | M-670107349 | Engine Bonnet Opening Cable |
$38.83 |
|
|
| 4 | M-675000610 | Clip |
$1.00 |
|
|
| 6 | M-675000353 | Bowden Cable Fastening Clip |
$3.44 |
|
|
| 7 | M-670035105 | Bracket |
$8.15 |
|
|
| 10 | M-675000577 | Screw |
$1.40 |
|
|
| 11 | M-670033514 | Striker |
$104.19 |
|
|
| 12 | M-670036979 | Screw With Washer |
$2.12 |
|
