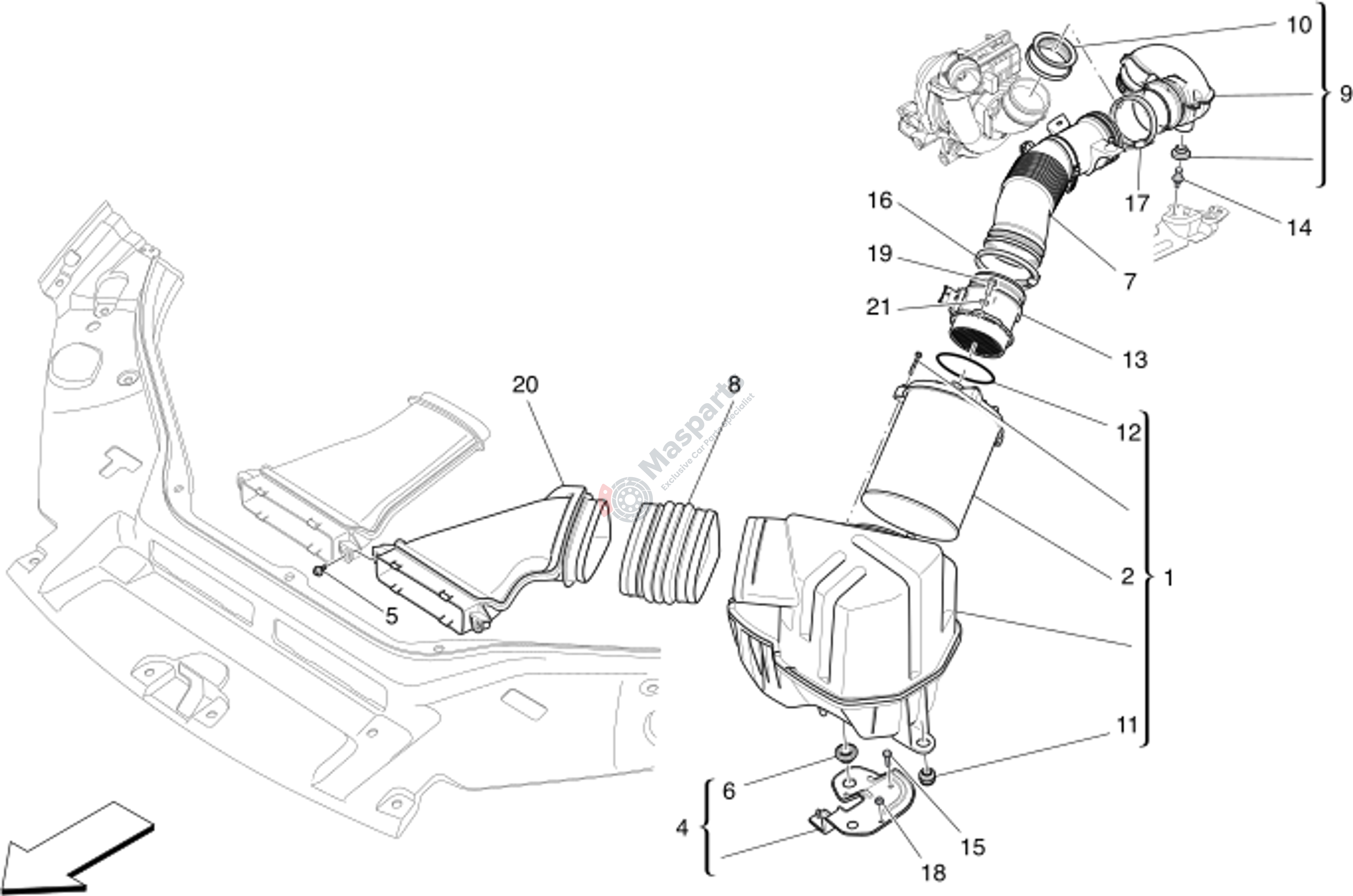

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670033791 | Air Filter Box Assembly |
$175.42 |
|
|
| 2 | M-670004604 | Diesel Air Filter |
$79.30 |
|
|
| 4 | M-670006753 | Filter Bracket |
$28.77 |
|
|
| 5 | M-675000776 | Screw |
$2.13 |
|
|
| 6 | M-675000018 | Rubber Bushing |
$5.00 |
|
|
| 7 | M-670033792 | Clean Air Intake Sleeve - Fl |
$80.12 |
|
|
| 8 | M-670004599 | Dirty Air Sleeve |
$37.31 |
|
|
| 9 | M-670106061 | Clean Air Sleeve - Second Se |
$244.40 |
|
|
| 10 | M-670007158 | Gasket |
$49.28 |
|
|
| 11 | M-675000284 | Flexible Pad |
$10.77 |
|
|
| 12 | M-675000329 | O.R. Gasket |
$3.11 |
|
|
| 13 | M-670005091 | Flowmeter |
$219.36 |
|
|
| 14 | M-675000394 | Pin |
$4.17 |
|
|
| 15 | M-675000504 | Screw |
$1.12 |
|
|
| 16 | M-675000501 | Collar |
$4.69 |
|
|
| 17 | M-675000476 | Hose Fastening Collar |
$2.79 |
|
|
| 18 | M-14059214 | Nut |
$1.28 |
|
|
| 19 | M-675000826 | Hex Head Screw |
$1.37 |
|
|
| 20 | M-670033793 | Upper Lh Air Intake Sleeve |
$32.80 |
|
|
| 21 | M-675000825 | Washer |
$1.66 |
|
