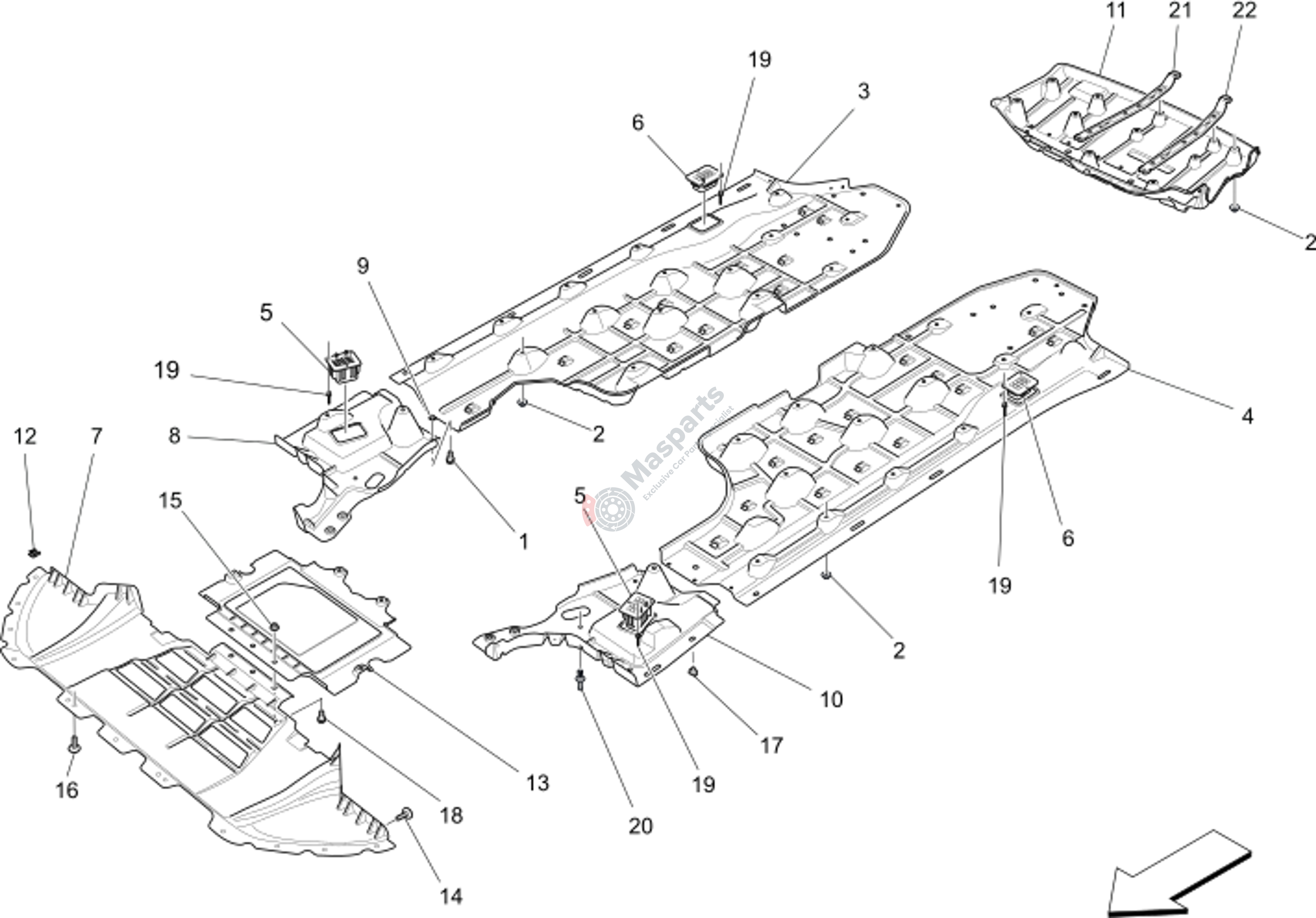

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675000228 | Screw |
€1,94 |
|
|
| 2 | M-675000324 | Special Nut |
€1,08 |
|
|
| 5 | M-670034356 | Vehicle Lifting Front Suppor |
€12,88 |
|
|
| 6 | M-670034358 | Vehicle Lifting Rear Support |
€10,30 |
|
|
| 7 | M-670032424 | Front Underbody Guard |
€268,64 |
|
|
| 8 | M-670032420 | Rh Front Underbody Guard |
€32,29 |
|
|
| 9 | M-675000341 | Undercover Screw Fixing Brac |
€1,78 |
|
|
| 10 | M-670032421 | Lh Front Underbody Guard |
€32,29 |
|
|
| 11 | M-670107815 | Rear Aerodynamic Bottom Asse |
€100,86 |
|
|
| 12 | M-675000020 | Lower Shield Fastening Clip |
€6,04 |
|
|
| 13 | M-670102908 | Shield |
€93,84 |
|
|
| 14 | M-670009112 | Fastening Pin |
€3,13 |
|
|
| 15 | M-675000442 | Nut |
€1,25 |
|
|
| 16 | M-670036972 | Special Screw |
€2,50 |
|
|
| 17 | M-675000058 | Fastening Clip |
€2,39 |
|
|
| 18 | M-675000342 | Special Screw With Washer |
€2,20 |
|
|
| 19 | M-675000323 | Rivet |
€1,58 |
|
|
| 20 | M-675000150 | Fixing Button. |
€0,84 |
|
|
| 21 | M-670037056 | Strap Urea Tank |
€16,01 |
|
|
| 22 | M-670037057 | Strap Urea Tank |
€16,01 |
|
