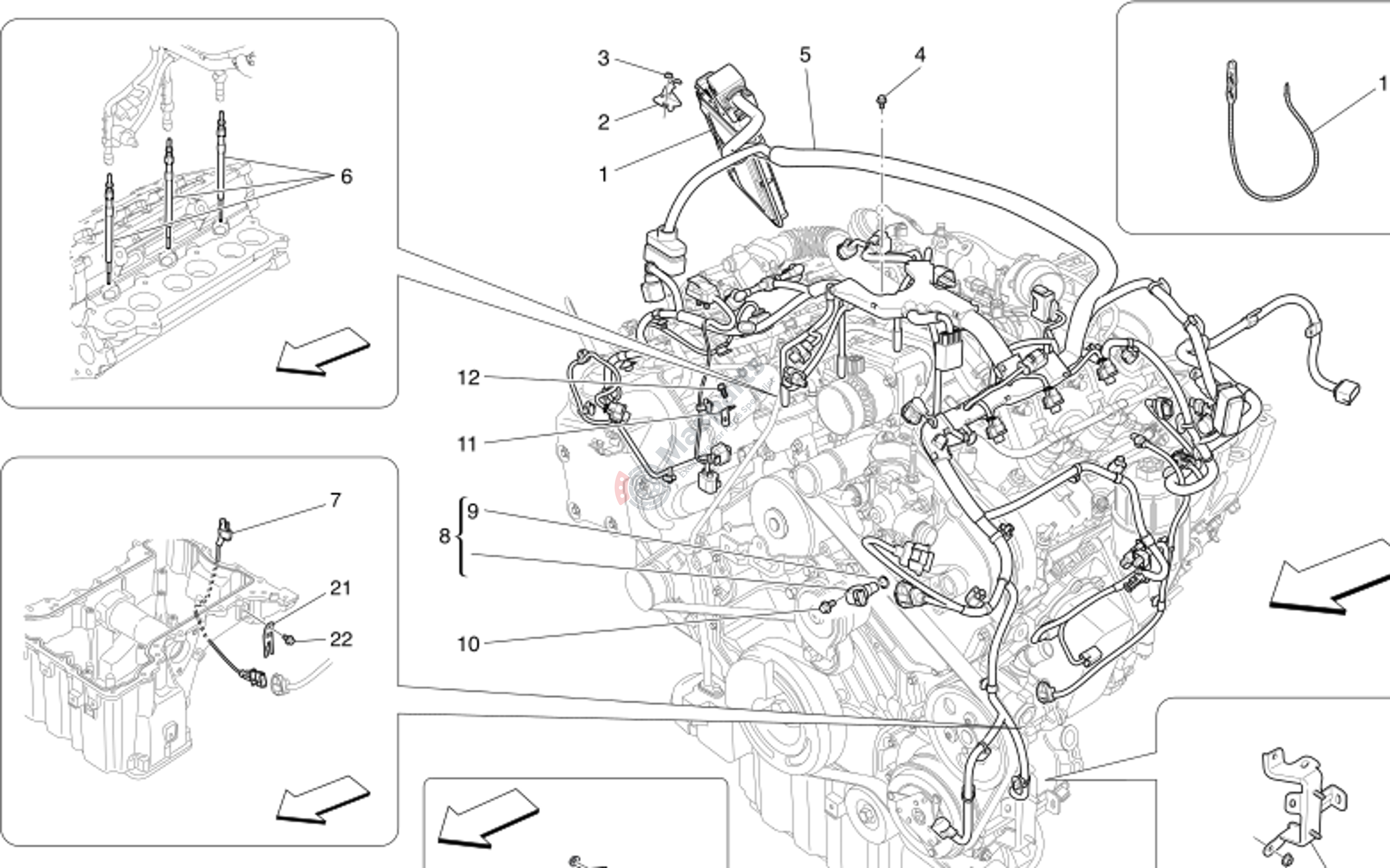

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670108936 | Diesel Ignition Ecu (Hw) |
$1,087.82 |
|
|
| 2 | M-670005090 | Control Unit Fixing Bracket |
$9.45 |
|
|
| 4 | M-46328709 | Flange Bolt |
$5.01 |
|
|
| 5 | M-46341721 | Engine And Gearbox Cable |
$985.12 |
|
|
| 6 | M-46341533 | Glow Plug |
$142.58 |
|
|
| 7 | M-46328171 | Sensor |
$241.29 |
|
|
| 8 | M-46328202 | Timing Sensor |
$119.65 |
|
|
| 9 | M-673001051 | O.R. Gasket |
$2.99 |
|
|
| 10 | M-46328681 | Flange Bolt |
$2.67 |
|
|
| 11 | M-46328769 | Support Bracket For Harness |
$4.60 |
|
|
| 12 | M-46328683 | Flange Bolt |
$1.17 |
|
|
| 13 | M-46329513 | Wiring Clamp |
$3.11 |
|
|
| 14 | M-46328825 | Cables Support |
$76.71 |
|
|
| 15 | M-673001154 | Flange Nut |
$1.54 |
|
|
| 16 | M-670005138 | Control Unit |
$173.86 |
|
|
| 21 | M-46329360 | Connector Bracket |
$20.95 |
|
|
| 22 | M-46328681 | Flange Bolt |
$2.67 |
|
|
| 23 | M-670039356 | Control Unit Support Bracket |
$12.27 |
|
