Diagram image not available

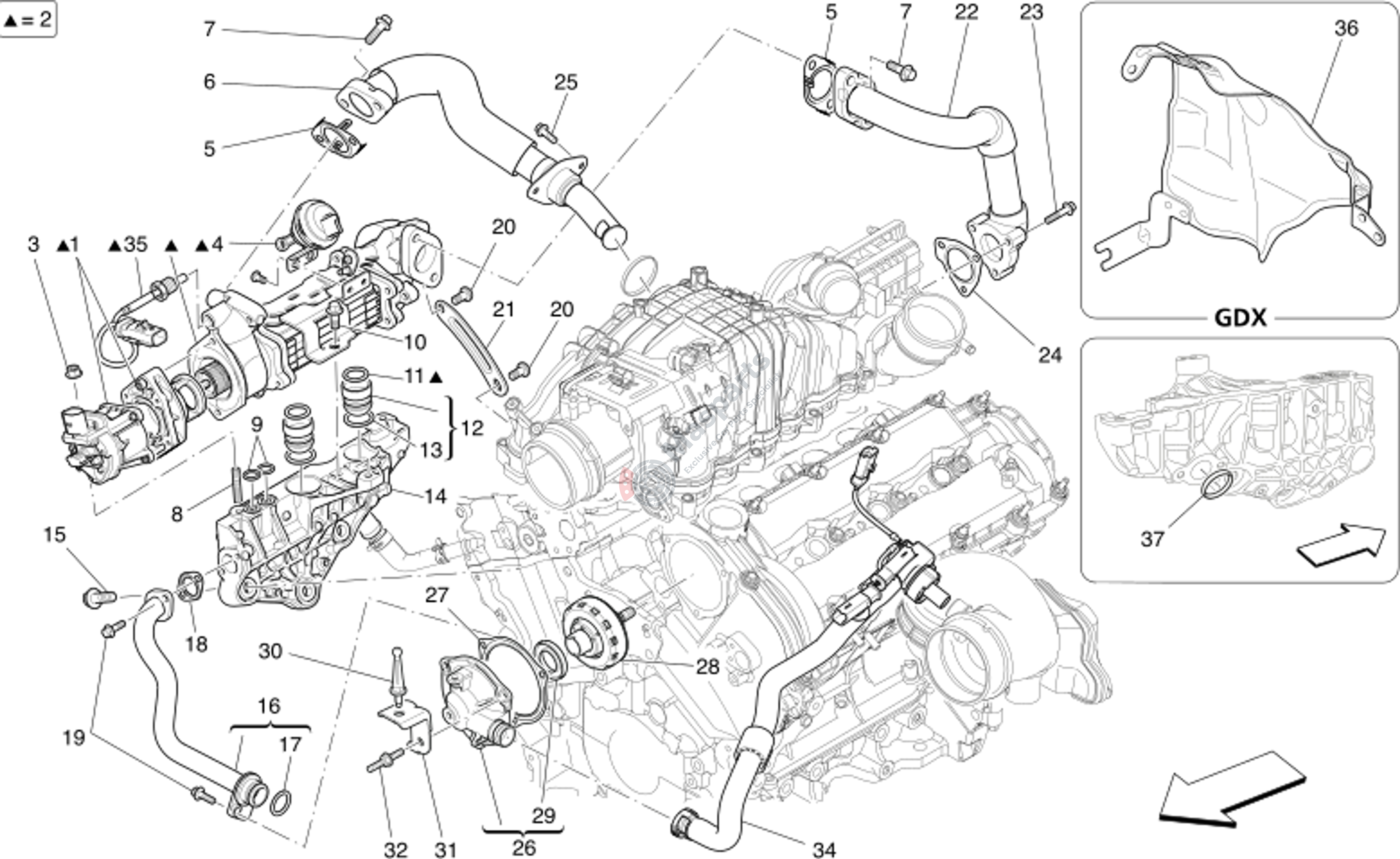

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673001269 | Egr Valve Kit With Gasket An |
$695.89 |
|
|
| 3 | M-46328657 | Flange Nut |
$3.71 |
|
|
| 4 | M-46338466 | Actuator |
$240.03 |
|
|
| 5 | M-46328293 | Gasket |
$8.56 |
|
|
| 6 | M-46338351 | Pipe |
$314.33 |
|
|
| 7 | M-46333724 | Screw M8X25 |
$13.20 |
|
|
| 8 | M-673001273 | Stud |
$2.39 |
|
|
| 9 | M-46335256 | O.R. Gasket |
$3.61 |
|
|
| 10 | M-46328697 | Flange Bolt |
$2.16 |
|
|
| 11 | M-46334926 | O-Ring Egr 18.64X3.53 Epdm |
$3.61 |
|
|
| 12 | M-46328284 | Bushing |
$24.03 |
|
|
| 13 | M-46335091 | Egr O-Ring |
$3.71 |
|
|
| 14 | M-46328280 | Cpl Egr System Bracket |
$422.69 |
|
|
| 15 | M-46328714 | Flange Bolt |
$2.58 |
|
|
| 16 | M-46328296 | Tube |
$166.69 |
|
|
| 17 | M-46328363 | O.R. Gasket |
$3.61 |
|
|
| 18 | M-46328298 | Gasket |
$20.42 |
|
|
| 19 | M-46328686 | Flange Bolt |
$2.06 |
|
|
| 20 | M-46328289 | Torx Screw |
$2.48 |
|
|
| 21 | M-46328288 | Bracket |
$6.39 |
|
|
| 22 | M-46338352 | Pipe |
$193.36 |
|
|
| 23 | M-46333723 | Screw M6X30 |
$9.48 |
|
|
| 24 | M-46328295 | Gasket |
$24.94 |
|
|
| 25 | M-46328683 | Flange Bolt |
$1.13 |
|
|
| 26 | M-46328197 | Cpl Oil Separator Cover |
$170.11 |
|
|
| 27 | M-46328196 | Gasket |
$20.42 |
|
|
| 28 | M-46328139 | Oil Separator |
$152.58 |
|
|
| 29 | M-46328345 | O-Ring |
$6.60 |
|
|
| 30 | M-46328350 | Ball Pin |
$9.28 |
|
|
| 31 | M-46328340 | Bracket |
$24.23 |
|
|
| 32 | M-46328201 | Stud |
$3.09 |
|
|
| 34 | M-670009615 | Cpl. Outlet Pipe Blow-By |
$451.49 |
|
|
| 35 | M-46330272 | Egt Sensor |
$119.50 |
|
|
| 37 | M-46328357 | Sleeve Gasket |
$5.15 |
|
