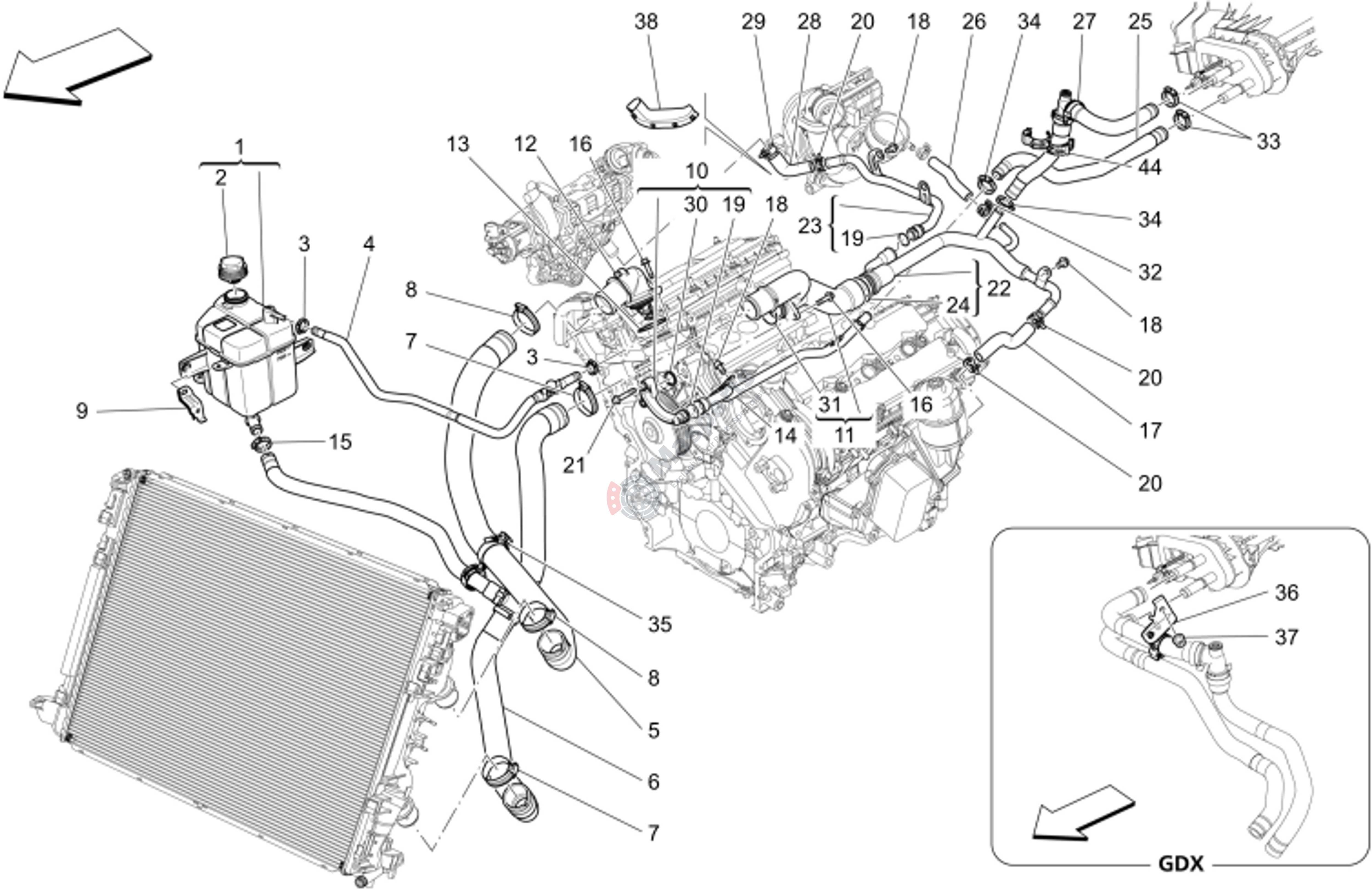

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670004150 | Liquid Cooling Plate |
$68.99 |
|
|
| 2 | M-670003408 | Mount Plug |
$13.70 |
|
|
| 3 | M-675000373 | Strap Collar |
$1.90 |
|
|
| 4 | M-670033310 | Vent Pipe |
$38.78 |
|
|
| 5 | M-670033308 | Radiator Water Inlet Pipe |
$50.00 |
|
|
| 6 | M-670107811 | Water Outlet Sleeve |
$73.70 |
|
|
| 7 | M-675000345 | Screw Collar |
$3.73 |
|
|
| 8 | M-675000345 | Screw Collar |
$3.73 |
|
|
| 9 | M-670007862 | Bracket |
$10.01 |
|
|
| 10 | M-46328194 | Delivery Pipe |
$64.03 |
|
|
| 11 | M-46328184 | Sleeve |
$335.62 |
|
|
| 12 | M-46328183 | Thermostatic Valve |
$175.07 |
|
|
| 13 | M-46328354 | Or Gasket |
$11.09 |
|
|
| 14 | M-46343717 | Coolant Inlet Pipe |
$141.21 |
|
|
| 15 | M-675000658 | Snap Collar |
$5.55 |
|
|
| 16 | M-46328687 | Flange Bolt |
$2.20 |
|
|
| 17 | M-46328306 | Water Return Sleeve From Oil |
$51.07 |
|
|
| 18 | M-46328696 | Flange Bolt |
$2.09 |
|
|
| 19 | M-46328356 | Or Gasket |
$2.20 |
|
|
| 20 | M-46328743 | Clamp |
$1.89 |
|
|
| 21 | M-46328688 | Flange Bolt |
$3.04 |
|
|
| 22 | M-46343719 | Coolant Return Pipe |
$391.72 |
|
|
| 23 | M-46343721 | Coolant Return Pipe |
$174.10 |
|
|
| 24 | M-46328355 | Or Gasket |
$2.94 |
|
|
| 25 | M-670033306 | Water Delivery Sleeve To Hea |
$10.74 |
|
|
| 26 | M-46328224 | Sleeve |
$41.98 |
|
|
| 27 | M-670033307 | Water Return Sleeve From Hea |
$27.17 |
|
|
| 28 | M-46328302 | Coolant Pipe |
$65.49 |
|
|
| 29 | M-46328744 | Clamp |
$2.51 |
|
|
| 30 | M-46328357 | Sleeve Gasket |
$5.23 |
|
|
| 31 | M-46328353 | Or Gasket |
$13.61 |
|
|
| 32 | M-46328742 | Clamp |
$1.47 |
|
|
| 33 | M-675000334 | Collar Clip |
$2.50 |
|
|
| 34 | M-675000372 | Strap Collar |
$1.78 |
|
|
| 35 | M-670006735 | Clip |
$3.62 |
|
|
| 38 | M-46328327 | Hose Cover |
$70.04 |
|
|
| 44 | M-675000351 | Nemo Bes Fastening Collar D. |
$2.82 |
|
