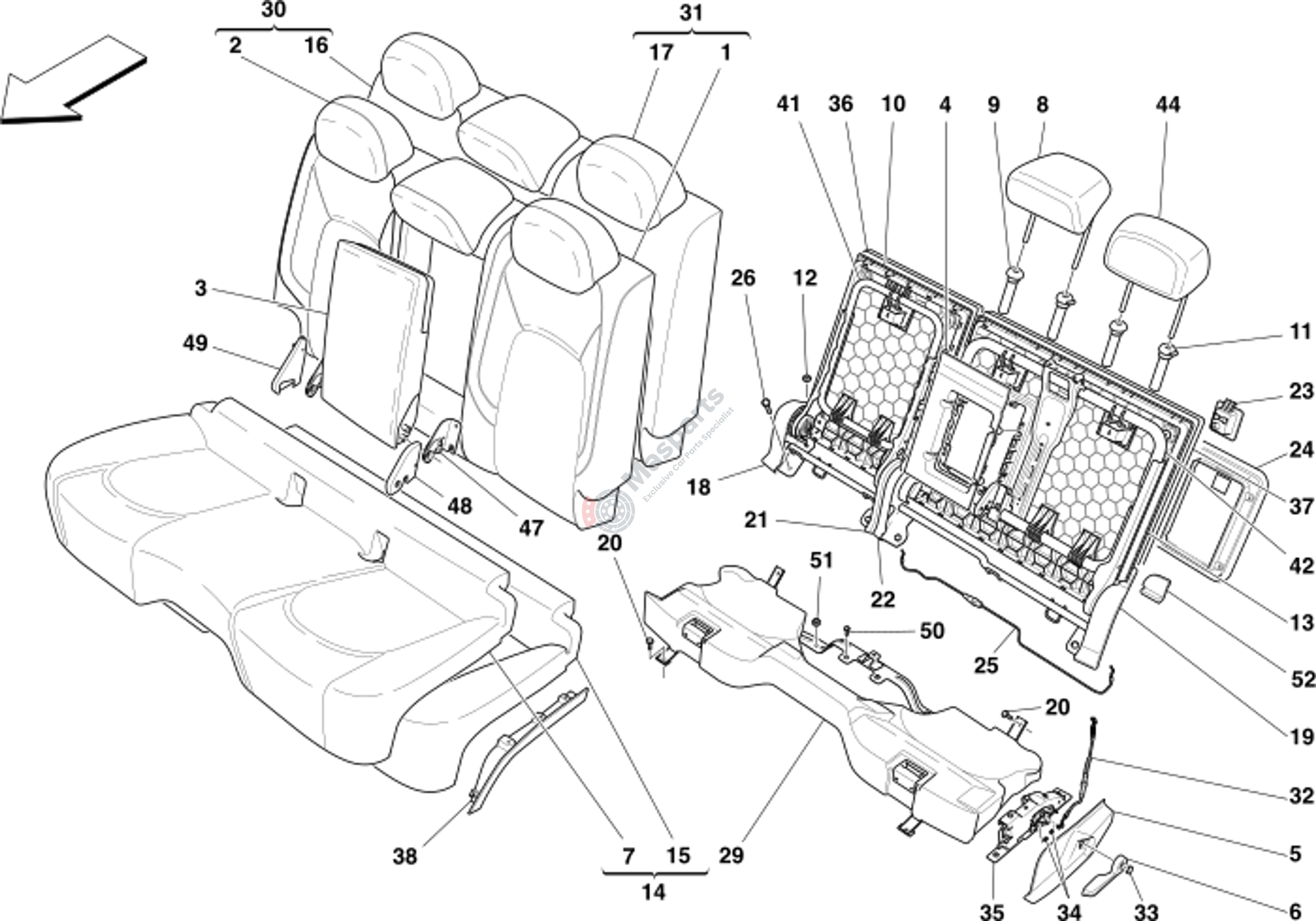

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 10 | M-673005531 | Rear Plastic Panel Rh Black |
$69.48 |
|
|
| 12 | M-675000184 | Nut |
$1.78 |
|
|
| 13 | M-673005532 | Rear Plastic Panel Lh Black |
$78.56 |
|
|
| 16 | M-673005521 | Rh Seatback Padding |
$158.08 |
|
|
| 17 | M-673005522 | Lh Seatback Padding |
$226.39 |
|
|
| 20 | M-675000655 | Screw |
$1.92 |
|
|
| 25 | M-673005551 | Bowden Cable |
$22.51 |
|
|
| 26 | M-675000655 | Screw |
$1.92 |
|
|
| 29 | M-673005570 | Epp Interface With Metal Bra |
$462.60 |
|
|
| 32 | M-673006855 | Bowden Cable |
$22.51 |
|
|
| 34 | M-673005517 | End Stop Rubber |
$7.04 |
|
|
| 35 | M-673005552 | Rh Recliner Mechanism |
$161.59 |
|
|
| 41 | M-673005519 | Rh Seatback Structure 40% |
$492.17 |
|
|
| 42 | M-673007149 | Lh Seatback Structure 60% |
$884.01 |
|
|
| 47 | M-673005565 | Armrest Bracket |
$26.33 |
|
|
| 50 | M-675000111 | Screw |
$2.62 |
|
|
| 51 | M-675000043 | Nut |
$1.11 |
|
