Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

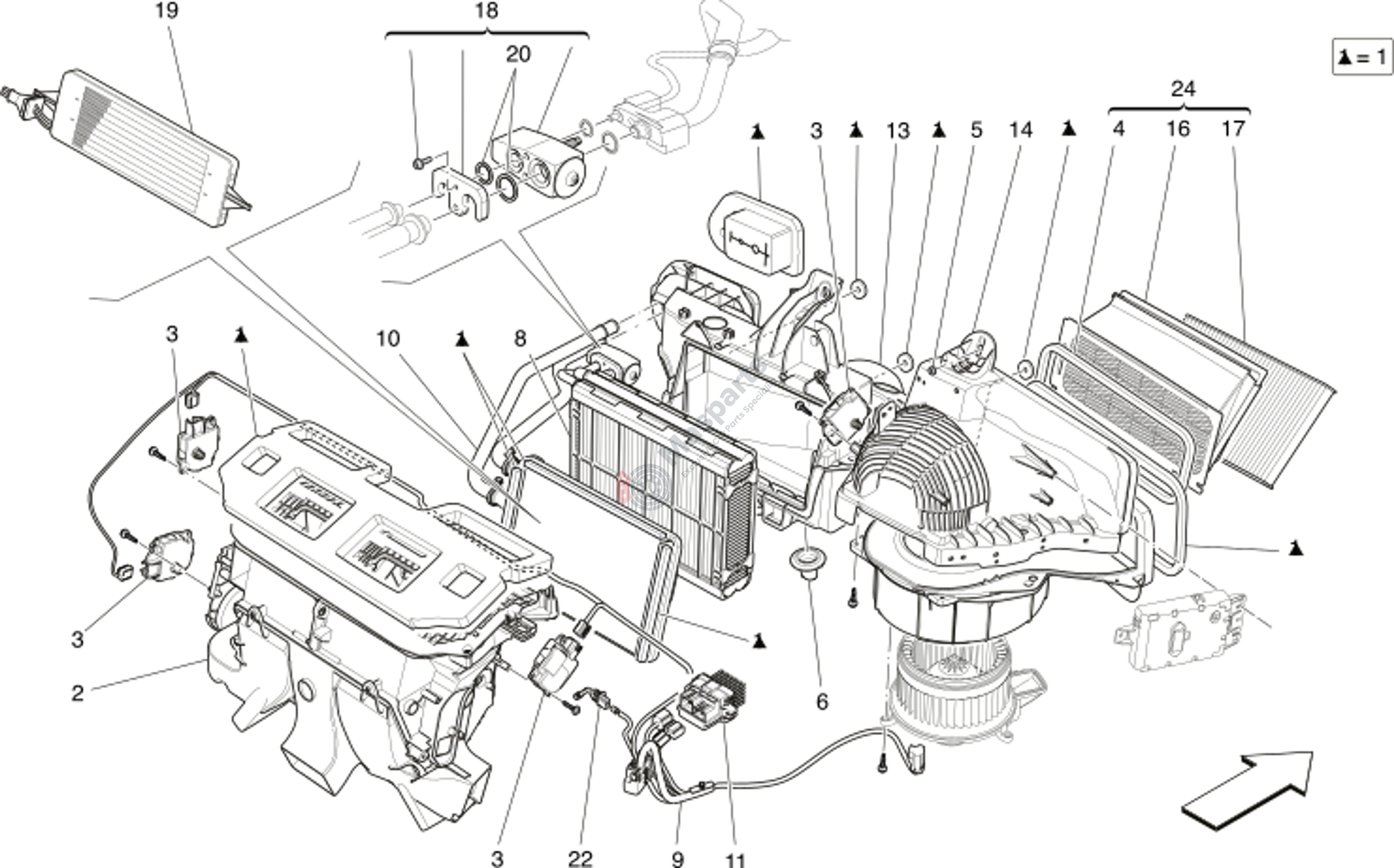

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673000099 | Lhd Kit Gasket |
$262.40 |
|
|
| 2 | M-673003282 | Lhd Module Air Distribution |
$777.59 |
|
|
| 3 | M-673005493 | Hvac Actuator |
$161.62 |
|
|
| 4 | M-670007353 | Gasket |
$31.17 |
|
|
| 5 | M-675000093 | Nut |
$1.48 |
|
|
| 6 | M-675000425 | Condensation Outlet Hose |
$17.86 |
|
|
| 8 | M-673009432 | Evaporator Lhd Ds <My19. |
$1,050.53 |
|
|
| 9 | M-673000090 | Lhd Cable |
$158.54 |
|
|
| 10 | M-673000093 | Lhd Kit Heating |
$624.80 |
|
|
| 13 | M-673000095 | Lhd Evaporator Structure |
$172.80 |
|
|
| 14 | M-673000101 | Lhd Module Inlet Air |
$367.99 |
|
|
| 16 | M-670005020 | Air Conditioner Box |
$32.32 |
|
|
| 17 | M-670005021 | Pollen Filter |
$51.88 |
|
|
| 18 | M-673003704 | Txv Kit |
$235.73 |
|
|
| 19 | M-673003284 | Ptc Heater Lhd |
$1,020.02 |
|
|
| 20 | M-673005761 | Txv Gaskets Kit |
$118.40 |
|
|
| 22 | M-673000104 | Temperature Sensor |
$31.07 |
|
|
| 24 | M-670004016 | Air Conditioner Box With Pol |
$86.03 |
|
