The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

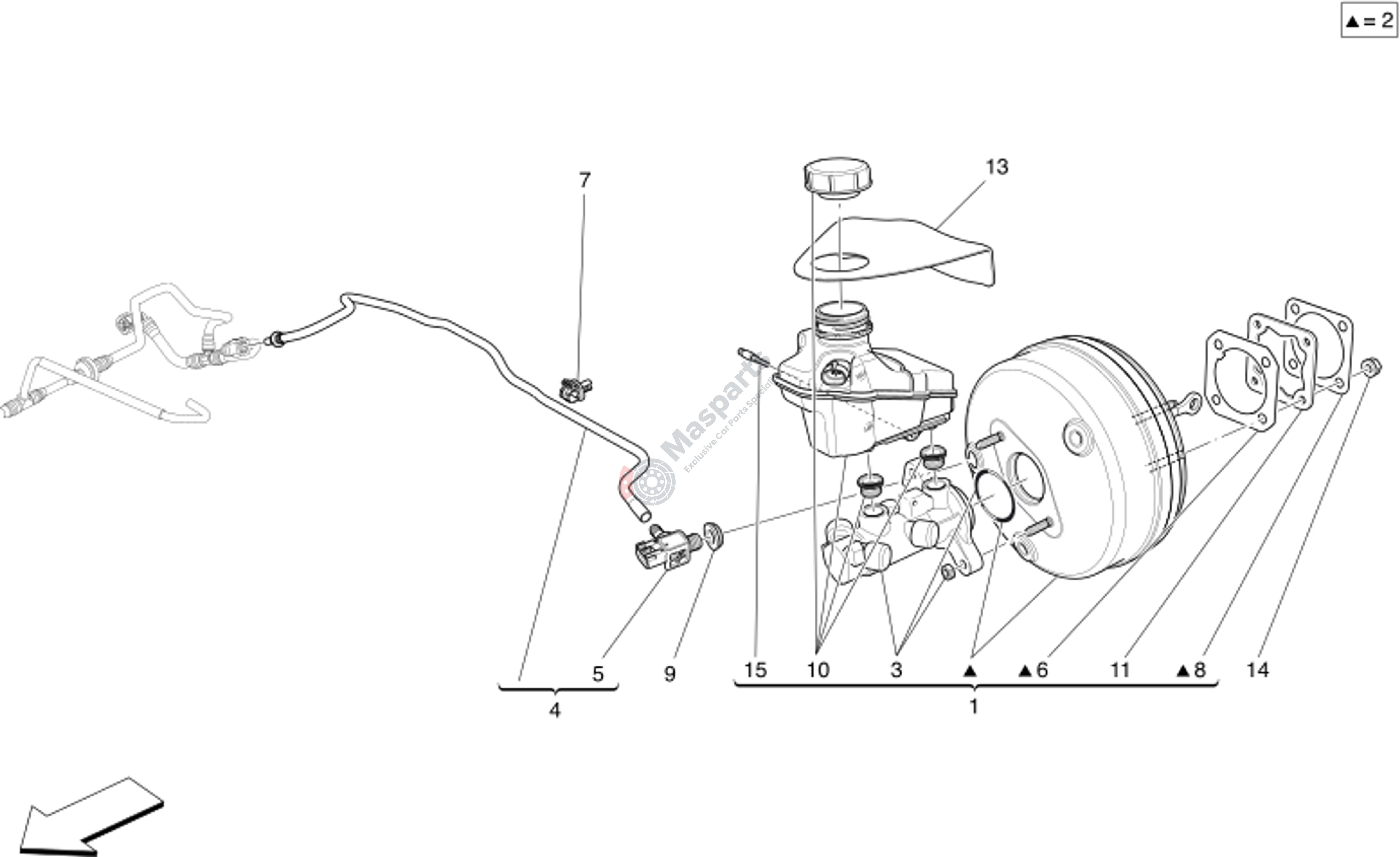

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670036704 | Power Brakes Assy |
$413.14 |
|
|
| 2 | M-673005988 | Servo Brake M161 |
$604.50 |
|
|
| 3 | M-673005989 | Brake Pump Lhd M161 |
$443.56 |
|
|
| 4 | M-670032305 | Vacuum Pipe Assembly |
$109.91 |
|
|
| 5 | M-675000038 | Pressure Transmitter |
$72.11 |
|
|
| 6 | M-673002019 | Brake Booster Gasket |
$39.88 |
|
|
| 7 | M-675000013 | Clip |
$0.99 |
|
|
| 8 | M-673009227 | Gasket |
$2.44 |
|
|
| 9 | M-673002073 | Gasket |
$12.11 |
|
|
| 10 | M-673007334 | Brake Booster Tank |
$185.47 |
|
|
| 11 | M-673009226 | Spacer |
$42.80 |
|
|
| 14 | M-675001939 | Nut M8 With Washer |
$2.01 |
|
