Diagram image not available

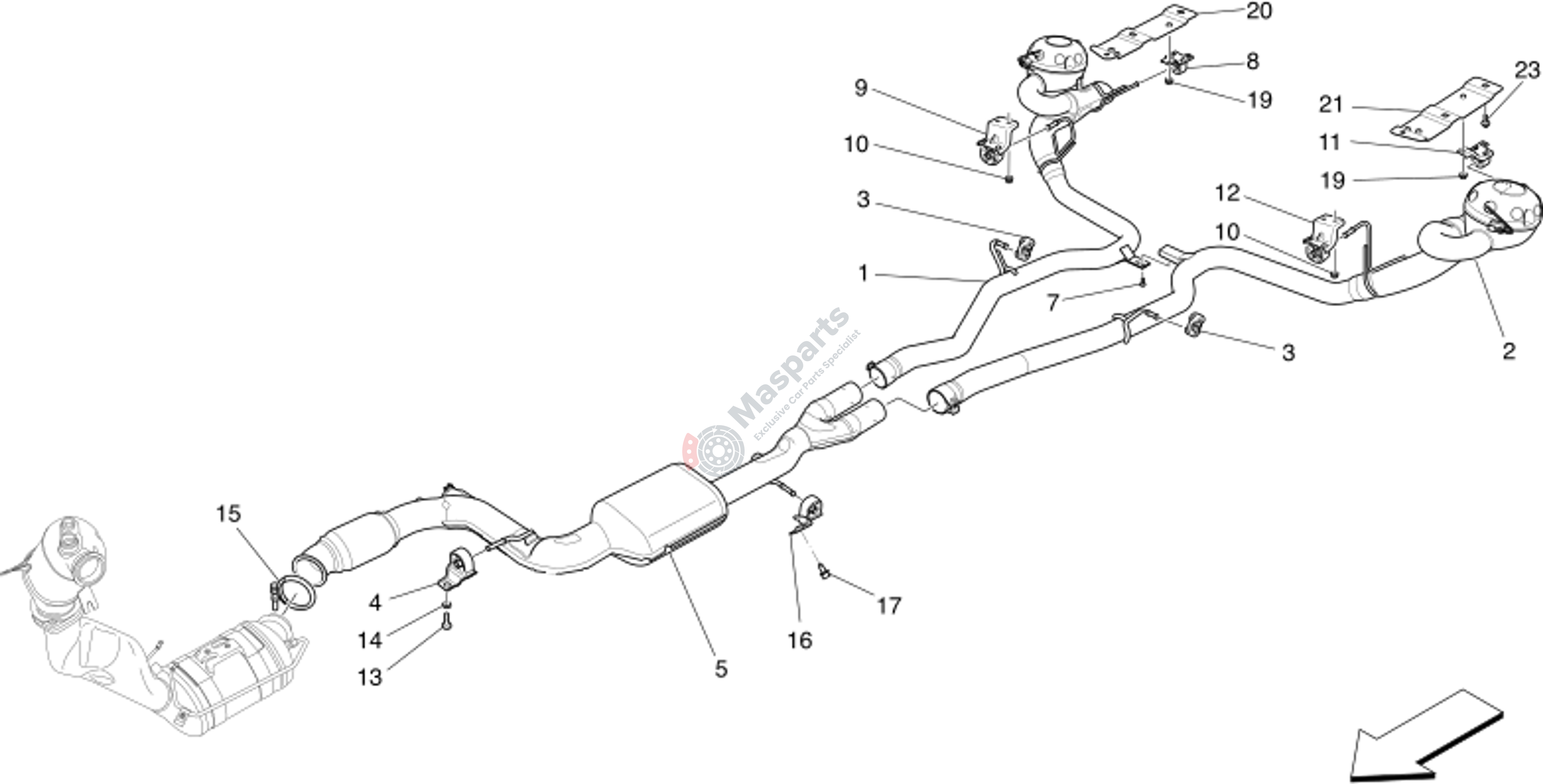

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670039691 | Rear Right Silencer |
$1,752.68 |
|
|
| 2 | M-670039690 | Rear Left Silencer |
$1,761.16 |
|
|
| 3 | M-675000059 | Small Block |
$16.13 |
|
|
| 4 | M-670001494 | Central Support |
$36.36 |
|
|
| 5 | M-670034578 | Hot-End (Scr) |
$2,702.79 |
|
|
| 7 | M-675000705 | Screw |
$1.41 |
|
|
| 8 | M-670031936 | Rh Rear Silencer Support |
$49.34 |
|
|
| 9 | M-670039693 | Rh Front Bracket Exhaust Pip |
$32.81 |
|
|
| 10 | M-675000328 | Nut |
$1.39 |
|
|
| 11 | M-670034561 | Lh Rear Silencer Support |
$18.78 |
|
|
| 12 | M-670039692 | Lh Front Bracket Exhaust Pip |
$32.81 |
|
|
| 14 | M-675000089 | Washer |
$0.98 |
|
|
| 15 | M-670006145 | Clamp |
$39.27 |
|
|
| 16 | M-670034586 | Central Support |
$25.79 |
|
|
| 17 | M-675000487 | Screw Tc/Ie M8X20 Ros.P.Imp. |
$1.47 |
|
|
| 19 | M-675000328 | Nut |
$1.39 |
|
|
| 20 | M-670178878 | Rear Rh Compl Bracket |
$19.51 |
|
|
| 21 | M-670178879 | Rear Lh Compl Bracket |
$19.51 |
|
|
| 23 | M-675000761 | Screw |
$2.96 |
|
