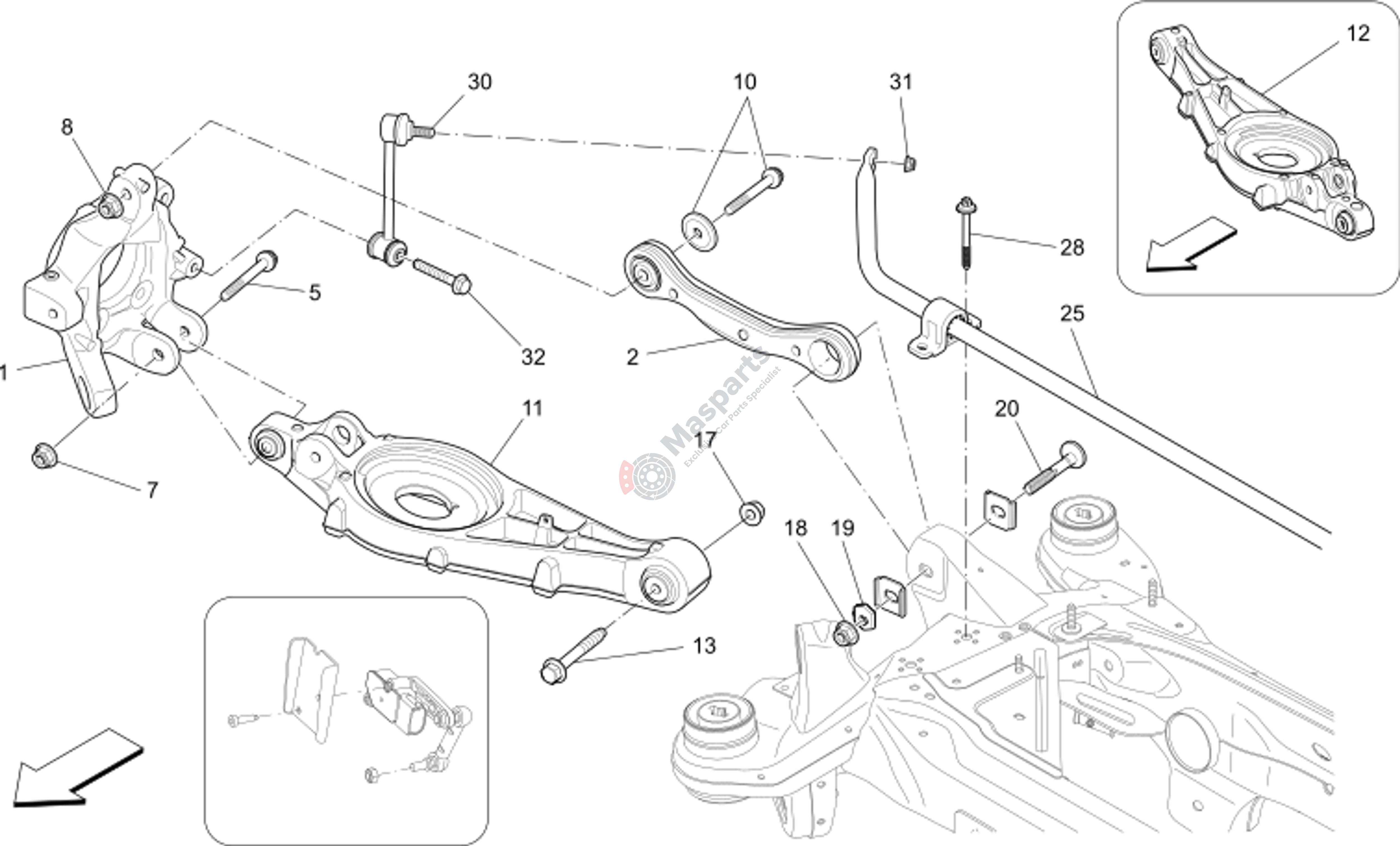

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670108079 | Cpl Rh Rear Suspension |
$603.45 |
|
|
| 2 | M-670308370 | Asta Lat.Sosp.Post. |
$81.99 |
|
|
| 5 | M-670035563 | Screw ˇ |
$9.62 |
|
|
| 7 | M-675000584 | Nut |
$5.93 |
|
|
| 8 | M-670035573 | Nut |
$3.70 |
|
|
| 10 | M-670035572 | Special Screw |
$5.77 |
|
|
| 11 | M-670106334 | Rh Rear Suspension Lever M16 |
$277.23 |
|
|
| 12 | M-670106331 | Lh Rear Suspension Lever M16 |
$277.23 |
|
|
| 13 | M-670035562 | Screw ˇ |
$6.69 |
|
|
| 17 | M-675000127 | Nut |
$2.23 |
|
|
| 18 | M-670035570 | Nut ˇ |
$3.06 |
|
|
| 19 | M-670002806 | Special Washer With Eccentri |
$6.15 |
|
|
| 20 | M-670035569 | Screw |
$6.64 |
|
|
| 25 | M-670038850 | Rear Stabilizer Bar |
$593.65 |
|
|
| 28 | M-675000140 | Screw |
$2.52 |
|
|
| 30 | M-670038693 | Spherical Tension Rod Rh |
$50.81 |
|
|
| 31 | M-670002916 | Nut |
$2.48 |
|
|
| 32 | M-670035582 | Screw ˇ |
$3.92 |
|
