Diagram image not available

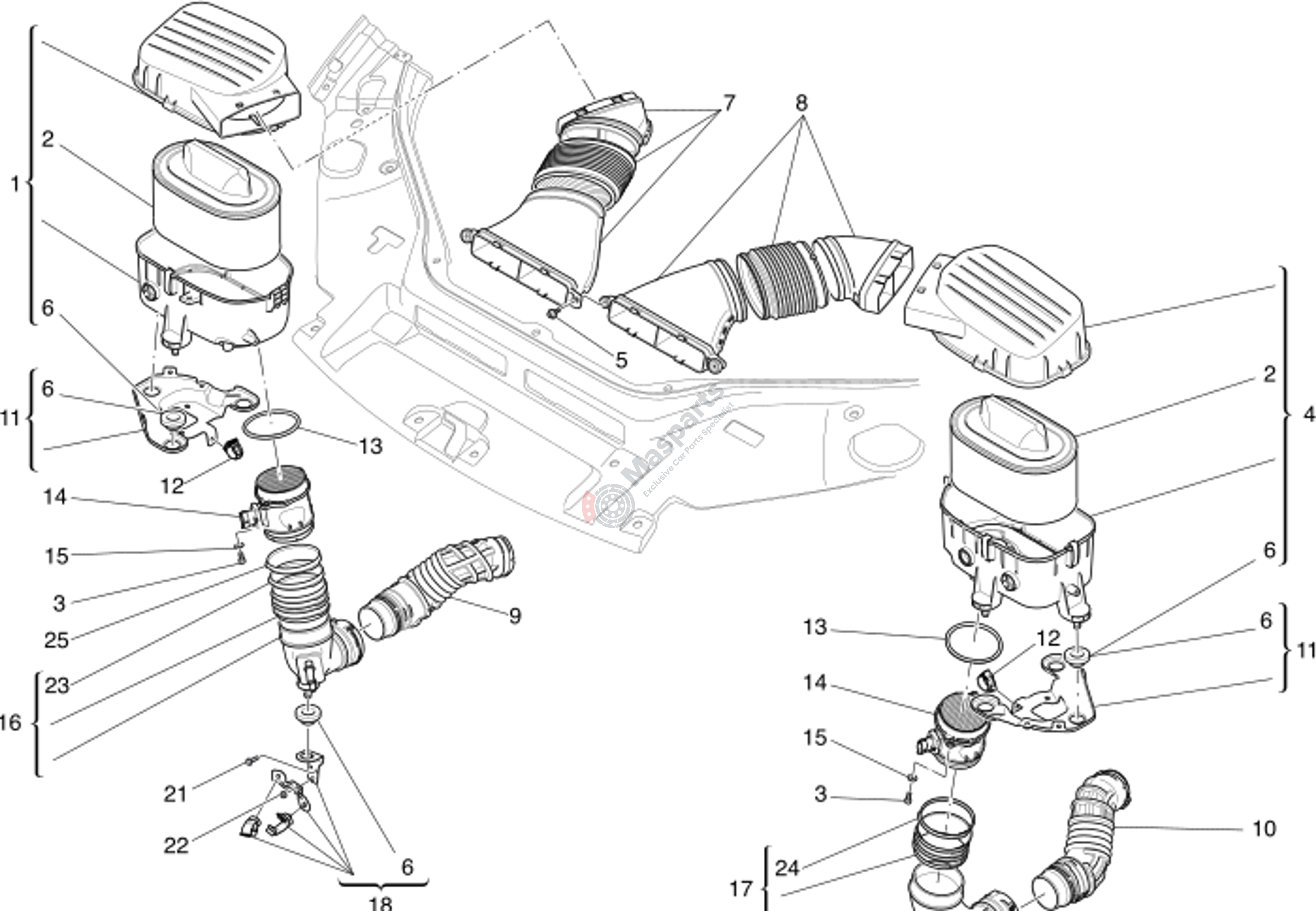

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673007389 | Rh Filter Box Cpl |
$94.34 |
|
|
| 2 | M-670001545 | Air Filter |
$59.38 |
|
|
| 4 | M-673007391 | Lh Filter Box Cpl V6 Tt |
$94.34 |
|
|
| 5 | M-675000776 | Screw |
$2.12 |
|
|
| 6 | M-670005249 | Bushing |
$14.57 |
|
|
| 7 | M-670031925 | Upper Rh Air Intake Sleeve |
$133.23 |
|
|
| 8 | M-670031926 | Upper Lh Air Intake Sleeve |
$133.23 |
|
|
| 9 | M-670031927 | Lower Rh Air Intake Sleeve |
$148.90 |
|
|
| 10 | M-670031928 | Lower Lh Air Intake Sleeve |
$148.90 |
|
|
| 11 | M-670038730 | Filter Box Bracket |
$16.01 |
|
|
| 12 | M-675000135 | Clip |
$1.00 |
|
|
| 13 | M-670005248 | Circlip |
$97.00 |
|
|
| 14 | M-670002164 | Air Flow Meter |
$214.09 |
|
|
| 15 | M-675000097 | Washer |
$1.09 |
|
|
| 16 | M-673007397 | Rh Clean Air Intake Sleeve |
$130.29 |
|
|
| 17 | M-670101260 | Lh Clean Air Intake Sleeve |
$135.19 |
|
|
| 18 | M-670102965 | Rh Clean Air Intake Sleeve B |
$14.63 |
|
|
| 19 | M-670038733 | Lh Clean Air Intake Sleeve B |
$3.18 |
|
|
| 21 | M-675000308 | Screw |
$1.66 |
|
|
| 23 | M-675000551 | Snap-On Hose Band Clamp D.85 |
$4.64 |
|
|
| 24 | M-675000551 | Snap-On Hose Band Clamp D.85 |
$4.64 |
|
