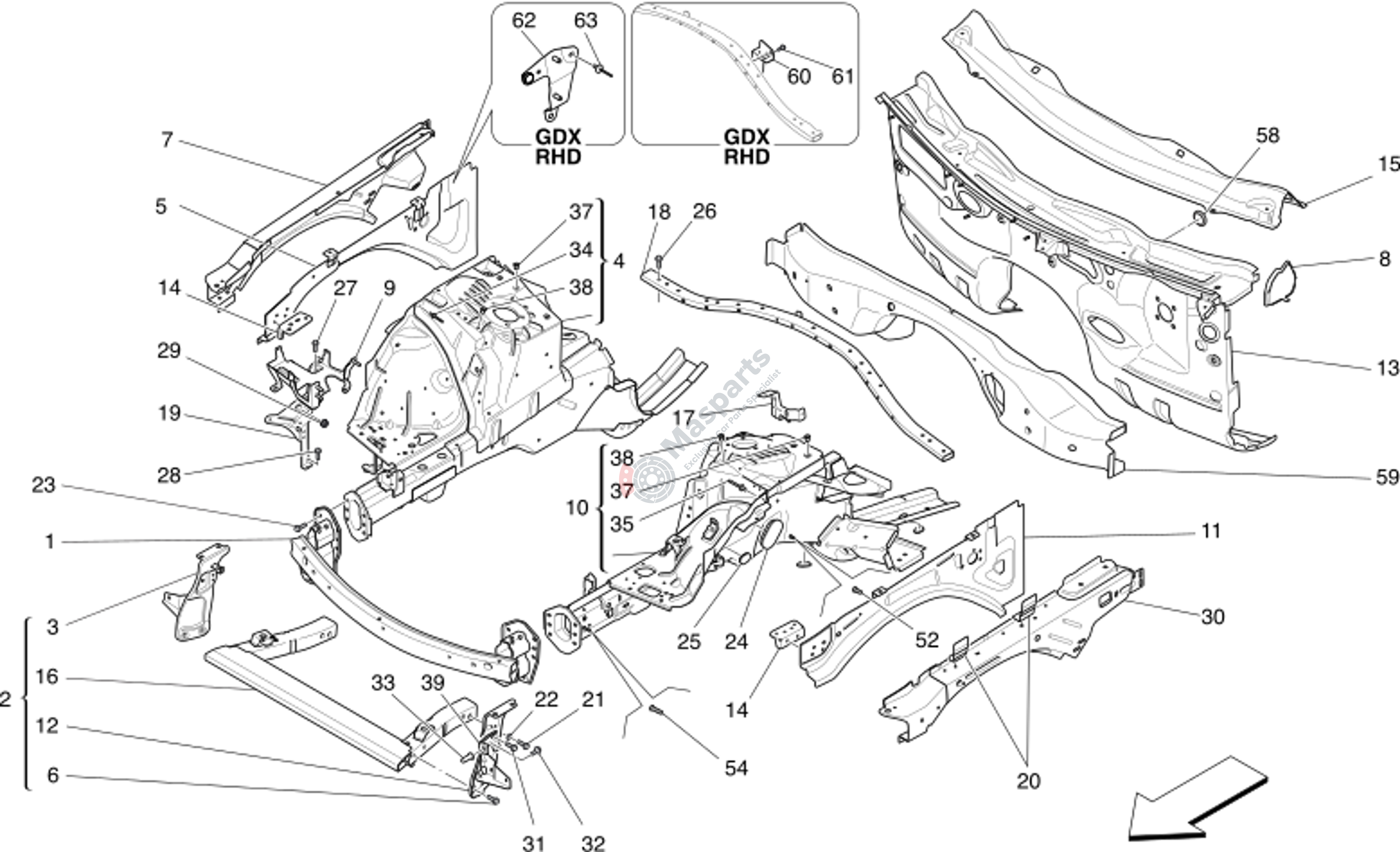

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673007200 | Front Cross Member Ass. |
$561.73 |
|
|
| 2 | M-670032498 | Third Load Path Cross Member |
$212.87 |
|
|
| 3 | M-670175518 | Rh Bracket |
$37.12 |
|
|
| 4 | M-673009228 | R.H. Complete Front Control |
$2,244.95 |
|
|
| 5 | M-673005729 | Rh Upper Strut Frame Assembl |
$171.48 |
|
|
| 6 | M-675000469 | Screw |
$1.28 |
|
|
| 7 | M-673005655 | Rh Upper Rail Frame Assembly |
$149.79 |
|
|
| 8 | M-670033829 | Diaphragm |
$26.78 |
|
|
| 9 | M-670004050 | Fuse Box Support Bracket |
$51.63 |
|
|
| 10 | M-673009229 | L.H. Complete Front Control |
$2,156.25 |
|
|
| 11 | M-673005658 | Lh Upper Rail Frame Assembly |
$163.59 |
|
|
| 13 | M-673009297 | Lower Instrument Panel |
$378.66 |
|
|
| 14 | M-670034251 | Headlamp Support Bracket |
$28.77 |
|
|
| 15 | M-673005662 | Windscreen Lower Cross Membe |
$84.44 |
|
|
| 16 | M-670175522 | Pedestrian Impact Crossmembe |
$415.88 |
|
|
| 17 | M-670004846 | 24-Way Holder Bracket |
$5.76 |
|
|
| 18 | M-670106490 | Lhd Suspension Connecting Cr |
$92.73 |
|
|
| 19 | M-670031030 | Bracket |
$93.01 |
|
|
| 20 | M-670034858 | Fender Bracket |
$3.11 |
|
|
| 21 | M-670036974 | Special Screw |
$5.06 |
|
|
| 22 | M-675000105 | Washer |
$2.23 |
|
|
| 23 | M-670035227 | Screw And Washer |
$2.56 |
|
|
| 24 | M-670004843 | Plug |
$3.69 |
|
|
| 25 | M-670004844 | Plug |
$3.08 |
|
|
| 26 | M-675000470 | Screw |
$1.34 |
|
|
| 27 | M-675000382 | Screw |
$2.47 |
|
|
| 28 | M-675000421 | Screw |
$2.10 |
|
|
| 29 | M-675000095 | Nut |
$0.79 |
|
|
| 30 | M-673005665 | Lh Upper Sprag |
$169.50 |
|
|
| 31 | M-675000469 | Screw |
$1.28 |
|
|
| 32 | M-675000469 | Screw |
$1.28 |
|
|
| 33 | M-670002185 | Rivet |
$3.00 |
|
|
| 34 | M-670032695 | Rivet |
$5.06 |
|
|
| 35 | M-670032695 | Rivet |
$5.06 |
|
|
| 37 | M-670005395 | Rivet |
$3.69 |
|
|
| 38 | M-670006571 | Rivet |
$2.95 |
|
|
| 39 | M-670034982 | Bracket |
$4.60 |
|
|
| 52 | M-675000623 | Special Screw |
$1.74 |
|
|
| 54 | M-675000628 | Special Screw |
$2.20 |
|
|
| 58 | M-670030073 | Rubber Plug |
$1.74 |
|
|
| 59 | M-673008198 | Front Crossmember |
$232.58 |
|
