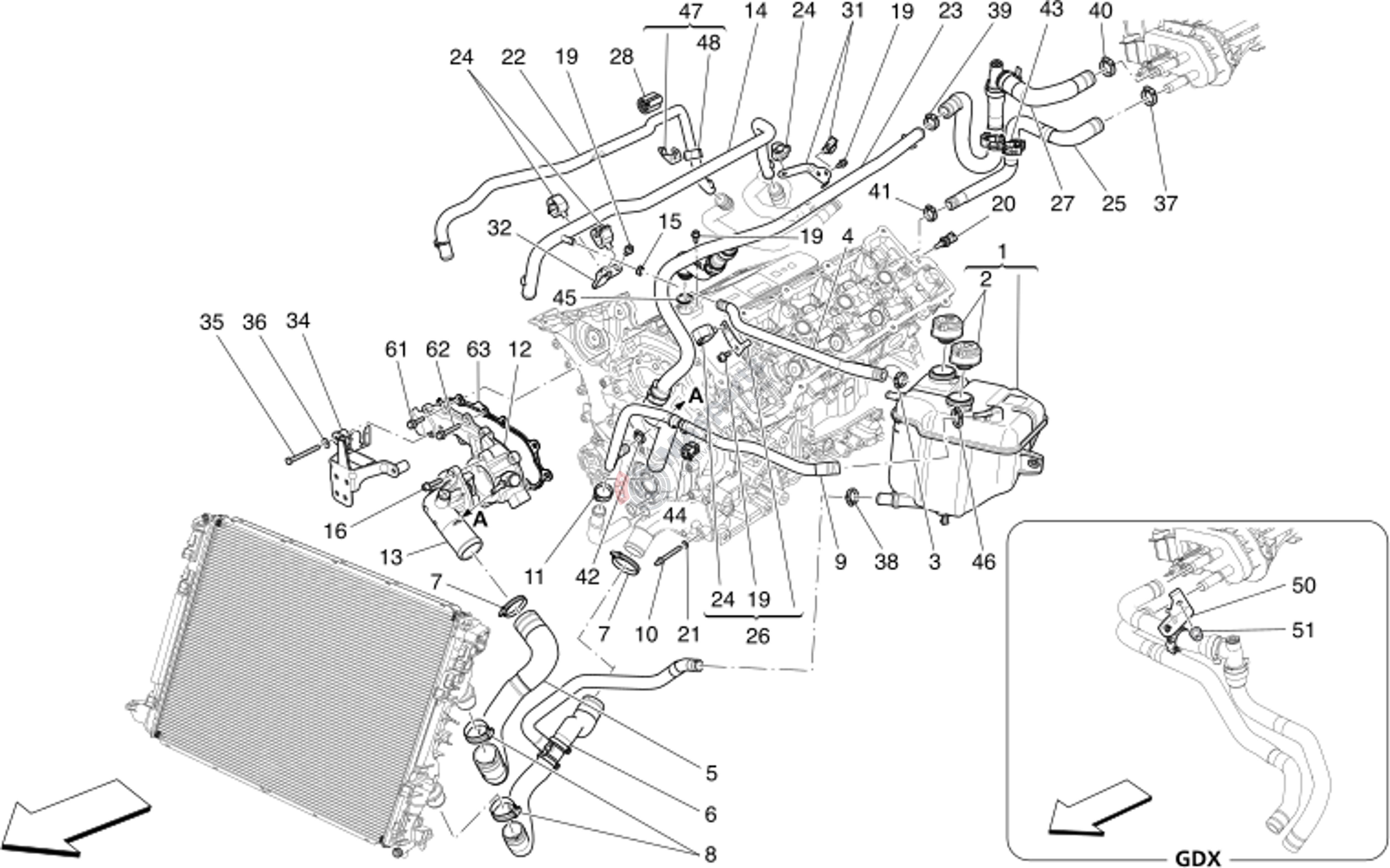

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670031651 | Reservoir Assy Engine Coolan |
$94.93 |
|
|
| 2 | M-670003408 | Mount Plug |
$13.92 |
|
|
| 3 | M-675000344 | Strap Collar |
$2.41 |
|
|
| 4 | M-670031952 | Secondary Vent Pipe |
$8.71 |
|
|
| 5 | M-670031948 | Radiator Water Inlet Pipe |
$32.90 |
|
|
| 6 | M-670031949 | Water Outlet Sleeve |
$81.48 |
|
|
| 7 | M-11417670 | Nemo Bes Fastening Collar D3 |
$9.79 |
|
|
| 8 | M-675000345 | Screw Collar |
$3.80 |
|
|
| 9 | M-670031951 | Main Vent Pipe |
$40.49 |
|
|
| 10 | M-227281 | Stud |
$18.30 |
|
|
| 11 | M-262109 | Clamp |
$2.45 |
|
|
| 13 | M-330424 | Cpl Thermostat |
$101.41 |
|
|
| 14 | M-882497 | Water Secondary Pipe |
$50.31 |
|
|
| 15 | M-675000373 | Strap Collar |
$1.93 |
|
|
| 16 | M-231620 | Socket Head Screw With Washe |
$1.64 |
|
|
| 19 | M-231616 | Screw |
$2.10 |
|
|
| 20 | M-180137 | Water Temperature Sensor |
$39.76 |
|
|
| 21 | M-675000106 | Washer |
$1.64 |
|
|
| 22 | M-296492 | Secondary Water Pipe |
$56.80 |
|
|
| 23 | M-333706 | H2O Hose From Radiator |
$265.90 |
|
|
| 24 | M-259508 | Clip |
$1.73 |
|
|
| 25 | M-670031945 | Water Delivery Sleeve To Hea |
$132.66 |
|
|
| 26 | M-292354 | Cpl Pipe Support Bracket |
$18.93 |
|
|
| 27 | M-670101977 | Sleeve |
$105.15 |
|
|
| 28 | M-298362 | Rubber |
$6.66 |
|
|
| 31 | M-300867 | Bracket |
$206.34 |
|
|
| 32 | M-287986 | Bracket |
$79.16 |
|
|
| 34 | M-834094 | Bracket |
$59.67 |
|
|
| 35 | M-10903424 | Screw |
$2.46 |
|
|
| 36 | M-14498824 | Washer. |
$1.72 |
|
|
| 37 | M-675000334 | Collar Clip |
$2.54 |
|
|
| 38 | M-675000658 | Snap Collar |
$5.64 |
|
|
| 39 | M-675000352 | Hose Elastic Collar |
$3.42 |
|
|
| 40 | M-675000334 | Collar Clip |
$2.54 |
|
|
| 41 | M-675000371 | Strap Collar |
$1.93 |
|
|
| 42 | M-675000757 | Collar |
$1.24 |
|
|
| 43 | M-670005924 | Heating Water Pipe Retaining |
$2.72 |
|
|
| 44 | M-675000019 | Pipe Retaining Clip |
$1.18 |
|
|
| 45 | M-282370 | O-Ring |
$2.46 |
|
|
| 46 | M-675001916 | Collar |
$1.80 |
|
|
| 47 | M-302126 | Bracket Cpl. |
$9.42 |
|
|
| 48 | M-259508 | Clip |
$1.73 |
|
|
| 61 | M-291776 | Screw |
$3.94 |
|
|
| 62 | M-291771 | Screw |
$19.82 |
|
|
| 63 | M-280912 | Gasket (Crossover) |
$19.40 |
|
