The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

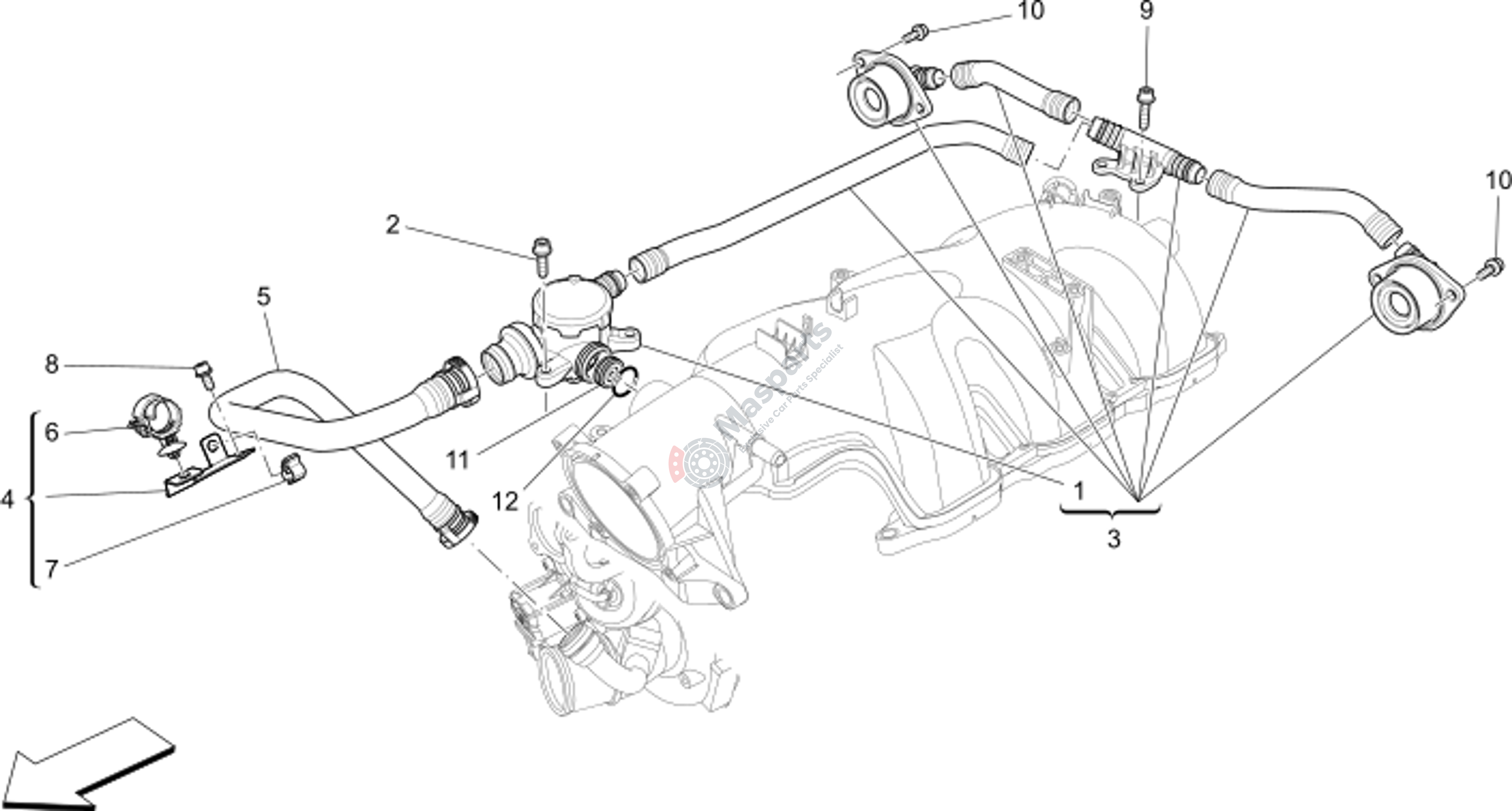

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-293162 | Valve |
$173.45 |
|
|
| 2 | M-231619 | Socket Head Screw With Washe |
$2.46 |
|
|
| 3 | M-300146 | Blow-By Cpl Pipes & Control |
$316.79 |
|
|
| 4 | M-326911 | Hose Support Bracket |
$29.42 |
|
|
| 5 | M-319586 | Blow-By Outlet Pipe From Com |
$69.60 |
|
|
| 6 | M-292123 | Clip |
$1.73 |
|
|
| 7 | M-226603 | Pipe Retaining Clip D.8 |
$2.46 |
|
|
| 8 | M-231616 | Screw |
$2.10 |
|
|
| 9 | M-231620 | Socket Head Screw With Washe |
$1.64 |
|
|
| 10 | M-231617 | Socket Head Screw With Washe |
$2.46 |
|
|
| 11 | M-304309 | Tight Spot Manifold Side |
$6.68 |
|
|
| 12 | M-130295 | O-R Gasket |
$2.39 |
|
