Diagram image not available

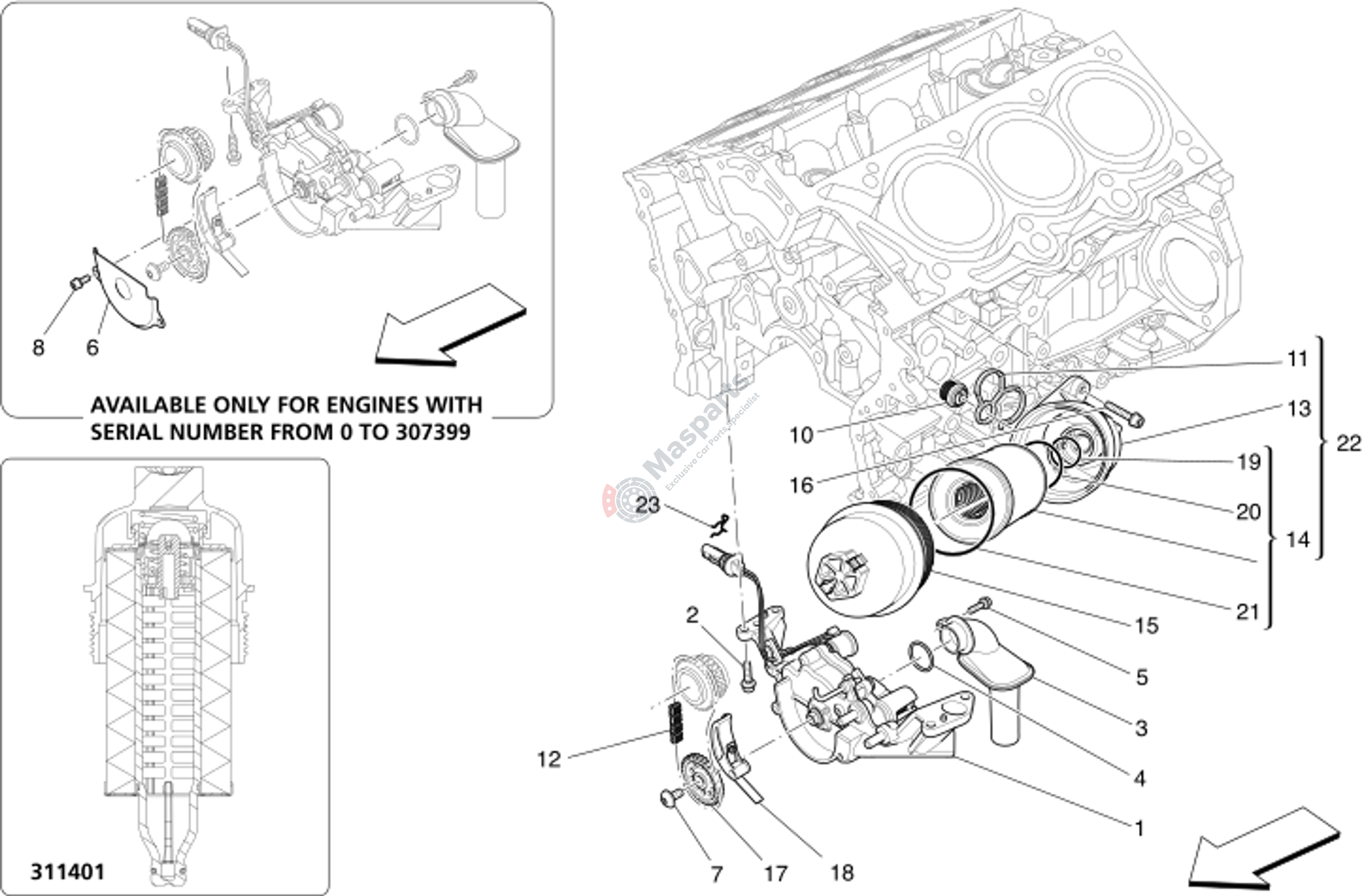

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-853065 | Oil Pump |
$496.69 |
|
|
| 2 | M-282397 | Screw |
$2.46 |
|
|
| 3 | M-338007 | Awd Oil Catching |
$32.64 |
|
|
| 4 | M-139934 | O Ring For Union To Oil T |
$3.08 |
|
|
| 5 | M-282397 | Screw |
$2.46 |
|
|
| 6 | M-275702 | Oil Pump Shield |
$10.86 |
|
|
| 7 | M-284021 | Screw |
$20.95 |
|
|
| 8 | M-282391 | Screw |
$3.95 |
|
|
| 10 | M-287292 | Oil Non-Return Valve |
$838.65 |
|
|
| 11 | M-289393 | Gasket |
$35.73 |
|
|
| 12 | M-328308 | Oil Pump Chain |
$28.59 |
|
|
| 13 | M-298937 | Oil Filter Support |
$118.26 |
|
|
| 14 | M-311401 | Oil Filter Cartridge With Cap |
$48.17 |
|
|
| 16 | M-231622 | Socket Head Screw With Washe |
$1.13 |
|
|
| 17 | M-276592 | Oil Pump Controm Toothed Whe |
$21.87 |
|
|
| 18 | M-276594 | Oil Pump Chain Tightener |
$16.60 |
|
|
| 19 | M-300526 | O-Ring D25X11 |
$3.08 |
|
|
| 20 | M-301565 | O-Ring (V6 Oil Filter Cartri |
$1.25 |
|
|
| 21 | M-673002892 | Oil Filter Cartridge O-Ring |
$21.28 |
|
|
| 22 | M-311356 | Cpl V6 Oil Filter Support (W |
$416.86 |
|
|
| 23 | M-304893 | Clip |
$2.73 |
|
