Diagram image not available

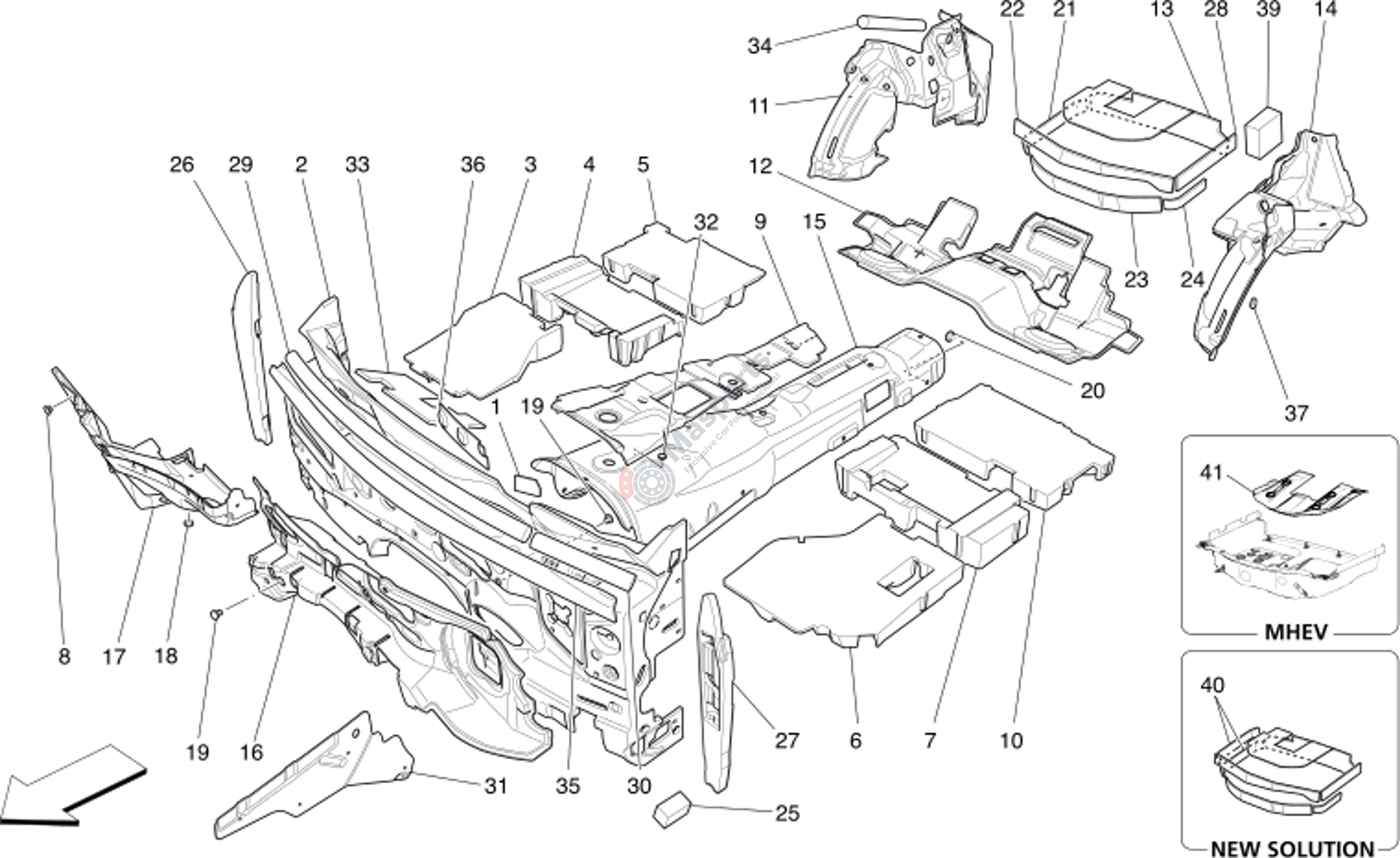

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675000151 | Seal Plug |
€1,46 |
|
|
| 4 | M-670038499 | Rh Central Support |
€40,63 |
|
|
| 5 | M-670038501 | Rh Rear Support |
€30,43 |
|
|
| 6 | M-670038496 | Lh Front Support |
€41,82 |
|
|
| 7 | M-670038498 | Lh Central Support |
€32,64 |
|
|
| 9 | M-670032150 | Tunnel Insulation |
€46,74 |
|
|
| 10 | M-670038500 | Lh Rear Support |
€26,52 |
|
|
| 11 | M-670032146 | Rh Rear Sound-Proof Material |
€81,51 |
|
|
| 13 | M-670107542 | Luggage Compartment Soundpro |
€8,37 |
|
|
| 14 | M-670032147 | Lh Rear Sound-Proof Material |
€80,59 |
|
|
| 15 | M-670035038 | Tunnel External Soundproofin |
€58,97 |
|
|
| 16 | M-670004556 | Engine Compartment Insulatio |
€70,29 |
|
|
| 17 | M-670102940 | Engine Compartment Upr Insul |
€50,05 |
|
|
| 18 | M-675000453 | Plate |
€1,42 |
|
|
| 20 | M-675000411 | Washer |
€3,13 |
|
|
| 21 | M-670033536 | Rh Rear Longitudinal Member |
€4,34 |
|
|
| 22 | M-670107541 | Spare Wheel Housing Front So |
€5,70 |
|
|
| 23 | M-670033538 | Spare Wheel Housing Lower Fr |
€6,62 |
|
|
| 24 | M-670107544 | Lh Rear Longitudinal Member |
€3,31 |
|
|
| 26 | M-670033522 | R.H. Insulation |
€23,55 |
|
|
| 27 | M-670033524 | L.H. Insulation |
€23,55 |
|
|
| 28 | M-670033540 | Lh Rear Longitudinal Member |
€4,13 |
|
|
| 29 | M-670100307 | Rh Side Dashboard Insulation |
€8,00 |
|
|
| 30 | M-670100306 | Lh Side Dashboard Insulation |
€8,00 |
|
|
| 31 | M-670030624 | Insulation |
€8,74 |
|
|
| 32 | M-675000679 | Sealing Plug 22Mm |
€9,02 |
|
|
| 33 | M-670161860 | Front Floor Insulation |
€13,71 |
|
|
| 34 | M-670039095 | Stuffer |
€11,22 |
|
|
| 35 | M-670039987 | Soundproof Panel Top Crossba |
€17,57 |
|
|
| 36 | M-670001855 | Lateral Soundproofing |
€1,86 |
|
|
| 37 | M-675000424 | Plug |
€7,45 |
|
|
| 39 | M-670039094 | Pad |
€11,59 |
|
|
| 41 | M-670156325 | Soundproofing Panel |
€7,73 |
|
