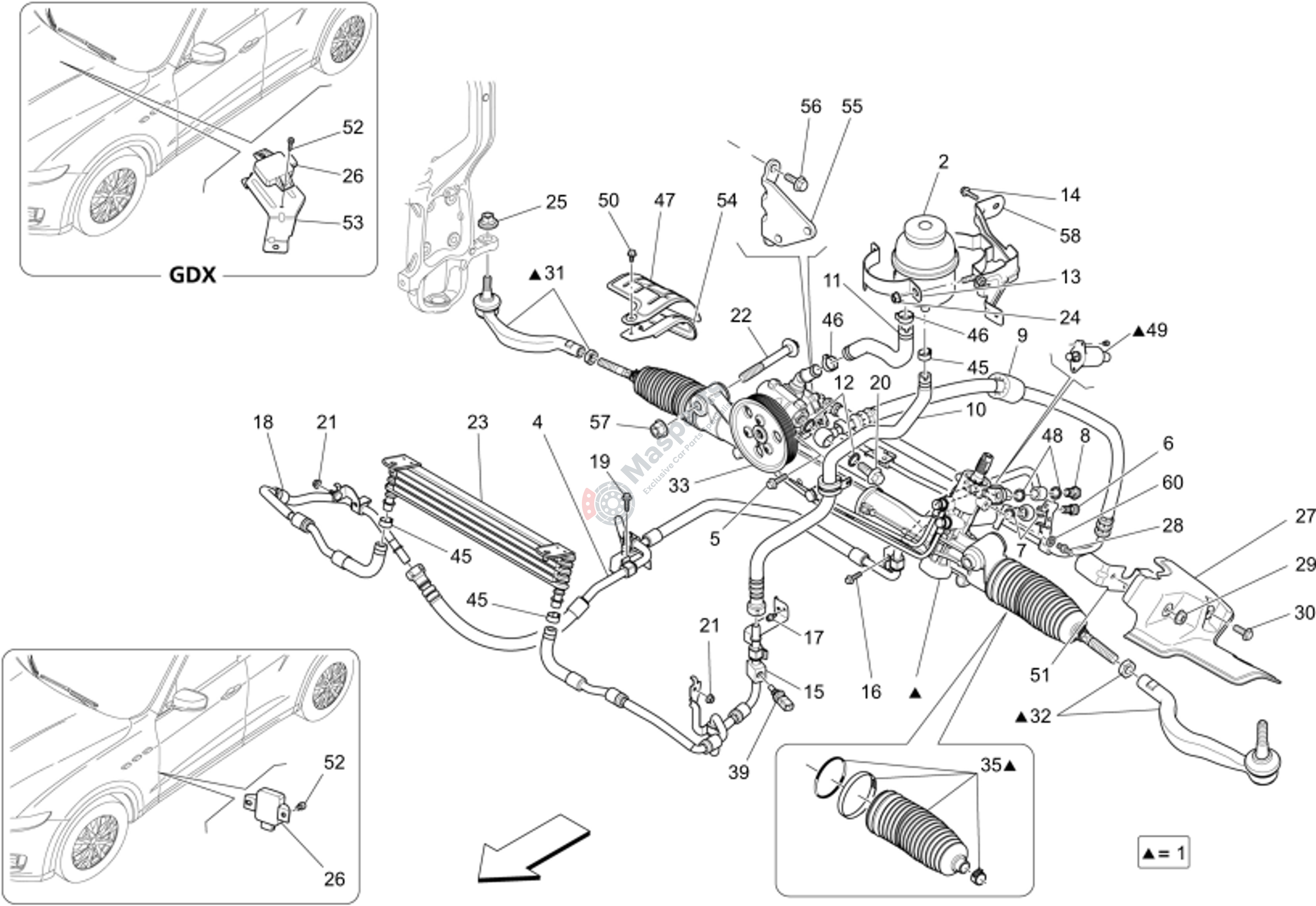

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673010888 | Lhd Steering Box M161 My17 |
$2,407.73 |
|
|
| 2 | M-670034911 | Steering Pump Tank |
$62.71 |
|
|
| 4 | M-670034137 | Pipe From Steering Box To Ex |
$149.37 |
|
|
| 5 | M-46328699 | Flange Bolt |
$2.85 |
|
|
| 6 | M-675000203 | Union |
$15.83 |
|
|
| 7 | M-675000152 | Gasket |
$1.60 |
|
|
| 8 | M-675000021 | Union |
$5.84 |
|
|
| 9 | M-670039861 | Power Steering Pipe |
$270.55 |
|
|
| 10 | M-670039859 | Exchanger Outlet Rigid Pipe |
$59.85 |
|
|
| 11 | M-670039860 | Pipe |
$23.78 |
|
|
| 12 | M-675000691 | Seal 16X22X1.5 |
$1.93 |
|
|
| 13 | M-670008978 | Bracket Flange |
$13.55 |
|
|
| 14 | M-675000278 | Screw |
$1.50 |
|
|
| 15 | M-670034153 | Exchanger Outlet Rigid Pipe |
$239.55 |
|
|
| 16 | M-675000278 | Screw |
$1.50 |
|
|
| 17 | M-675000308 | Screw |
$1.59 |
|
|
| 18 | M-670034150 | Exchanger Inlet Rigid Pipe |
$57.55 |
|
|
| 19 | M-675000278 | Screw |
$1.50 |
|
|
| 20 | M-675000692 | Union |
$3.15 |
|
|
| 22 | M-670001945 | Screw |
$8.70 |
|
|
| 23 | M-670030735 | Exchanger Heat Air/Oil |
$315.65 |
|
|
| 24 | M-670030742 | Nut |
$1.46 |
|
|
| 25 | M-675000127 | Nut |
$2.13 |
|
|
| 26 | M-670039154 | Power Steering Ecu |
$194.21 |
|
|
| 28 | M-670005277 | Screw |
$7.45 |
|
|
| 30 | M-675000088 | Screw |
$2.54 |
|
|
| 31 | M-673004615 | Cpl Outer Ball Joint Kit Rh |
$84.18 |
|
|
| 32 | M-673004614 | Cpl Outer Ball Joint Kit Lh |
$101.46 |
|
|
| 33 | M-326403 | Hydraulic Steering Pump |
$2,483.83 |
|
|
| 35 | M-673004613 | Bellow |
$42.64 |
|
|
| 39 | M-670005736 | Temperature Sensor |
$18.31 |
|
|
| 45 | M-675000266 | Hose Fastening Collar |
$2.22 |
|
|
| 46 | M-675000658 | Snap Collar |
$5.39 |
|
|
| 47 | M-670006581 | 4X4 Rack Steering Box Heat S |
$36.22 |
|
|
| 48 | M-675000250 | Washer 12X18X1 |
$1.36 |
|
|
| 49 | M-673001466 | Solenoid |
$255.21 |
|
|
| 50 | M-675000088 | Screw |
$2.54 |
|
|
| 51 | M-670005854 | Bracket |
$10.76 |
|
|
| 52 | M-675000454 | Screw |
$1.47 |
|
|
| 54 | M-670005772 | Lhd Cpl Bracket |
$71.64 |
|
|
| 55 | M-46328830 | Hydraulic Pump Support Brack |
$47.18 |
|
|
| 56 | M-46328697 | Flange Bolt |
$2.13 |
|
|
| 57 | M-675000148 | Nut |
$2.42 |
|
|
| 58 | M-670039858 | Tank Bracket |
$65.04 |
|
|
| 60 | M-675000106 | Washer |
$1.57 |
|
