Diagram image not available

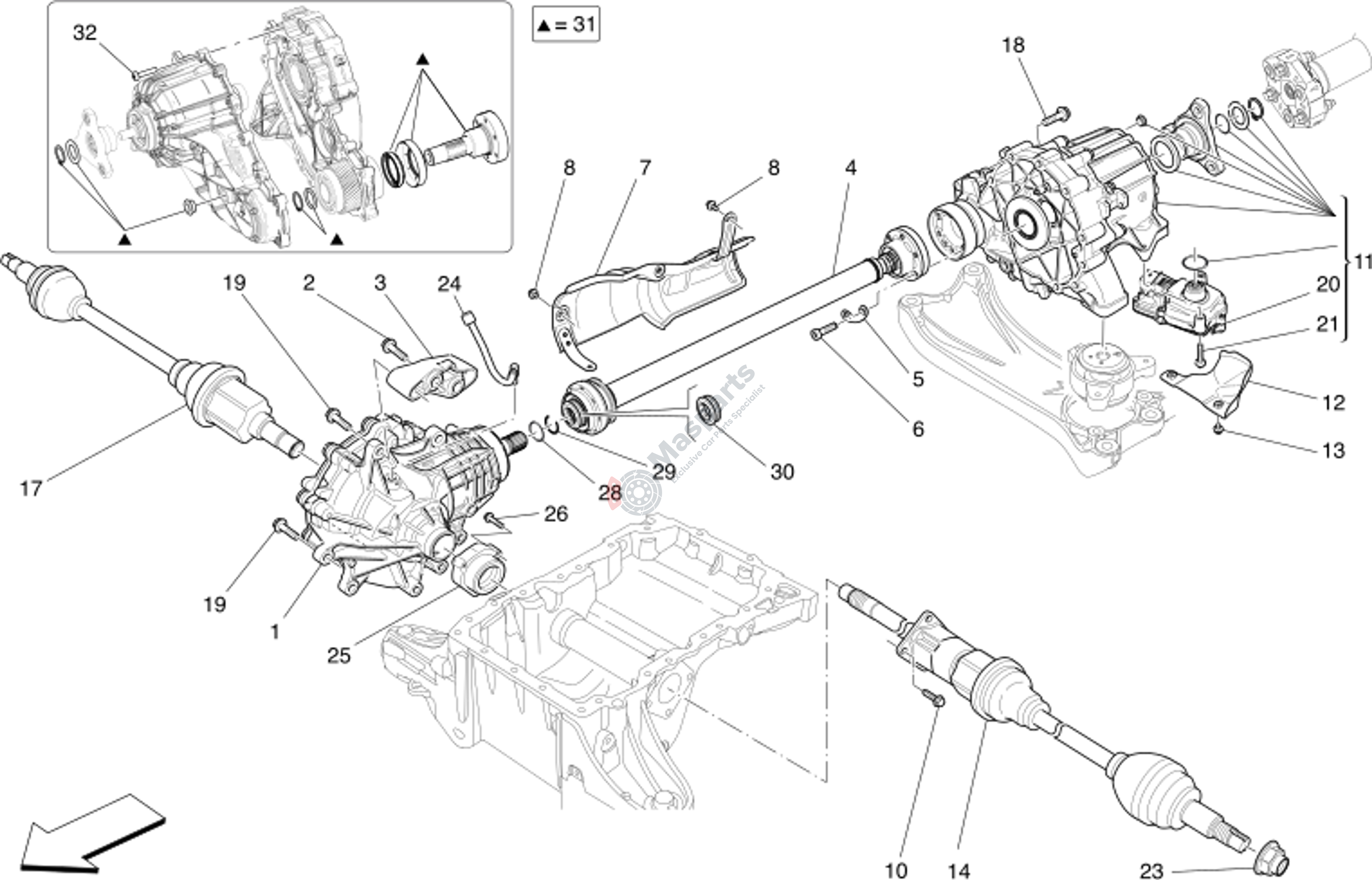

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670033029 | Front Differential |
$1,986.86 |
|
|
| 2 | M-675000385 | Screw |
$3.69 |
|
|
| 3 | M-670032181 | Bracket |
$83.14 |
|
|
| 5 | M-670003772 | Plate |
$3.73 |
|
|
| 6 | M-675000583 | Screw |
$2.46 |
|
|
| 7 | M-670033030 | Heat Shield |
$33.54 |
|
|
| 8 | M-675000102 | Screw |
$2.67 |
|
|
| 10 | M-675000384 | Screw |
$5.16 |
|
|
| 11 | M-670152726 | All Wheel Drive Transfer Cas |
$4,543.52 |
|
|
| 14 | M-670175272 | Front Lh Axle Shaft Assembly |
$782.41 |
|
|
| 17 | M-670301923 | Semiasse Compl. Asse Ant. Dx |
$733.51 |
|
|
| 18 | M-675000386 | Screw |
$3.75 |
|
|
| 19 | M-675000385 | Screw |
$3.69 |
|
|
| 20 | M-670105823 | Ecu Tc Module |
$711.19 |
|
|
| 21 | M-673009049 | Hexalobular Screw |
$5.74 |
|
|
| 23 | M-675000138 | Nut |
$9.03 |
|
|
| 24 | M-670033033 | Front Diff. Vent Pipe Cmbds+ |
$28.89 |
|
|
| 25 | M-46328814 | Axle Support |
$213.13 |
|
|
| 26 | M-46328688 | Flange Bolt |
$3.08 |
|
|
| 28 | M-673008007 | O-Ring |
$5.22 |
|
|
| 29 | M-673008008 | Snap-Ring |
$5.63 |
|
