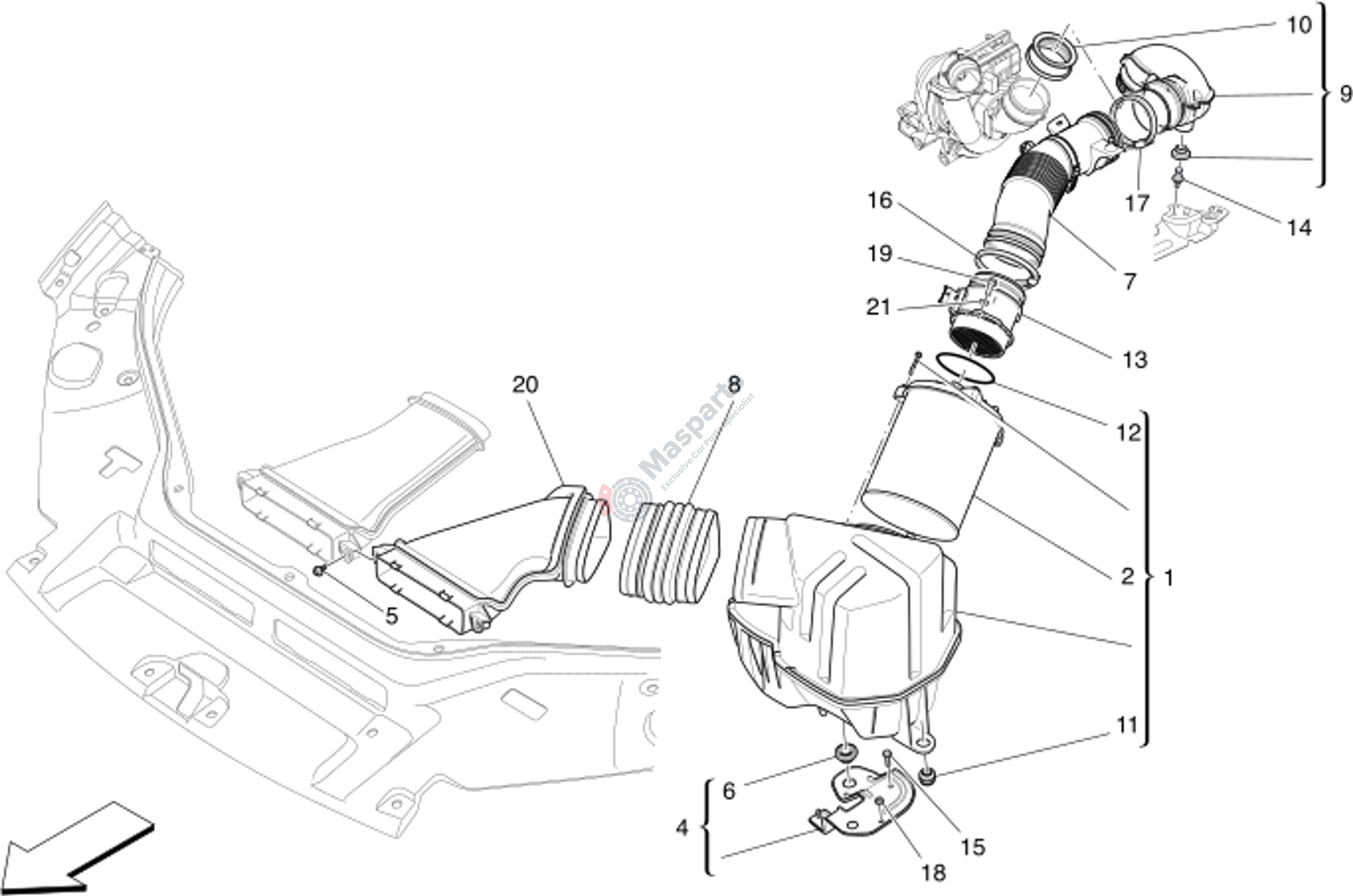

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670033791 | Air Filter Box Assembly |
$176.37 |
|
|
| 2 | M-670004604 | Diesel Air Filter |
$79.73 |
|
|
| 4 | M-670006753 | Filter Bracket |
$28.92 |
|
|
| 5 | M-675000776 | Screw |
$2.14 |
|
|
| 6 | M-675000018 | Rubber Bushing |
$5.03 |
|
|
| 7 | M-670033792 | Clean Air Intake Sleeve - Fl |
$80.56 |
|
|
| 8 | M-670004599 | Dirty Air Sleeve |
$37.51 |
|
|
| 9 | M-670106061 | Clean Air Sleeve - Second Se |
$245.73 |
|
|
| 10 | M-670007158 | Gasket |
$49.55 |
|
|
| 11 | M-675000284 | Flexible Pad |
$10.83 |
|
|
| 12 | M-675000329 | O.R. Gasket |
$3.13 |
|
|
| 13 | M-670005091 | Flowmeter |
$220.55 |
|
|
| 14 | M-675000394 | Pin |
$4.19 |
|
|
| 15 | M-675000504 | Screw |
$1.13 |
|
|
| 16 | M-675000501 | Collar |
$4.72 |
|
|
| 17 | M-675000476 | Hose Fastening Collar |
$2.81 |
|
|
| 18 | M-14059214 | Nut |
$1.29 |
|
|
| 19 | M-675000826 | Hex Head Screw |
$1.37 |
|
|
| 20 | M-670033793 | Upper Lh Air Intake Sleeve |
$32.98 |
|
|
| 21 | M-675000825 | Washer |
$1.67 |
|
