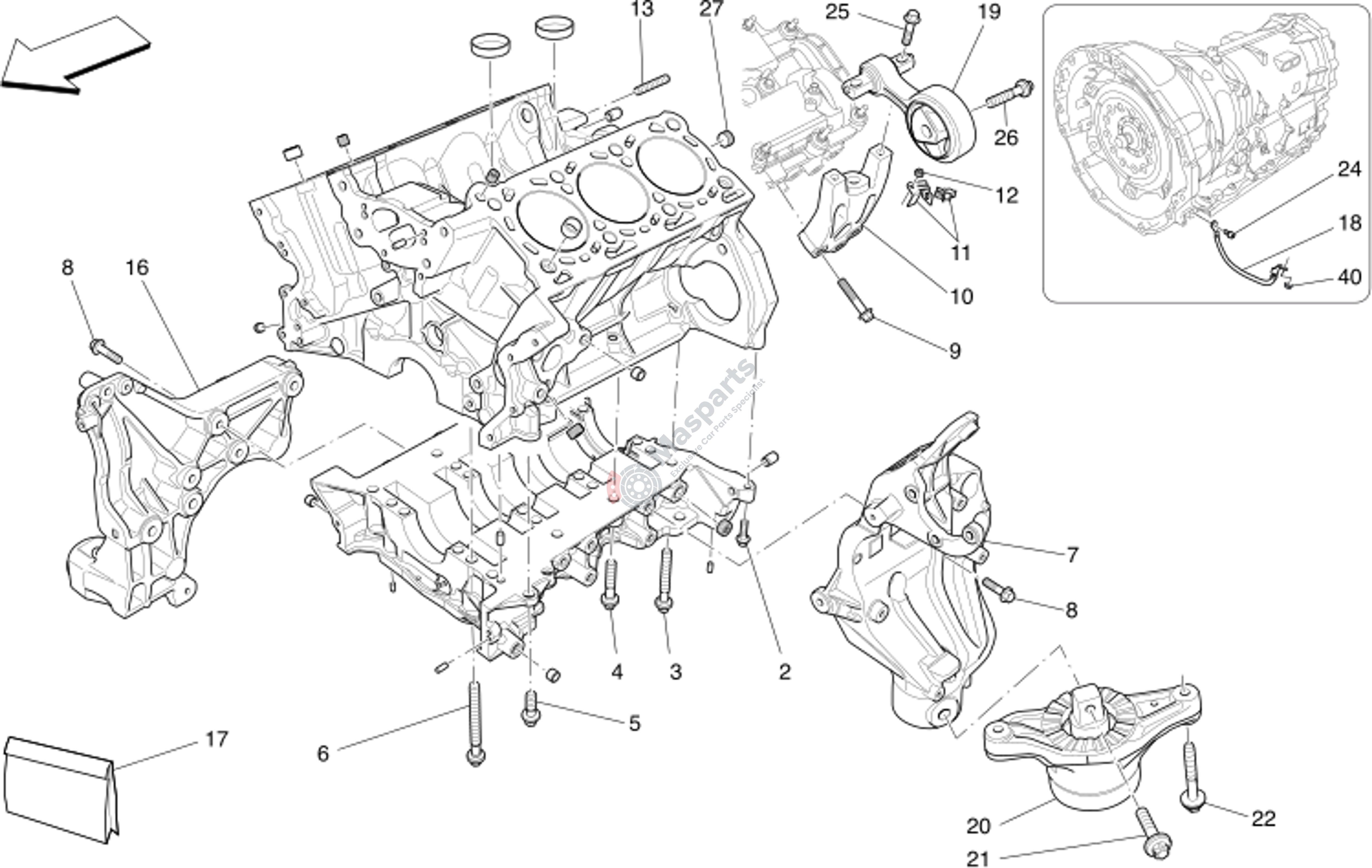

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-46328701 | Flange Bolt |
$3.71 |
|
|
| 3 | M-46328083 | Screw |
$11.45 |
|
|
| 4 | M-46328082 | Screw |
$9.54 |
|
|
| 5 | M-46328084 | Screw |
$12.09 |
|
|
| 6 | M-46328081 | Screw |
$12.72 |
|
|
| 7 | M-46328822 | Support Bracket |
$1,064.54 |
|
|
| 8 | M-46328720 | M10X60 Screw |
$5.73 |
|
|
| 9 | M-46328719 | Flange Bolt |
$4.03 |
|
|
| 10 | M-46328132 | Rod Bracket |
$322.33 |
|
|
| 11 | M-46328794 | Pipe Bracket |
$30.10 |
|
|
| 12 | M-673001154 | Flange Nut |
$1.53 |
|
|
| 13 | M-46328349 | Stud |
$4.56 |
|
|
| 16 | M-46328820 | Support Bracket |
$1,098.47 |
|
|
| 17 | M-673000963 | Plugs And Pins Kit For Crank |
$135.72 |
|
|
| 18 | M-670007404 | Ground Cable For Engine-Fram |
$183.36 |
|
|
| 19 | M-670004297 | High Connecting Rod |
$96.02 |
|
|
| 20 | M-670003628 | Rh Engine Bushing |
$329.75 |
|
|
| 21 | M-670038507 | Special Screw |
$5.77 |
|
|
| 22 | M-670035588 | Fastening Screw |
$9.62 |
|
|
| 24 | M-675000383 | Screw |
$1.22 |
|
|
| 25 | M-675000252 | Screw |
$5.25 |
|
|
| 26 | M-675000146 | Screw |
$5.83 |
|
|
| 27 | M-46328351 | Seal Plug |
$3.71 |
|
|
| 40 | M-675000505 | Nut |
$3.02 |
|
