The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

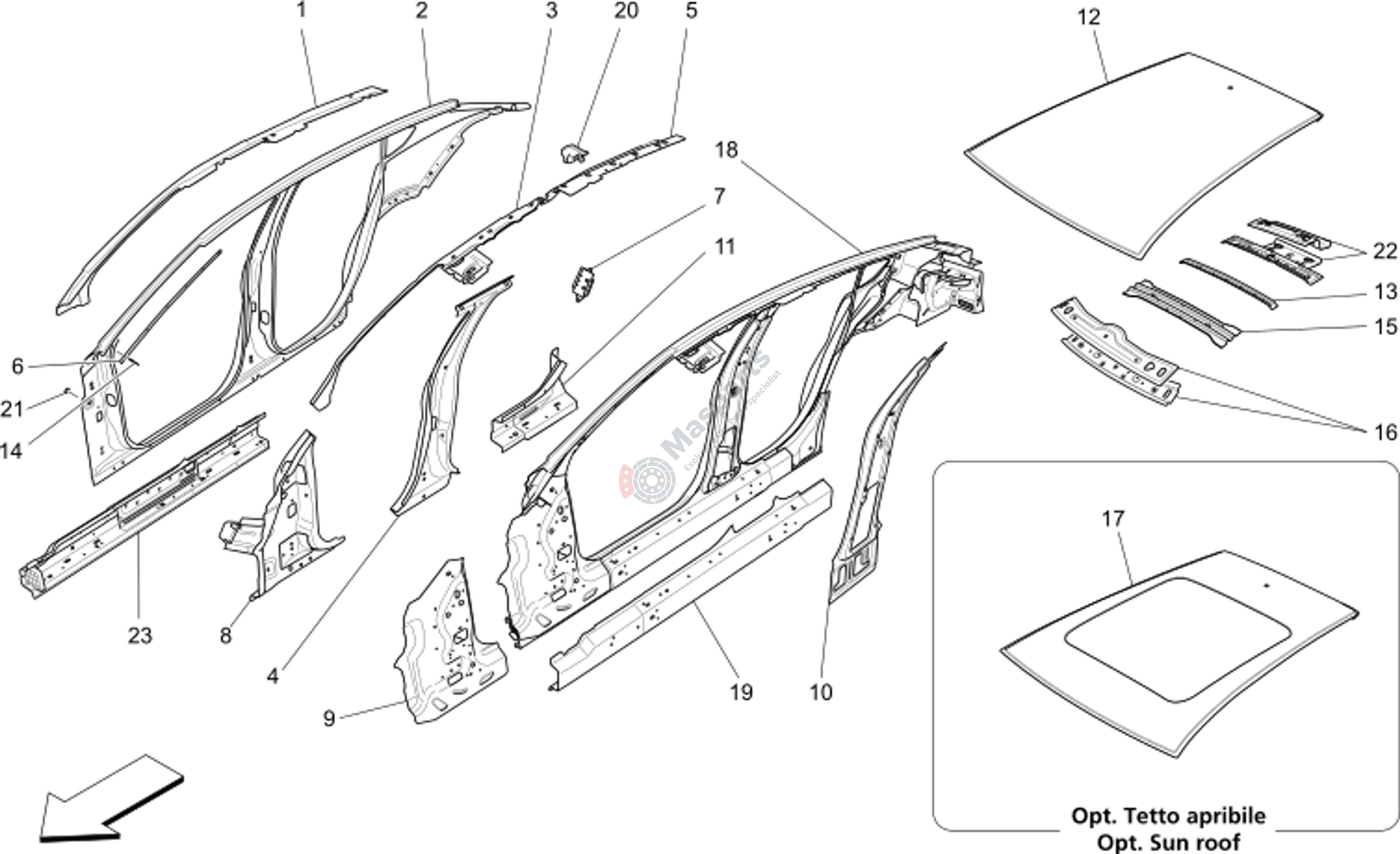

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673006978 | Rh Front Pillar Member Reinf |
€256,70 |
|
|
| 2 | M-673008249 | Rh External Body Side Assemb |
€2.019,66 |
|
|
| 3 | M-673006976 | Rh Front Pillar Side Rail As |
€127,50 |
|
|
| 4 | M-673006979 | Rh Central Pillar Reinforcem |
€432,65 |
|
|
| 5 | M-673006974 | Rh Rear Upper Side Rail Asse |
€146,20 |
|
|
| 7 | M-673005637 | Rh Rear Door Striker Plate C |
€21,68 |
|
|
| 8 | M-673005639 | Rh Front Pillare Reinforceme |
€327,25 |
|
|
| 9 | M-673005650 | Rh Internal Body Side Frame |
€102,85 |
|
|
| 10 | M-673006982 | Rh Central Pillar Frame |
€212,50 |
|
|
| 11 | M-673005643 | Rh B-Pillar Lower Framework |
€91,63 |
|
|
| 12 | M-673007935 | Ext Roofpanel Cover |
€437,00 |
|
|
| 13 | M-673005646 | Central Cross Member |
€42,67 |
|
|
| 14 | M-670105701 | Rivet |
€1,88 |
|
|
| 15 | M-673005647 | Central Cross Member |
€56,36 |
|
|
| 16 | M-673005648 | Windscreen Upper Cross Membe |
€80,50 |
|
|
| 17 | M-673007936 | Ext Roof Panel Cover (399+) |
€637,56 |
|
|
| 18 | M-673007238 | Cpl Rh Body Side Framing |
€1.187,45 |
|
|
| 19 | M-673005652 | Rh Side Member Assembly |
€295,80 |
|
|
| 20 | M-670034917 | R.H. Diaphragm |
€13,52 |
|
|
| 21 | M-670031350 | Plug |
€4,49 |
|
|
| 22 | M-673005654 | Rear Cross Member |
€69,19 |
|
|
| 23 | M-673006847 | Rh Reinforcement |
€264,35 |
|
