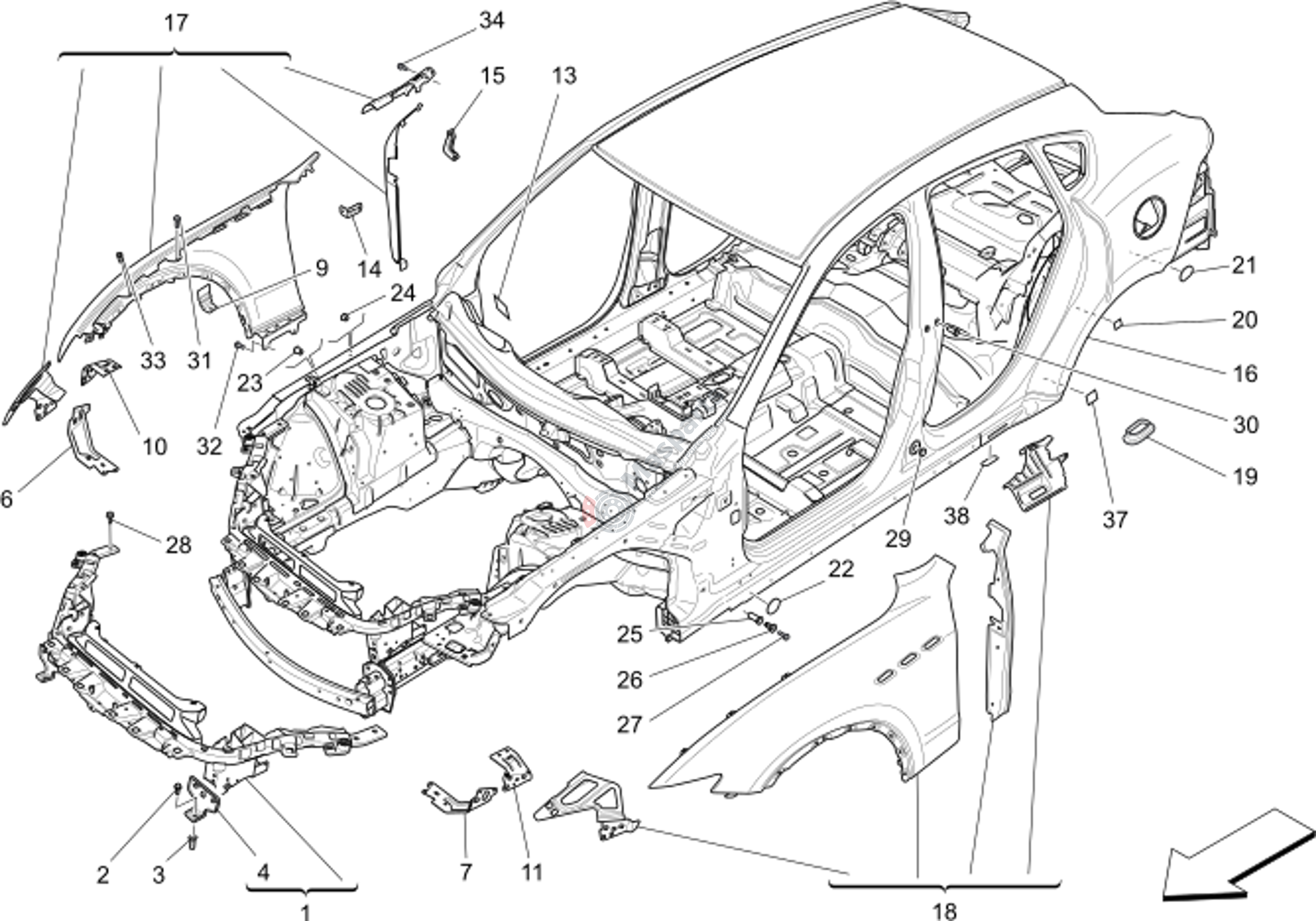

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670032664 | Front Crossmember Cpl |
$661.63 |
|
|
| 2 | M-670037048 | Hex Flange Screw M8X35 |
$2.86 |
|
|
| 3 | M-670002185 | Rivet |
$2.90 |
|
|
| 4 | M-670034074 | Bracket |
$15.43 |
|
|
| 6 | M-673005621 | Rh Mudguard Support Bracket |
$15.43 |
|
|
| 7 | M-673005622 | Lh Mudguard Support Bracket |
$15.43 |
|
|
| 9 | M-670034857 | Fender Bracket |
$25.09 |
|
|
| 10 | M-673005623 | Rh Mudguard Front Lower Rein |
$40.75 |
|
|
| 11 | M-673005624 | Lh Mudguard Front Lower Rein |
$26.87 |
|
|
| 13 | M-675000747 | Protection |
$3.08 |
|
|
| 14 | M-670034983 | Mudguard Side Bracket |
$3.61 |
|
|
| 15 | M-673005626 | Rh Mudguard Central Mounting |
$14.18 |
|
|
| 17 | M-673005578 | Cpl Rh Front Fender |
$643.48 |
|
|
| 18 | M-673005579 | Cpl Lh Front Fender |
$643.48 |
|
|
| 19 | M-675000415 | Plug |
$3.97 |
|
|
| 20 | M-675000743 | Cover |
$2.94 |
|
|
| 21 | M-670005230 | Plug |
$3.10 |
|
|
| 22 | M-675000744 | Adhesive Tape |
$1.41 |
|
|
| 23 | M-670003669 | Rivet |
$2.14 |
|
|
| 24 | M-670005411 | Rivet |
$1.67 |
|
|
| 25 | M-670005223 | Rivet |
$22.12 |
|
|
| 26 | M-670006065 | Adjustable Insert |
$5.57 |
|
|
| 27 | M-670005287 | M6 Bolt |
$2.41 |
|
|
| 28 | M-670037048 | Hex Flange Screw M8X35 |
$2.86 |
|
|
| 29 | M-675000244 | Plug |
$0.96 |
|
|
| 30 | M-675000715 | Nutserts |
$1.67 |
|
|
| 31 | M-675000588 | Screw |
$0.99 |
|
|
| 32 | M-670005287 | M6 Bolt |
$2.41 |
|
|
| 33 | M-675000686 | Rivet |
$1.17 |
|
|
| 34 | M-675000605 | Screw |
$0.96 |
|
|
| 37 | M-675000745 | Adhesive Tape |
$1.53 |
|
|
| 38 | M-670036842 | Cap |
$1.10 |
|
