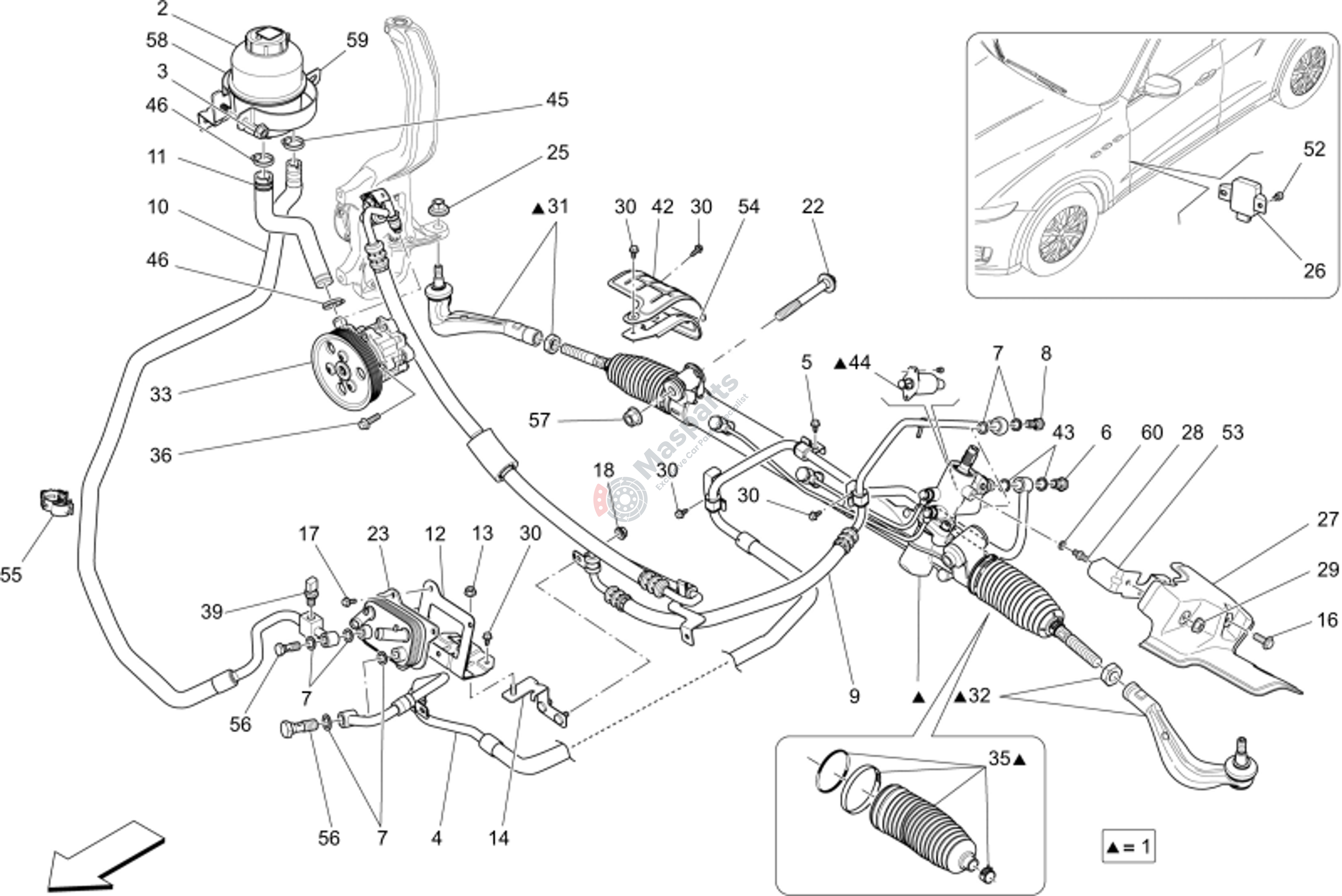

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673010888 | Lhd Steering Box M161 My17 |
$2,468.30 |
|
|
| 2 | M-670034911 | Steering Pump Tank |
$64.29 |
|
|
| 3 | M-670030742 | Nut |
$1.50 |
|
|
| 4 | M-670032097 | Steering Pump Hose |
$166.61 |
|
|
| 5 | M-670030742 | Nut |
$1.50 |
|
|
| 6 | M-675000203 | Union |
$16.22 |
|
|
| 7 | M-675000250 | Washer 12X18X1 |
$1.39 |
|
|
| 8 | M-675000021 | Union |
$5.98 |
|
|
| 9 | M-670032094 | Pipe Between Steering Rack A |
$183.94 |
|
|
| 10 | M-670032095 | Pipe Between Reservoir And H |
$125.20 |
|
|
| 11 | M-670032096 | Steering Pump Hose |
$27.25 |
|
|
| 12 | M-670032098 | Heat Exchanger Bracket |
$12.88 |
|
|
| 13 | M-670030742 | Nut |
$1.50 |
|
|
| 14 | M-670035662 | Pipe Bracket |
$5.78 |
|
|
| 16 | M-675000088 | Screw |
$2.61 |
|
|
| 17 | M-675000087 | Screw |
$3.50 |
|
|
| 22 | M-670001945 | Screw |
$8.92 |
|
|
| 23 | M-670031618 | Power Steering Fluid/Water H |
$148.31 |
|
|
| 25 | M-675000127 | Nut |
$2.19 |
|
|
| 26 | M-670039153 | Power Steering Control Unit |
$165.74 |
|
|
| 27 | M-670001946 | Steering Box Guard |
$422.16 |
|
|
| 28 | M-670005277 | Screw |
$7.64 |
|
|
| 30 | M-675000088 | Screw |
$2.61 |
|
|
| 31 | M-673004615 | Cpl Outer Ball Joint Kit Rh |
$86.30 |
|
|
| 32 | M-673004614 | Cpl Outer Ball Joint Kit Lh |
$104.01 |
|
|
| 33 | M-326403 | Hydraulic Steering Pump |
$2,546.30 |
|
|
| 35 | M-673004613 | Bellow |
$43.71 |
|
|
| 36 | M-231629 | Socket Head Screw With Washe |
$2.41 |
|
|
| 39 | M-670005736 | Temperature Sensor |
$18.77 |
|
|
| 42 | M-670006581 | 4X4 Rack Steering Box Heat S |
$37.13 |
|
|
| 43 | M-675000152 | Gasket |
$1.64 |
|
|
| 44 | M-673001466 | Solenoid |
$261.63 |
|
|
| 45 | M-675000266 | Hose Fastening Collar |
$2.28 |
|
|
| 46 | M-675000658 | Snap Collar |
$5.53 |
|
|
| 52 | M-675000454 | Screw |
$1.51 |
|
|
| 53 | M-670005854 | Bracket |
$11.04 |
|
|
| 54 | M-670005772 | Lhd Cpl Bracket |
$73.44 |
|
|
| 55 | M-670009151 | Steering Pipe Clip |
$1.50 |
|
|
| 56 | M-670031619 | Nut |
$12.52 |
|
|
| 57 | M-675000148 | Nut |
$2.48 |
|
|
| 58 | M-670035664 | Tank Bracket |
$8.92 |
|
|
| 59 | M-670035663 | Tank Bracket |
$15.82 |
|
|
| 60 | M-675000106 | Washer |
$1.61 |
|
