Diagram image not available

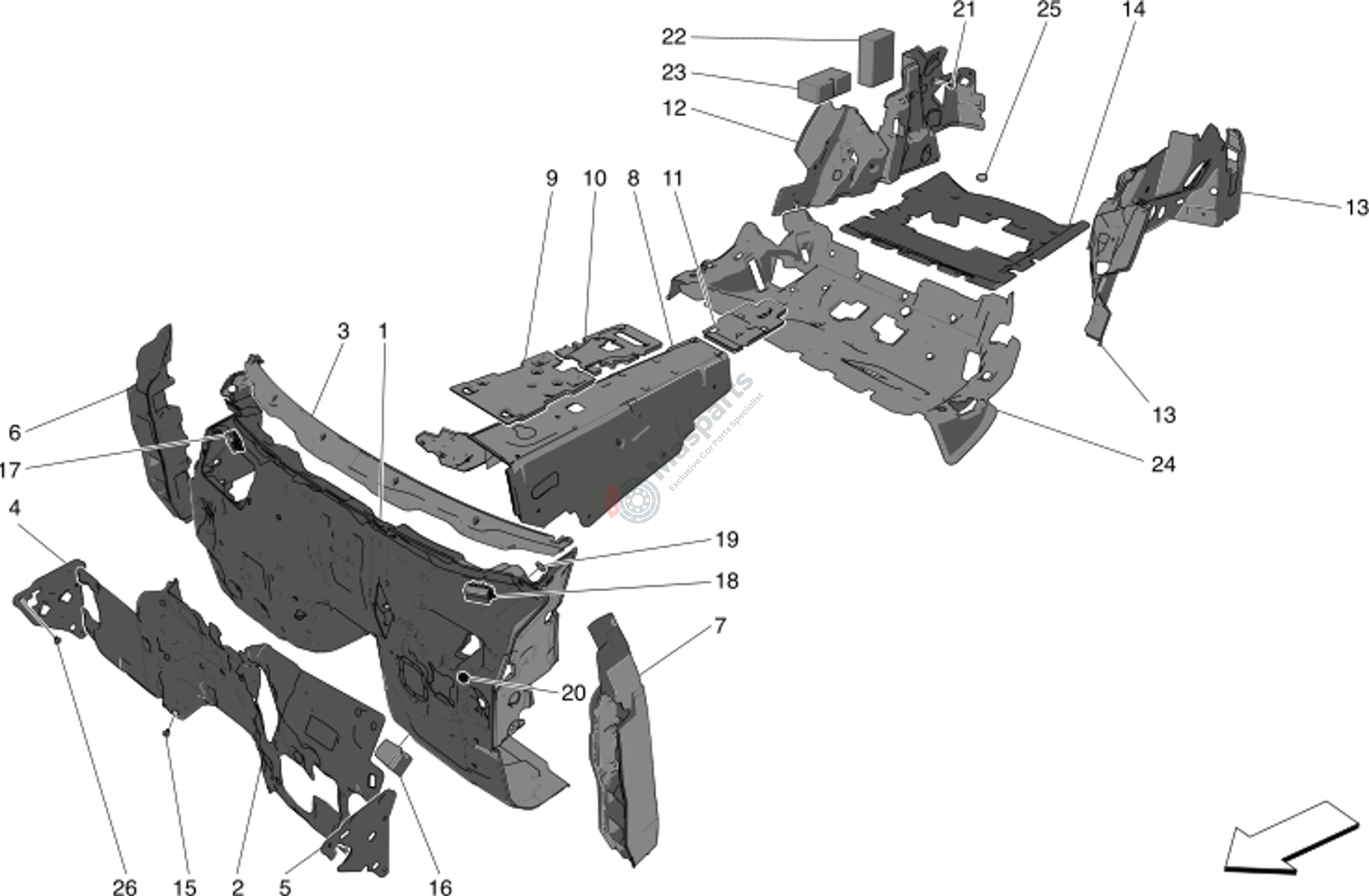

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670182441 | Dashboard Insulationv Gsx |
$196.71 |
|
|
| 2 | M-670158096 | Engine Compartment Insulatio |
$46.79 |
|
|
| 3 | M-670158049 | Dashboard Insulation |
$79.44 |
|
|
| 4 | M-670158099 | Insulation |
$23.26 |
|
|
| 5 | M-670158100 | Insulation |
$23.26 |
|
|
| 6 | M-670157929 | Front Right Mudguard Guard |
$20.78 |
|
|
| 7 | M-670157933 | Front Left Mudguard Guard |
$20.78 |
|
|
| 8 | M-670158098 | Soundproofing |
$54.78 |
|
|
| 9 | M-675001721 | Insulation |
$16.22 |
|
|
| 10 | M-675001720 | Central Tunnel Insulation |
$20.30 |
|
|
| 11 | M-670181824 | Post Tunnel Insulation |
$23.26 |
|
|
| 12 | M-670158054 | Insulation |
$29.92 |
|
|
| 13 | M-670158056 | Insulation |
$33.36 |
|
|
| 14 | M-670157928 | Insulation |
$44.08 |
|
|
| 15 | M-675001689 | Fastening Button |
$2.10 |
|
|
| 17 | M-675001760 | Closing Cap |
$35.97 |
|
|
| 18 | M-675001763 | Closing Cap |
$35.97 |
|
|
| 19 | M-675000684 | Fastening Button |
$1.71 |
|
|
| 20 | M-675000411 | Washer |
$3.65 |
|
|
| 22 | M-675001607 | Cap |
$19.88 |
|
|
| 23 | M-675001710 | Cap |
$15.07 |
|
|
| 26 | M-675001644 | Fastening Button |
$2.34 |
|
