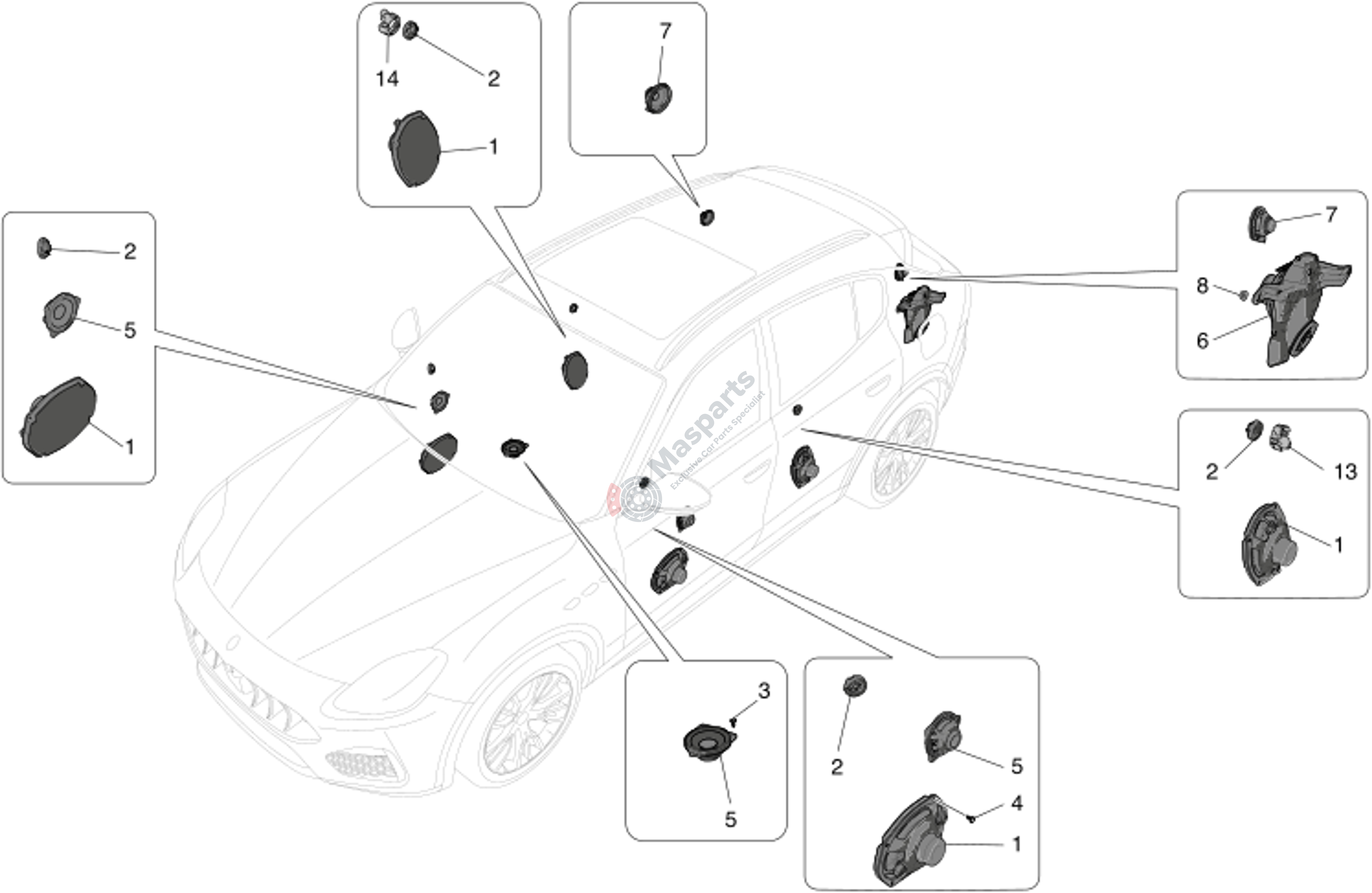

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670157531 | Midwoofer |
$99.76 |
|
|
| 2 | M-670157532 | Tweeter Speaker |
$79.29 |
|
|
| 3 | M-675001491 | Screw |
$0.99 |
|
|
| 4 | M-675001611 | Screw |
$0.80 |
|
|
| 5 | M-670157540 | Midrange Speaker |
$67.68 |
|
|
| 6 | M-670157537 | Subwoofer |
$547.72 |
|
|
| 7 | M-670161026 | Mid-Woofer Loudspeaker |
$135.95 |
|
|
| 8 | M-675001063 | Nut |
$1.23 |
|
|
| 13 | M-673014505 | Tweeter Bracket Premium Lh |
$5.21 |
|
|
| 14 | M-673014504 | Tweeter Bracket Premium Rh |
$5.21 |
|
