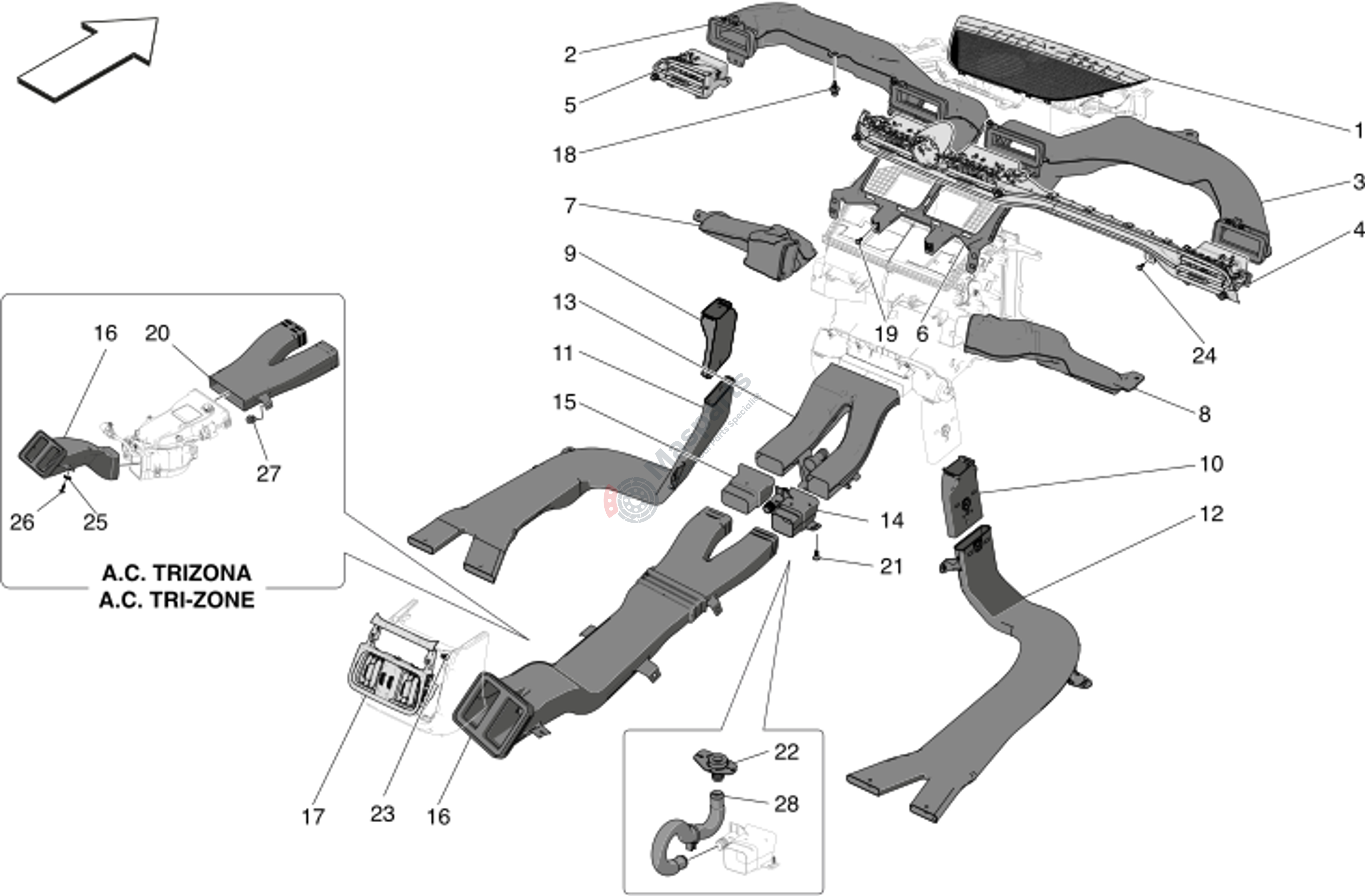

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-670175768 | Air Duct |
$56.73 |
|
|
| 3 | M-670175767 | Rh Side Air Duct Assembly |
$56.73 |
|
|
| 6 | M-670175769 | Connector Hvac Module |
$20.70 |
|
|
| 7 | M-670179031 | Air Duct |
$31.70 |
|
|
| 8 | M-670179029 | Air Duct |
$31.70 |
|
|
| 9 | M-670178054 | Lh Floor Duct |
$10.26 |
|
|
| 10 | M-670178055 | Rh Floor Duct |
$10.26 |
|
|
| 11 | M-670178049 | Rear Lh Air Duct Three-Zone |
$25.57 |
|
|
| 12 | M-670156575 | Rear Rh Air Duct |
$19.33 |
|
|
| 13 | M-675002041 | Air Duct |
$20.61 |
|
|
| 14 | M-670178982 | Air Duct |
$6.27 |
|
|
| 15 | M-670176401 | Distance |
$8.66 |
|
|
| 16 | M-670174698 | Air Duct |
$66.91 |
|
|
| 18 | M-675000294 | Pin |
$2.47 |
|
|
| 19 | M-675001491 | Screw |
$0.99 |
|
|
| 20 | M-670174694 | Air Duct |
$40.48 |
|
|
| 21 | M-675001050 | Screw |
$1.40 |
|
|
| 22 | M-670179025 | Air Duct |
$6.55 |
|
|
| 23 | M-675001049 | Screw |
$1.10 |
|
|
| 24 | M-670035714 | Fastening Screw |
$2.07 |
|
|
| 25 | M-675001674 | Fastening Clip |
$1.14 |
|
|
| 26 | M-675001050 | Screw |
$1.40 |
|
|
| 27 | M-675000053 | Rivet |
$1.90 |
|
|
| 28 | M-670179043 | Air Duct |
$31.70 |
|
